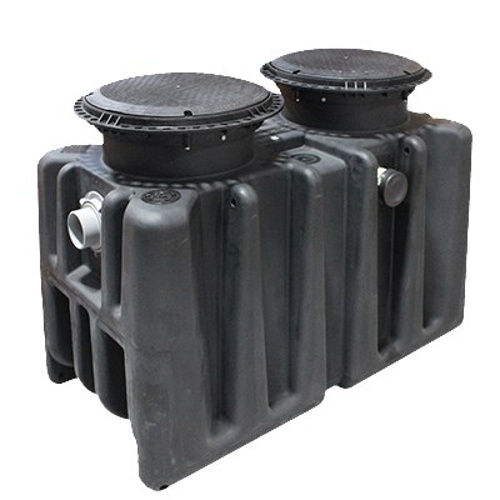

Grease Trap Canplas Endura 559 LBS 75 GPM 4" Inlet XL 75 4075A04

Grease Trap Canplas Endura XL75 559 LBS 75 GPM 4" Inlet (4075A04)

FREE FREIGHT IN THE LOWER 48

Endura® XL75 Grease Interceptor, 75 GPM, access covers CSA rated for traffic load in excess of 20,000 lbs., max burial depth 72” from the top of the tank, 559 lbs. grease capacity, airtight & watertight cover/frame/adjustable riser system, inlet baffle flow control access in service, 160°F (71°C) operating temperature, remote pump ready, manual lifting points, solid retention area, = 98% grease separation efficiency, 4” inlet/outlet, UPC, MASS Approved, PDI Certified, NSF

Description

- 559lb Grease Capacity
– 99% Efficiency
- Dynamic Inlet Baffle – Internal flow Control Included

• Optional External flow control (PDI G101)
• Seamless Tank – Rotationally moulded using up to 100% recompounded material
• Dual Access Covers -Traffic Rated (CSA B481.1 Type ‘S’) Rated in excess of 20,000lb
• Airtight/Watertight cover, frame and adjustable riser system
• Limited Lifetime Warranty

Connection Size:
Inlet - 4”
Outlet – 4”
Outlet (Side) – 4” SDR35 Sewer
Connected using mechanical joint couplings allowing for use of various piping materials.
Consult local code for connection format compliance.

• Flow Rate (GPM): 75
• Flow Rate (L/Sec): 4.74
• Capacity:  Lbs (MIN) 150 / Kg (MIN) 91
• Capacity (Actual - ASME A112.4.3): 559 Lbs / 253 Kg
• Solids Capacity Lbs (Kg) estimated: 260lbs (118kg) 45 Gallons
• Average Efficiency % (ASME A112.4.3): 98%
• Operating Temperature Capabilities (Intermittent discharge): 160° F (71°C)
• Cover Load Capacity (Third Party Tested): 20,000 lbs (9072 kgs)
• Unit Weight Capacity (Empty): 233 lbs (106 kgs)
• Liquid Capacity: 158 gal (598L)
• Connection size (mechanical): 4"

*Recess Extension Risers are available.

SEE SPEC SHEET MANUFACTURER WEB-SITE LINK BELOW
