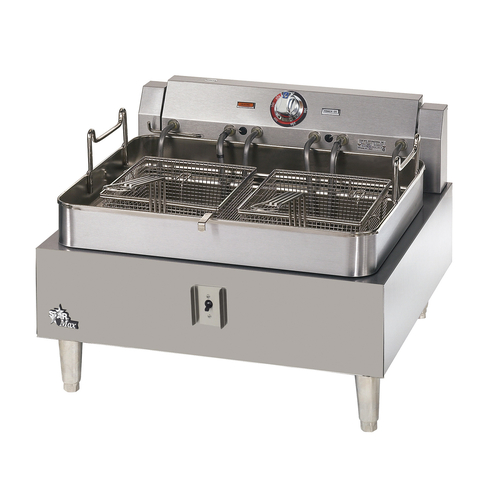

Star 530FF Star-Max® Electric Countertop Fryer – 30 lb. Single Pot with Twin Baskets
Star 530FF Star-Max® Electric Fryer — 30 lb. Single Pot, Twin Baskets
The Star 530FF is a heavy-duty 30 lb. electric countertop fryer built in the USA for restaurants, convenience stores, and concession operations that demand consistent, high-volume frying. Its single nickel-plated steel kettle, twin baskets, and snap-action thermostat deliver fast oil recovery and precise temperature control in a compact 24-inch footprint that slides easily onto any commercial counter.
Key Features of the Star 530FF
Every component on this Star-Max® fryer is built around two priorities: fast product turn-around and simple daily cleaning.
Snap-Action Thermostat
Responsive temperature control from 200°F to 375°F keeps oil dialed in for everything from chicken tenders to french fries, with a built-in hi-limit thermostat preventing unsafe overheating.
30 lb. Single Pot with Twin Baskets
One large nickel-plated steel kettle holds 30 lb. of oil, while two included baskets let cooks rotate batches and clear the rush without bottlenecking a single basket.
Swing-Up Heating Elements
Immersion-type heating elements deliver even heat across the kettle, then swing up out of the way so the vat can be drained, scrubbed, or fully removed for straining.
Hi-Limit Safety Thermostat
A separate on/off switch and built-in high-limit thermostat shut the unit down before oil temperatures climb into dangerous territory — protecting both staff and the kettle.
Single- or Three-Phase Wiring
Unique among Star-Max® countertop fryers, the 530FF can be hard-wired for either 208/240V single-phase or three-phase power — letting it drop into almost any existing kitchen electrical setup.
Made in USA, Heavy-Duty Build
Stainless steel exterior, removable nickel-plated kettle, and 4-inch adjustable legs — all assembled in Smithville, TN and backed by UL and cULus certification for commercial kitchens.
Installation note: The 530FF is set up to hard wire — no cord or plug is included. The electrical connection point is located 12 in. from the left and 1.3 in. from the bottom on the back of the unit; allow clearance for a licensed electrician to terminate the 208/240V supply.
Ideal Applications
The 30 lb. capacity hits the sweet spot between countertop convenience and floor-model output — making the 530FF a fit for medium- to high-volume frying programs.
Star 530FF Specifications
| Brand | Star Manufacturing (Star-Max®) |
|---|---|
| Model | 530FF |
| Category | Electric Countertop Fryer — Single Pot / Twin Baskets |
| Oil Capacity | 30 lb. (13.6 kg) |
| Frypot Construction | Single removable nickel-plated steel kettle |
| Baskets Included | Two (twin baskets) |
| Temperature Range | 200°F – 375°F (93°C – 191°C) |
| Thermostat | Snap-action with built-in hi-limit safety |
| Heating Elements | Immersion-type, swing-up for cleaning |
| Voltage | 208/240V, 60 Hz, single-phase or three-phase |
| Power Rating | 8.6 kW @ 208V / 11.5 kW @ 240V |
| Amperage (1φ) | 41.5 A @ 208V / 47.9 A @ 240V |
| Electrical Connection | Hard wire — no cord or plug included |
| Width × Depth | 24" × 24.8" (610 × 630 mm) |
| Operating Height | 16.6" (422 mm) |
| Cleaning Height (elements up) | 37.8" (960 mm) |
| Leg Height | 4" adjustable (102 mm) |
| Shipping Weight | 80 lb. (36.3 kg) |
| Installed Weight | 65 lb. (29.5 kg) |
| Certifications | UL, cULus, UL EPH Classified |
| Country of Origin | Made in USA — Smithville, TN |
| Warranty | 2-year parts and labor |
Frequently Asked Questions
What is the oil capacity of the Star 530FF?
The Star 530FF holds 30 lb. (13.6 kg) of oil in a single nickel-plated steel kettle. It ships with two baskets so cooks can rotate batches inside the same vat.
Does the Star 530FF come with a power cord?
No. Unlike the smaller 301HLF, 514LL, and 515F models in the Star-Max® line, the 530FF is set up to hard wire and does not include a cord or plug. A licensed electrician should terminate the 208/240V supply at the back of the unit.
Can the Star 530FF be wired for single-phase or three-phase power?
Yes — the 530FF is the only Star-Max® countertop fryer that can be wired for either single-phase or three-phase 208/240V power, making it flexible for kitchens with different electrical setups.
What temperature range does the Star 530FF reach?
The snap-action thermostat covers 200°F to 375°F (93°C to 191°C), which handles every standard fried menu item from blanched french fries to breaded chicken and seafood.
How easy is the Star 530FF to clean?
Two design choices simplify cleanup: the immersion heating elements swing up out of the way, and the nickel-plated steel kettle lifts out completely for oil straining or full washing.
What warranty does the Star 530FF carry?
Star Manufacturing covers the 530FF with a 2-year parts and labor warranty for commercial use. The unit is UL, cULus, and UL EPH Classified and is built in Smithville, Tennessee.
