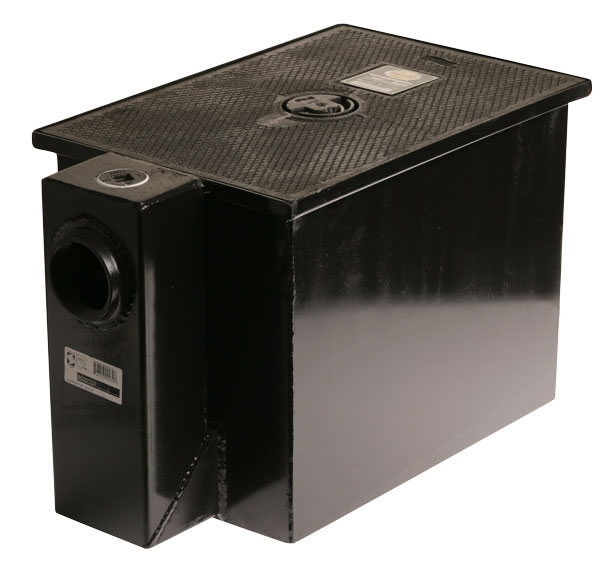

50 LB JR Smith 8025 Heavy Duty Grease Trap Interceptor 25 GPM

JR Smith 8025 50 lb Duco Coated Heavy Duty Restaurant Grease Trap Interceptor 25 gpm

ENGINEERING SPECIFICATION: JR Smith 8025

Duco Coated interior and exterior fabricated steel grease interceptor, PDI, rated a with internal air relief by-pass, bronze clean out plug, Used in kitchens, restaurants, institutions, and all types of food processing areas where waste water contains grease, fats and oil. Rate of flow into interceptor is controlled by a flow control fitting, thus enabling the interceptor to collect over 90% of the grease which flows into it. "Uni-lock" cover design permits fast cover removal for periodic cleaning. This JR Smith Grease Trap Interceptor may be set on floor, semi-recessed in floor or fully recessed with cover flush with finished floor. Note: Location of outlet from the bottom of this JR Smith grease interceptor cannot be changed.

Dimensions:

Model 8025 Heavy Duty Commercial Grease Interceptor by Smith

• 25 GPM
• Inlet 3"
• Width Front to Back 16-3/4"
• Length Side to Side  30"
• Height Floor to top 19-3/4"
• Bottom to Center of Inlet 15-1/4"
• 130 Lbs
