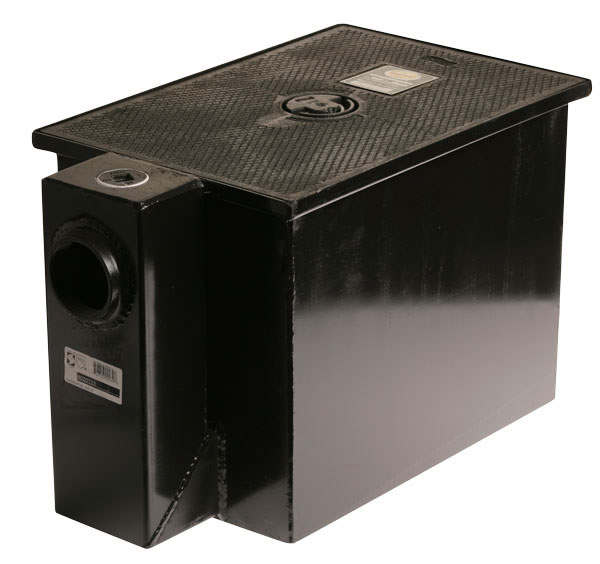

100 LB JR Smith 8050 Heavy Duty Grease Trap Interceptor 50 GPM

JR Smith 8050 100-lb. Duco Coated Heavy Duty Grease Trap Interceptor 50 gpm FREE FREIGHT IN THE LOWER  48*** No Special Services

ENGINEERING SPECIFICATION: JR Smith 8050

The JR Smith 8050 is a 100-lb. grease trap designed for commercial kitchens, restaurants, institutions, and food processing areas where wastewater contains grease, fats, and oils. Constructed from Duco-coated fabricated steel, this 50 GPM grease trap features a PDI-rated A design with an internal air relief bypass and a bronze clean-out plug. A flow control fitting regulates the intake, allowing the interceptor to capture over 90% of incoming grease. The Uni-Lock cover design enables quick removal for routine cleaning. It can be installed on the floor, semi-recessed, or fully recessed with the cover flush to the finished floor. Note: The outlet location from the bottom of the interceptor cannot be adjusted.

Dimensions:

JR Smith 8050 Model Grease Trap

• 50 GPM
• Inlet 3"
• Width Front to Back 20-3/4"
• Length Side to Side 35-1/2"
• Height Floor to top 24-1/4"
• Bottom to Center of Inlet 17-1/2"
• 195 Lbs
