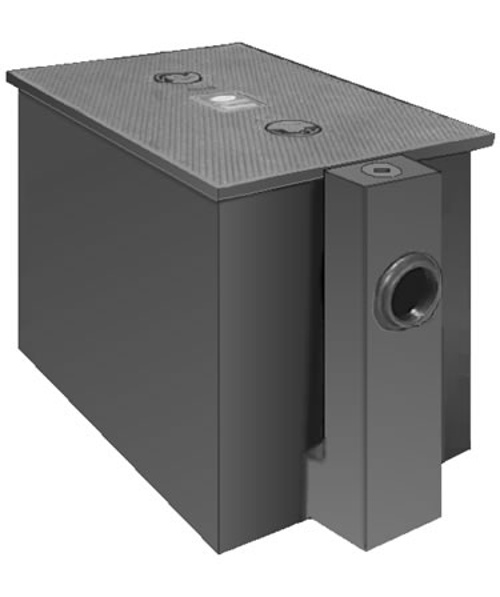

Lg 200# JR Smith 8460 Heavy Duty Grease Trap Interceptor 100 GPM

JR Smith 8460 200# Duco Coated Heavy Duty Grease Trap Interceptor 100 gpm FREE FREIGHT IN THE LOWER  48*** No Special Services

ENGINEERING SPECIFICATION: JR Smith 8460

Duco Coated interior and exterior fabricated steel grease interceptor, PDI, rated with a internal air relief by-pass, bronze clean out plug, FUNCTION: This 100 GPM grease trap is used in large kitchens or institutions where there is an anticipated high rate of discharge of grease and oil laden waste from the fixtures. Large fabricated steel units available from 75 to 500 gallons per minute are most adaptable to industrial applications such as food processing and packaging plants. Rate of flow into interceptor is controlled by a flow control fitting, thus enabling the interceptor to collect over 90% of the grease which flows into it. Cover design permits fast cover removal for periodic cleaning.This 100 GPM grease trap interceptor may be set on floor, semi-recessed in floor or fully recessed with cover flush with finished floor. Note: Location of outlet from bottom of interceptor cannot be changed.

Dimensions:

Model 8460 Heavy Duty Large Capacity Commercial Grease Interceptor by Smith

• 100 GPM
• Inlet 4"
• Width Front to Back 33-1/2"
• Length Side to Side 54"
• Height Floor to top 43-1/2"
• Bottom to Center of Inlet 27"
• 600 Lbs
