Airrex & Flagro AHSC-60R 220/1 Portable Heat Pump 5 Ton 60000 BTU Cooling 60000 BTU Heating R-454B Refrigerant 220V Single Phase ETL Listed

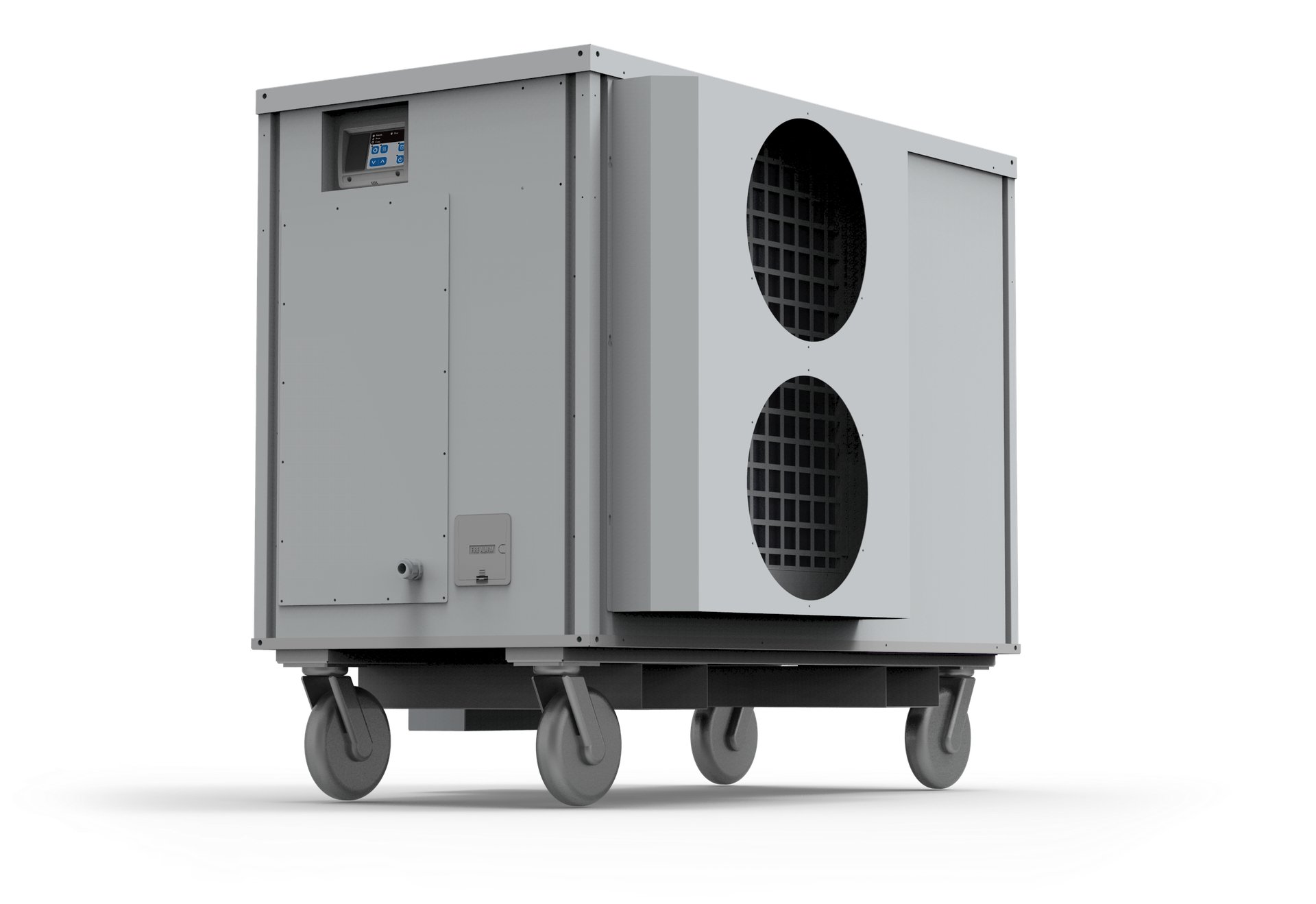

Airrex AHSC-60R 220/1 Portable Heat Pump — 5-Ton 60,000 BTU Cooling & Heating
The Airrex AHSC-60R 220/1 is a 5-ton portable heat pump engineered for the largest commercial and industrial spaces — delivering 60,000 BTU/h of cooling and 60,000 BTU/h of heating from a single, fully mobile unit. Powered by next-generation low-GWP R-454B refrigerant and built around a duct-connection design with 1,950 CFM of indoor airflow, this 220-volt single-phase system replaces a wall of permanent HVAC where you need heating, cooling, or dehumidification right now.
Key Features of the AHSC-60R 220/1
Built for big jobs: high-volume airflow, duct-ready connections, and a thermally protected compressor combine to deliver year-round comfort wherever the AHSC-60R rolls.
Balanced Heating & Cooling
60,000 BTU/h in both cooling and heating modes — a true 5-ton workhorse that handles large industrial floors, warehouses, and high-demand commercial spaces year round.
Eco-Friendly R-454B Refrigerant
The AHSC-60R 220/1 runs on next-generation, low-GWP R-454B — a modern replacement for R-410A that meets current environmental and efficiency standards.
High-Volume Duct-Ready Airflow
1,950 CFM indoor and 3,240 CFM outdoor airflow move through a 12" supply duct, 16" return duct, and 26" top exhaust — with an optional 20" reducer for tighter routing.
Thermostatically Protected Compressor
Compressor thermostat protector, high- and low-pressure switches, a 3-minute delay timer, and fan-motor protection guard the system against overheating and short-cycling.
Mobile, Lockable Caster Design
Heavy-duty urethane wheels with 8" locking casters let the 586-lb unit be repositioned between zones and then locked firmly in place exactly where airflow is needed.
Digital Controls & Self-Diagnosis
An easy-to-use digital controller offers temperature setting, an OFF timer, remote control, and a built-in self-diagnosis function for simple operation and service.
Installation note: The AHSC-60R 220/1 is a duct-connection heat pump — warm and exhaust air is routed through the 26" top exhaust. For best performance in enclosed or confined areas, provide a fresh-air supply and exhaust outside the conditioned zone. An optional 20" reducer and an optional plug-in condensate pump (quick-connect port) are available separately.
Ideal Applications
Five tons of dual-mode capacity makes the Airrex AHSC-60R 220/1 a fit for the largest commercial and industrial settings — anywhere permanent HVAC isn't practical or fast enough.
AHSC-60R 220/1 Specifications
| Cooling Capacity | 60,000 BTU/h at 95°F / 40% RH |
|---|---|
| Heating Capacity | 60,000 BTU/h at 70°F / 50% RH |
| Heat Pump Class | 5-Ton |
| Refrigerant | R-454B (eco-friendly, low-GWP) |
| Power Supply | 220V~, 1 Phase, 60 Hz |
| Power Consumption (Cooling / Heating) | 5.68 kW / 5.6 kW |
| Current Draw (Cooling / Heating) | 26.0 A / 25.8 A |
| Fuse Size | 50 A |
| Operating Voltage Range | 187 – 242 V~ |
| Indoor Air Volume | 1,950 CFM (cooling / heating / dehumidification) |
| Outdoor Air Volume | 3,240 CFM |
| Indoor Fan Type | Centrifugal |
| Outdoor Fan Type | Axial |
| Indoor Max. External Static Pressure | 0.9 inchH₂O |
| Indoor Max. Equivalent Duct Length | 65 ft |
| Supply Duct | 12" |
| Return Duct | 16" |
| Top Exhaust | 26" diameter (optional 20" reducer) |
| Dehumidification Capacity | 54 gal/day nominal / 76 gal/day max |
| Sound Level (without exhaust duct) | 76 dB(A) |
| Condensate Pump | Optional (quick-connect port) |
| Air Filter | Aluminum + stainless-steel mesh, removable & washable |
| Operating Range (Cooling) | 65°F – 118°F (18–45°C) |
| Operating Range (Heating) | 50°F – 81°F (10–27°C) |
| Operating Range (Dehumidification) | 59°F – 118°F (15–45°C) |
| Safety Devices | High/low pressure switches, compressor thermostat protector, 3-min delay timer, fan-motor protection |
| Dimensions (W × D × H) | 29" × 57" × 51" |
| Net Weight | 586 lbs |
| Mobility | Urethane wheels with 8" locking casters |
| Certification | ETL Listed |
| Warranty | 1-year unit / 3-year compressor |
Frequently Asked Questions
What refrigerant does the Airrex AHSC-60R 220/1 use?
The AHSC-60R 220/1 uses R-454B, a next-generation, low-GWP refrigerant that replaces R-410A. It delivers efficient heating and cooling while meeting current environmental and efficiency standards.
How much can the AHSC-60R 220/1 cool and heat?
As a 5-ton portable heat pump, it provides 60,000 BTU/h of cooling and 60,000 BTU/h of heating — balanced year-round capacity from a single unit, plus a dehumidification mode rated up to 76 gallons per day.
What power supply does the AHSC-60R 220/1 require?
The unit runs on 220V single-phase, 60 Hz power. It draws 26.0 A in cooling mode and 25.8 A in heating mode, with a 50 A fuse size and an operating voltage range of 187–242 V.
What are the operating temperature ranges?
The AHSC-60R 220/1 operates from 65°F to 118°F in cooling mode, 50°F to 81°F in heating mode, and 59°F to 118°F in dehumidification mode.
How is air ducted, and is exhaust required?
The unit uses a 12" supply duct, a 16" return duct, and a 26" top exhaust with an optional 20" reducer, plus a max equivalent duct length of 65 ft. As a duct-connection heat pump, it should exhaust outside the conditioned zone, and a fresh-air supply is recommended in enclosed areas.
Is the AHSC-60R 220/1 certified, and what warranty is included?
The Airrex AHSC-60R 220/1 is ETL listed for safety and quality. It is covered by a 1-year warranty on the complete unit and a 3-year warranty on the compressor.
| Brand | Airrex & Flagro |
-
