Atosa USA AEFF-50-1T Electric Fryer, Single Split Vat, 2 x 25 lb, Built-In Filtration, Programmable, 208V 3-Ph
Atosa USA AEFF-50-1T — Single Split Vat Electric Fryer, 2 x 25 lb

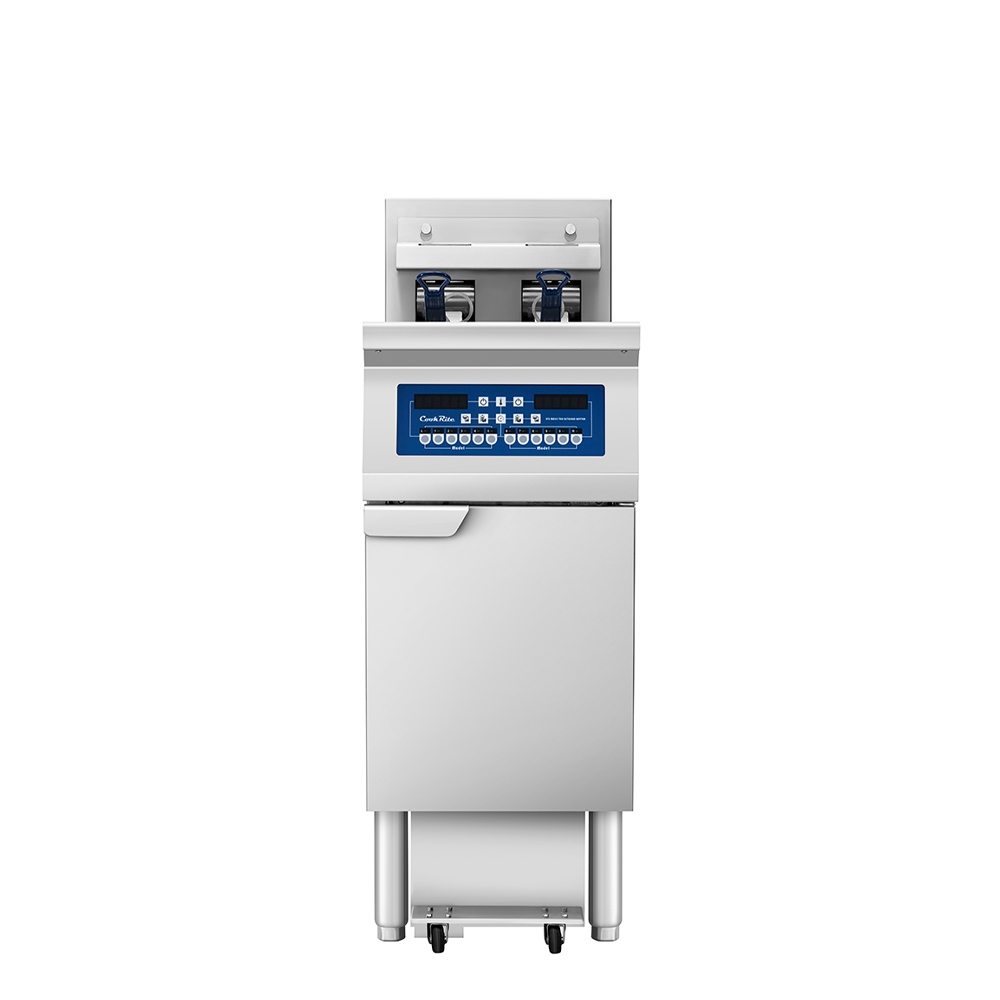

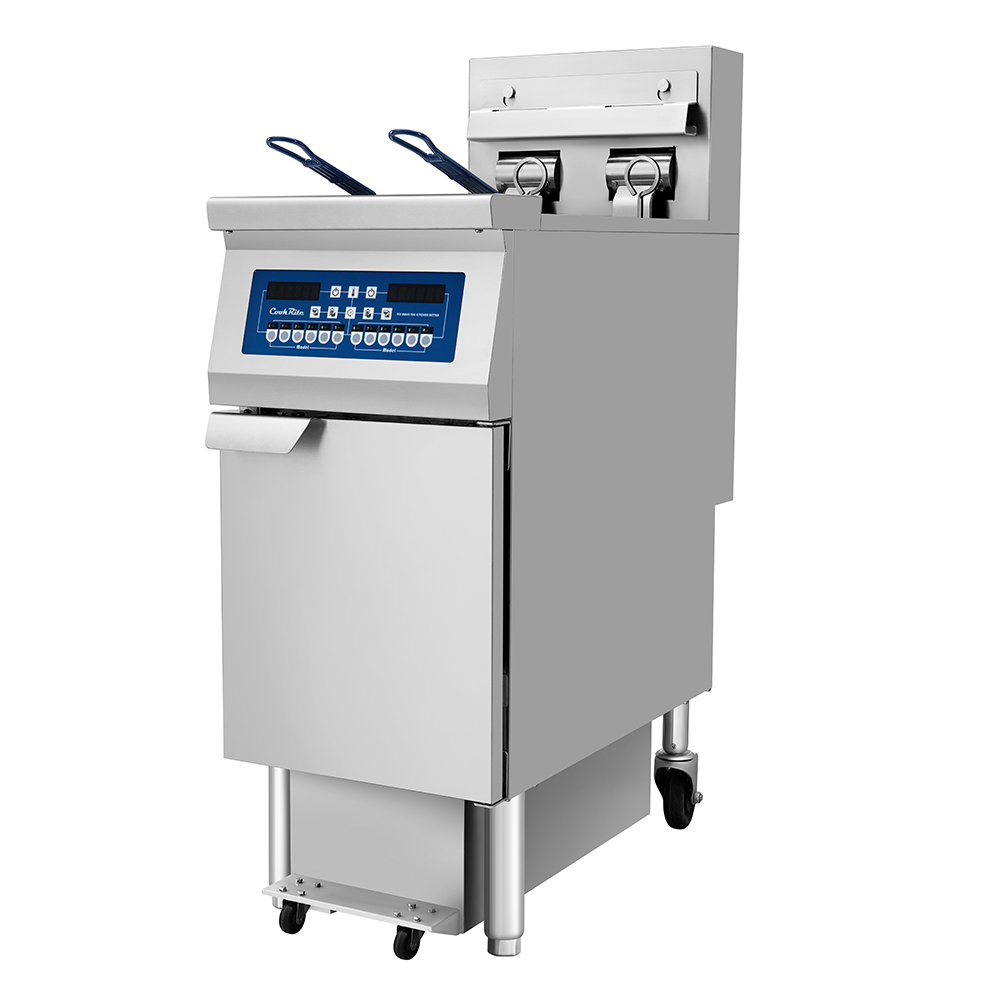

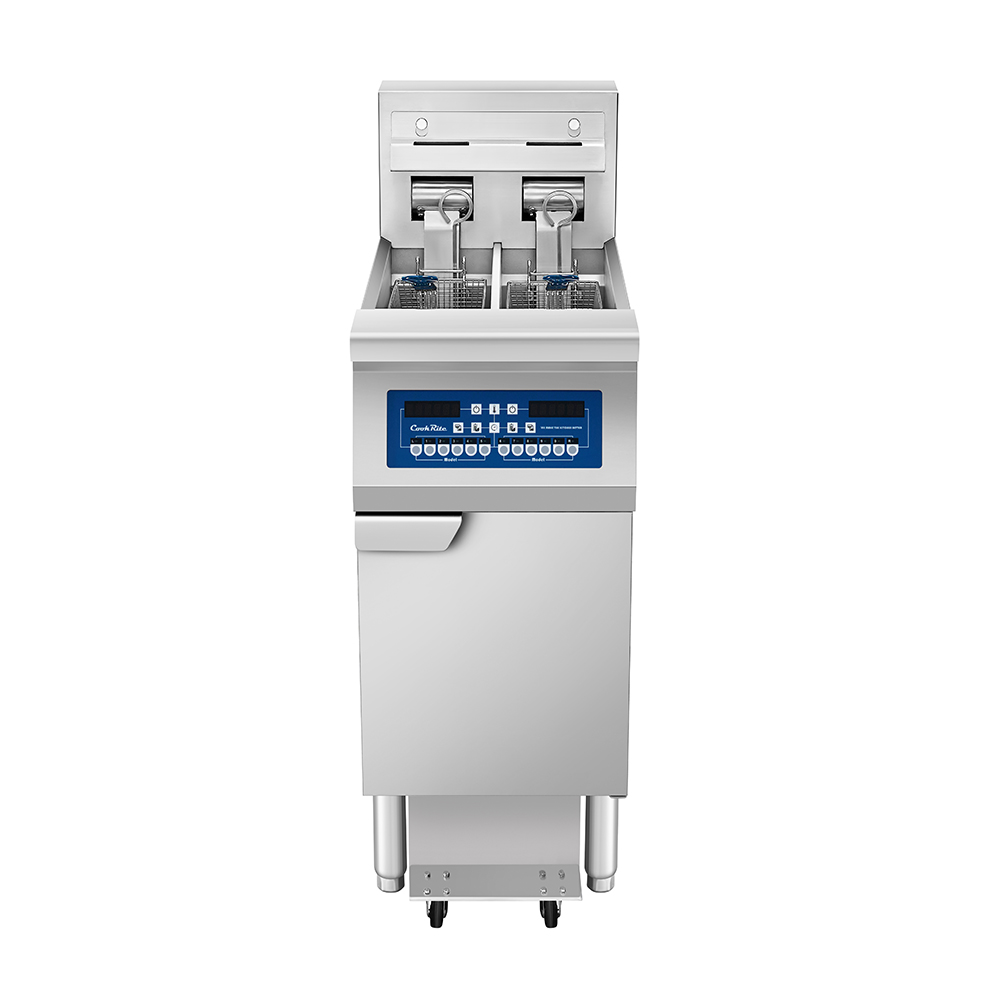

The AEFF-50-1T is a single split vat electric fryer battery: one tank divided into two 25 lb wells at 8.5 kW each, in a 15-1/2" wide body. Two low-volume items run side by side in their own oil under fully programmable electronic controls, built-in filtration with a pump is standard, and the tank comes with two baskets.
Key Features of the AEFF-50-1T
A split vat in a 15-1/2" body answers a narrow question well: how to keep two items out of each other's oil without giving up a second full fryer's worth of floor space.
One Split Vat, Two 25 lb Wells
The tank is divided into two 25 lb wells at 8.5 kW each, so two products cook in separate oil without the footprint of two fryers.
Fully Programmable Electronic Controls
Each well is programmed independently, which is the point of a split vat: the two sides usually run different products on different timings.
Built-In Filtration with Pump
The filtration system and pump are part of the battery, so oil is cleaned in place at the end of service rather than moved to a separate filter machine.
Two Baskets with the Tank
Two fryer baskets come with the tank, one for each well, so the fryer is ready to run out of the crate.
17 kW on 208V Three Phase
Two 8.5 kW wells add up to 17 kW, drawn at 48 A per wire on a minimum 6/4 AWG supply.
Two Casters, Two Legs
Single and double battery models ship with two casters at the rear and two legs at the front, so the fryer rolls forward for cleaning and sits level in service.
Electrical note: the AEFF-50-1T requires 208V three phase with a minimum wire size of 6/4 AWG and 48 A per wire. Each well is rated 8.5 kW, for 17 kW in total. Confirm the service at the install site before ordering.
Ideal Applications
A single split vat suits a kitchen that fries two things, neither of them in volume, and cannot let the oil mix.
AEFF-50-1T Specifications
| Model | AEFF-50-1T |
|---|---|
| Brand | Atosa USA |
| Type | Single split vat electric fryer battery |
| Vat Configuration | 1 split vat (2 wells) |
| Oil Capacity | 2 x 25 lb (50 lb total) |
| Baskets | 2 fryer baskets per tank |
| Tank Material | Stainless steel |
| Filtration | Built-in filtration system with pump |
| Controls | Fully programmable electronic controls |
| Power | 2 x 8.5 kW (17 kW total) |
| Voltage | 208V, 3 phase |
| Amps Per Wire | 48 A |
| Minimum Wire Size | 6/4 AWG |
| Casters / Legs | 2 casters at the rear, 2 legs at the front |
| Exterior Dimensions (W x D x H) | 15-1/2" x 31" x 45-3/8" |
| Packing Dimensions (W x D x H) | 18-3/4" x 34-5/8" x 51-1/4" |
| Net Weight | 243 lb |
| Gross Weight | 298 lb |
| Filter Paper | FP-1324-5 (10-1/4" x 22", 100 sheets per box) |
| Related Models | AEFF-50-1TB (same configuration with auto lift), AEFF-50-1 (single full vat, 50 lb), AEFF-50-2T (double, left full / right split), AEFF-50-3T (triple, right split vat) |
| Warranty | 1 year parts and labor |
Optional Accessories
Filter paper is the consumable the built-in filtration runs on; the rest are optional add-ons Atosa lists for the AEFF-50 series.
| FP-1324-5 | Filter paper, 10-1/4" x 22", 100 sheets per box |
|---|---|
| Fryer Mesh Screen | Optional |
| Vessel Covers | Optional |
| Side Splash | Optional |
Frequently Asked Questions
How is the AEFF-50-1T configured?
One tank split into two 25 lb wells, 50 lb of oil in total, each well programmed and heated on its own at 8.5 kW.
Why choose a split vat over a full vat?
Two products stay in separate oil — useful for allergen separation or for keeping a strong flavored item away from everything else — without needing the floor space and power of a second fryer.
What are the electrical requirements?
208V three phase, 48 A per wire, on a minimum 6/4 AWG supply. Each well is 8.5 kW, for 17 kW in total.
Does it include a filtration system?
Yes. A built-in filtration system with a pump is standard, and it runs on FP-1324-5 filter paper, 10-1/4" x 22", 100 sheets per box.
How many baskets come with the AEFF-50-1T?
Two fryer baskets per tank, one per well.
How does the AEFF-50-1T differ from the AEFF-50-1TB?
The AEFF-50-1TB is the same split vat configuration with the auto lift system added, which raises the baskets automatically at the end of the programmed cycle. The TB body is 33-3/4" deep and 48-1/2" high at 251 lb, against 31" deep and 45-3/8" high at 243 lb here.
