Atosa USA ATG-2424-C CookRite Chrome Plated Gas Griddle, 24"W, 24" x 24" Plate, 2 Burners, 60,000 BTU, Thermostatic

Q: How many burners does the ATG-2424-C have?

Two U-shaped burners, one per 12 inch section, rated 30,000 BTU/h each for 60,000 BTU/h in total.

Q: Can different parts of the griddle run at different temperatures?

Yes. Each 12 inch section has its own independent thermostatic control, so the two zones can be set separately anywhere from 200 F to 450 F.

Q: What gas connection does the ATG-2424-C need?

A 3/4 inch NPT rear connection with the supplied regulator. Natural gas runs at 4 inch w.c. and propane at 10 inch w.c.

Q: What clearances does the griddle need?

6 inch at the rear and 4 inch to 6 inch at the sides from combustible construction, and 0 inch from non-combustible construction.

Q: How does the ATG-2424-C compare to the other ATG chrome griddles?

The ATG-2424-C is the smallest at 24 inch with 2 burners and 60,000 BTU/h. The ATG-3624-C is 36 inch with 3 burners and 90,000 BTU/h, the ATG-4824-C is 48 inch with 4 burners and 120,000 BTU/h, and the ATG-6024-C is 60 inch with 5 burners and 150,000 BTU/h. The ATG-2424-S is the same griddle with a polished steel plate.

Free Shipping

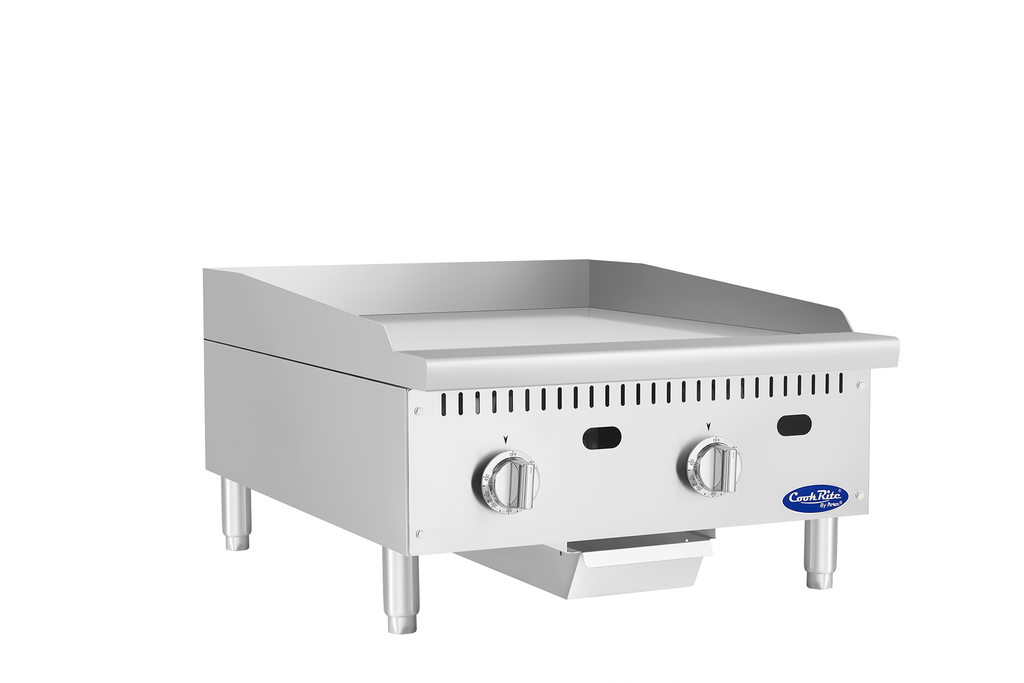

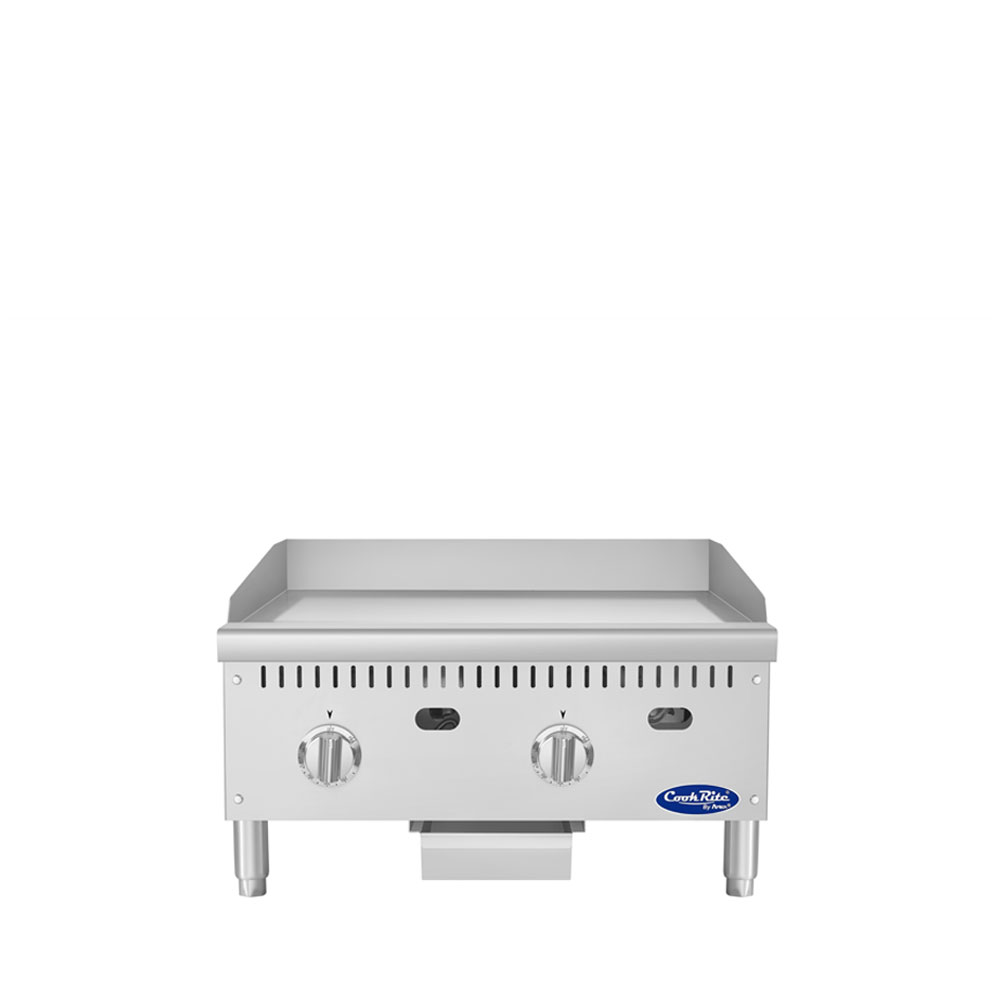

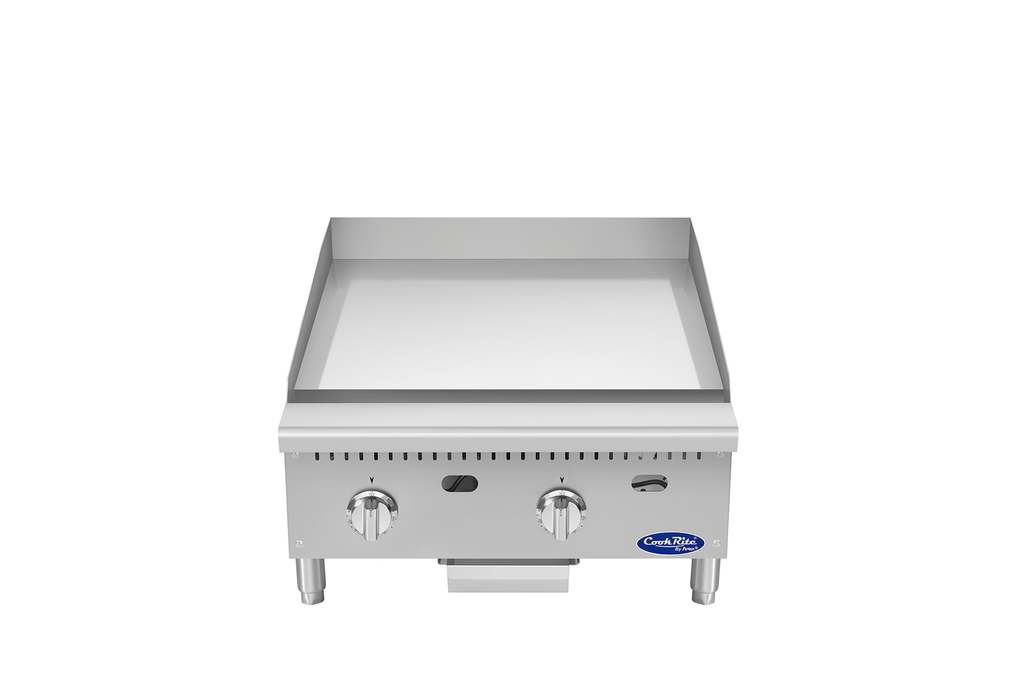

Atosa USA ATG-2424-C — 24" Chrome Plated Thermostatic Griddle

The ATG-2424-C is a 24" countertop gas griddle with a 1" thick chrome plated plate over two 30,000 BTU U-shaped burners — 60,000 BTU/h in total. Chrome plating cuts the radiant heat thrown back into the kitchen, keeps food from sticking and stops flavor carrying between items, and each 12" section has its own thermostat covering 200°F to 450°F.

60,000BTU/h

TOTAL INPUT

24 x 24in

WORK AREA

200-450°F

TEMPERATURE RANGE

2zones

THERMOSTATIC CONTROL

Why It Performs

Key Features of the ATG-2424-C

Chrome is the reason to pick this griddle over the polished steel version: the same burners and controls, but a plate that radiates less heat at the cook and releases food cleanly.

1" Chrome Plated Plate

A heavy duty 1" plate stores heat so the surface does not collapse under a full load, and the chrome finish releases food instead of gripping it.

Less Radiant Heat, No Flavor Transfer

Chrome plating reduces radiant heat into the kitchen, minimizes food sticking and flavor transfer between items, and can help lower energy use.

Independent Thermostat per 12" Section

Thermostatic controls run each 12" section on its own, so delicate items at 300°F and a sear zone at 450°F share the same plate.

Two 30,000 BTU U-Shaped Burners

U-shaped burners spread 30,000 BTU across each 12" section for 60,000 BTU/h in total, with standby pilots holding a flame between cycles.

Standing Pilot with Gas Shut-Off

Standing pilot ignition includes automatic gas shut-off if the pilot goes out, so gas is not left flowing to a burner that will not light.

4-Quart Stainless Grease Drawer

A 6-3/4" x 17-1/2" x 2-1/2" stainless drawer holds 4 quarts, so grease is pulled out and emptied instead of overflowing mid service.

Installation note: clearance to combustible construction is 6" at the rear and 4" to 6" at the sides depending on model; clearance to non-combustible construction is 0". Gas connects at a 3/4" NPT rear fitting and a regulator is standard — 4" w.c. for natural gas or 10" w.c. for propane.

Where It Works

Ideal Applications

A 24" chrome plate is the compact option for delicate product and for kitchens where counter space and radiant heat are both tight.

Breakfast and Diner Lines Eggs and pancakes release off chrome without picking up the last cook's flavor.

Coffee Shops and Cafes Two feet of plate covers a small hot menu without taking the whole counter.

Seafood and Delicate Proteins A chrome surface keeps fish from sticking and tearing on the pull.

Food Trucks and Concessions Less heat radiating into a small space makes a long shift workable.

Bars and Late Night Menus 60,000 BTU/h is enough for a short order menu run off one griddle.

Hotel Pantries and Room Service Two independent zones hold set temperatures through a long service window.

The Details

ATG-2424-C Specifications

Model	ATG-2424-C
Brand	Atosa USA
Type	Countertop gas griddle, chrome plated, thermostatic
Burners	2, U-shaped, one per 12" section
BTU per Burner	30,000 BTU/h
Total Input	60,000 BTU/h
Control Method	Independent thermostatic control per 12" section
Temperature Range	200°F - 450°F
Griddle Plate	1" thick chrome plated
Splashes	2mm thick 14-gauge stainless steel, rear and sides
Work Area	24" x 24"
Grease Drawer	Stainless steel, 6-3/4"W x 17-1/2"D x 2-1/2"H, 4 qt
Ignition	Standing pilot with automatic gas shut-off; standby pilots
Gas Connection	3/4" NPT rear, regulator standard
Gas Pressure	Natural gas 4" w.c.; propane 10" w.c.
Working Height	12-3/4" with protruding front edge design
Legs	Stainless steel, standard
Clearance to Combustibles	Rear 6"; sides 4" - 6" depending on model
Clearance to Non-Combustibles	0"
Construction	Stainless steel exterior and interior
Exterior Dimensions (W x D x H)	24" x 32" x 15-1/4"
Net Weight	217 lb
Gross Weight	263 lb
Certifications	Conforms to ANSI Z83.11 / CSA 1.8; certified to NSF/ANSI STD. 4
Related Models	ATG-3624-C (36", 3 burners, 90,000 BTU), ATG-4824-C (48", 4 burners, 120,000 BTU), ATG-6024-C (60", 5 burners, 150,000 BTU); ATG-2424-S is the polished steel version
Warranty	1 year parts and labor

Build It Out

Optional Accessories

Gas type is set at order, and coverage can be extended beyond the standard term.

Gas Type	Specify natural gas (4" w.c.) or propane (10" w.c.) at order
Extended Warranty	Available up to 5 years

1-Year Parts & Labor Warranty

Atosa USA covers the ATG-2424-C for one year on parts and labor. Extended coverage up to 5 years is available.

Good to Know

Frequently Asked Questions

What does the chrome plating do?

Chrome plating reduces radiant heat into the kitchen, minimizes food sticking and flavor transfer between items, and can help lower energy use compared with a polished steel plate.

How many burners does the ATG-2424-C have?

Two U-shaped burners, one per 12" section, rated 30,000 BTU/h each for 60,000 BTU/h in total.

Can different parts of the griddle run at different temperatures?

Yes. Each 12" section has its own independent thermostatic control, so the two zones can be set separately anywhere from 200°F to 450°F.

What gas connection does the ATG-2424-C need?

A 3/4" NPT rear connection with the supplied regulator. Natural gas runs at 4" w.c. and propane at 10" w.c.

What clearances does the griddle need?

6" at the rear and 4" to 6" at the sides from combustible construction, and 0" from non-combustible construction.

How does the ATG-2424-C compare to the other ATG chrome griddles?

The ATG-2424-C is the smallest at 24" with 2 burners and 60,000 BTU/h. The ATG-3624-C is 36" with 3 burners and 90,000 BTU/h, the ATG-4824-C is 48" with 4 burners and 120,000 BTU/h, and the ATG-6024-C is 60" with 5 burners and 150,000 BTU/h. The ATG-2424-S is the same griddle with a polished steel plate.

Warranty Option	1-Year Parts & Labor Warranty or 2-Year Parts & Labor Warranty or 3-Year Parts & Labor Warranty or 4-Year Parts & Labor Warranty or 5-Year Parts & Labor Warranty
Brand	Atosa USA

$ 2,486.00 2486.0 USD $ 2,486.00 $ 3,450.00

Website Price Call Us For More Information !

Brand
Warranty Option

This combination does not exist.

Add to Cart Buy now Buy Now

Price Match Request
Find better pricing? Just send it to us and ask for a quote!
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
Guaranteed Safe Checkout

SKU	ATG-2424-C
Brand	Atosa USA
Weight	263.00 lbs
Dimensions (HxWxD)	21.00 x 26.00 x 34.00 inches
Height	21.00
Width	26.00
Depth	34.00
Cooking Surface Width (side - side)	19" - 24"
Controls	thermostat / solid state controls
Griddle Plate Finish	chrome plated
Cooking Surface Depth (front - back)	24" - 29"
Exterior Finish	all stainless steel exterior
Plate Thickness	1"
