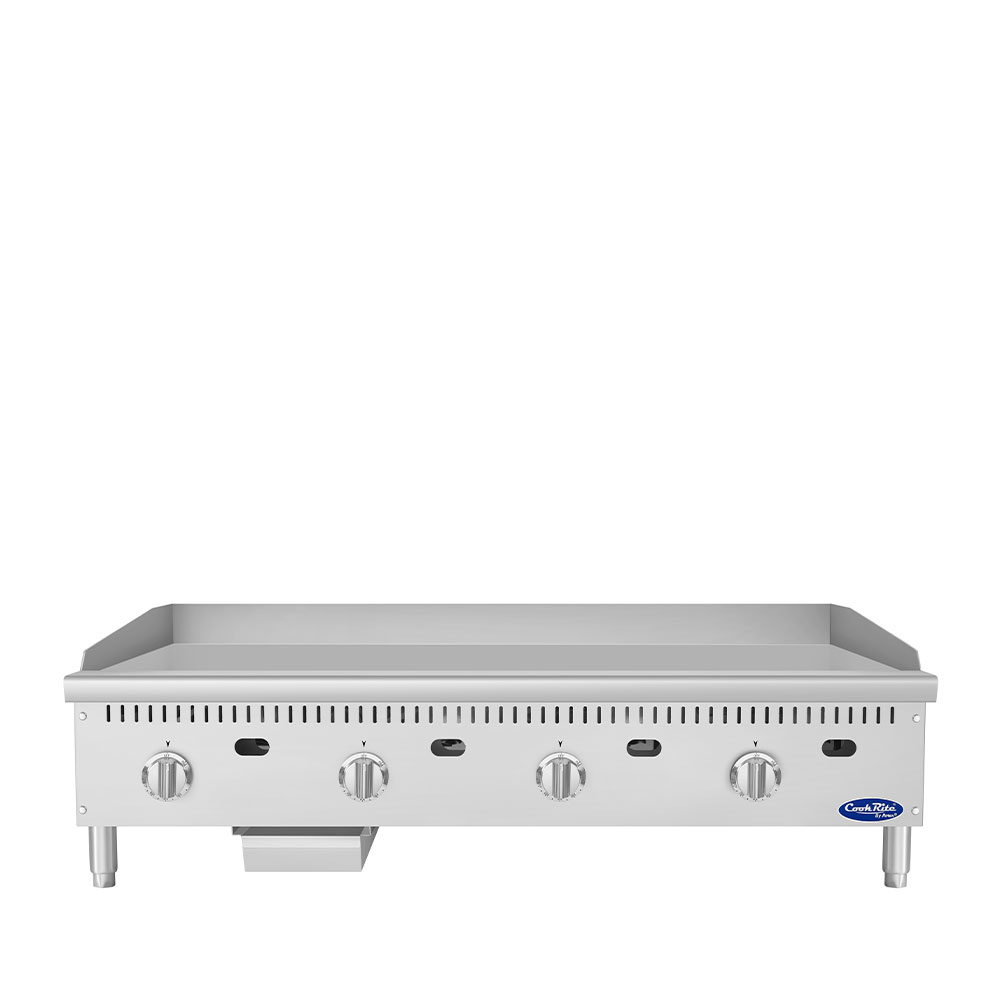

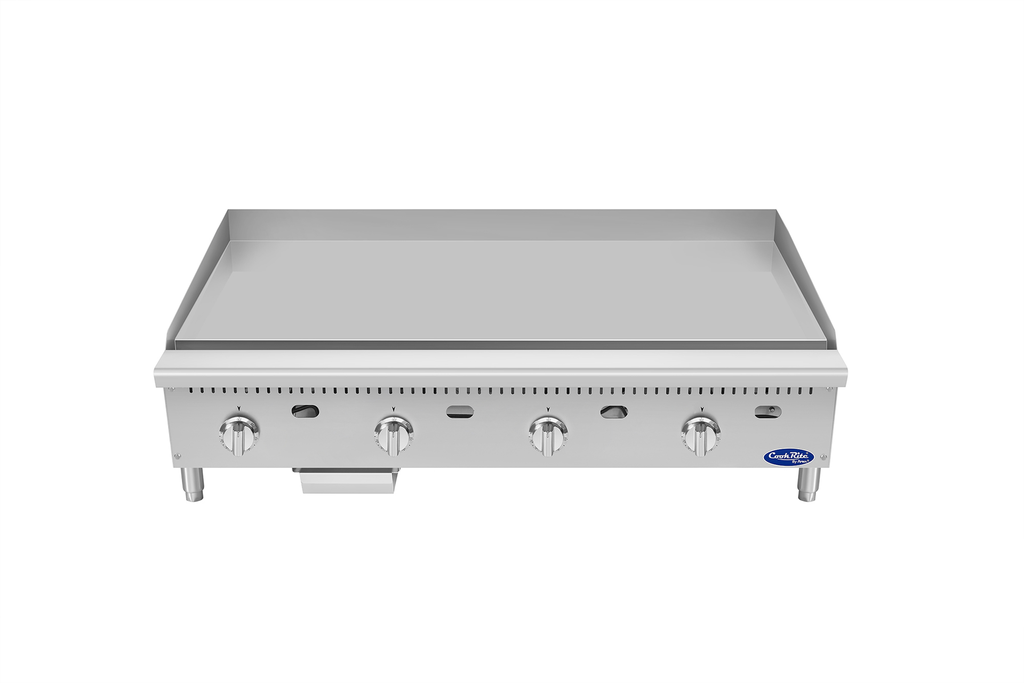

Atosa USA ATG-4824-S Countertop Gas Griddle, 48"W, Thermostatic, 4 Burners, 120,000 BTU, 1" Polished Steel Plate
Atosa USA ATG-4824-S — 48" Thermostatic Gas Griddle
The ATG-4824-S is a 48" countertop gas griddle with a 1" thick polished steel plate over four 30,000 BTU U-shaped burners — 120,000 BTU/h in total. Each 12" section has its own snap-action thermostat covering 200°F to 450°F, so four zones can be held at four different temperatures across one 48" x 24" cooking surface.
Key Features of the ATG-4824-S
A thermostatic griddle is bought for control: the plate has to recover fast and hold the number the thermostat is set to, zone by zone, through a full service.
1" Thick Polished Steel Plate
A heavy duty 1" polished steel plate stores heat, so the surface does not collapse in temperature when a full load of cold product hits it.
Independent Thermostat per 12" Section
Snap-action thermostatic controls run each 12" section on its own, so eggs at 300°F and smash burgers at 450°F share the same plate.
Four 30,000 BTU U-Shaped Burners
U-shaped burners spread 30,000 BTU across each 12" section for 120,000 BTU/h in total, with standby pilots holding a flame between cycles.
Standing Pilot with Gas Shut-Off
Standing pilot ignition includes automatic gas shut-off if the pilot goes out, so gas is not left flowing to a burner that will not light.
4-Quart Stainless Grease Drawer
A 6-3/4" x 17-1/2" x 2-1/2" stainless drawer holds 4 quarts, so grease is pulled out and emptied instead of overflowing mid service.
12-3/4" Working Height
The protruding front edge design keeps the operator's arms away from the hot plate area at a 12-3/4" working height, over standard stainless steel legs.
Installation note: clearance to combustible construction is 6" at the rear and 4" to 6" at the sides depending on model; clearance to non-combustible construction is 0". Gas connects at a 3/4" NPT rear fitting and a regulator is standard — 4" w.c. for natural gas or 10" w.c. for propane.
Ideal Applications
A 48" plate with four independent zones is a whole breakfast or burger station on its own.
ATG-4824-S Specifications
| Model | ATG-4824-S |
|---|---|
| Brand | Atosa USA |
| Type | Countertop gas griddle, thermostatic |
| Burners | 4, U-shaped, one per 12" section |
| BTU per Burner | 30,000 BTU/h |
| Total Input | 120,000 BTU/h |
| Control Method | Independent snap-action thermostatic control per 12" section |
| Temperature Range | 200°F - 450°F |
| Griddle Plate | 1" thick polished steel |
| Splashes | 2mm thick 14-gauge stainless steel, rear and sides |
| Work Area | 48" x 24" |
| Grease Drawer | Stainless steel, 6-3/4"W x 17-1/2"D x 2-1/2"H, 4 qt |
| Ignition | Standing pilot with automatic gas shut-off; standby pilots |
| Gas Connection | 3/4" NPT rear, regulator standard |
| Gas Pressure | Natural gas 4" w.c.; propane 10" w.c. |
| Working Height | 12-3/4" with protruding front edge design |
| Legs | Stainless steel, standard |
| Clearance to Combustibles | Rear 6"; sides 4" - 6" depending on model |
| Clearance to Non-Combustibles | 0" |
| Construction | Stainless steel exterior and interior |
| Exterior Dimensions (W x D x H) | 48" x 32" x 15-1/4" |
| Net Weight | 419 lb |
| Gross Weight | 487 lb |
| Certifications | Conforms to ANSI Z83.11 / CSA 1.8; certified to NSF/ANSI STD. 4 |
| Related Models | ATG-2424-S (24", 2 burners, 60,000 BTU), ATG-3624-S (36", 3 burners, 90,000 BTU), ATG-6024-S (60", 5 burners, 150,000 BTU) |
| Warranty | 1 year parts and labor |
Optional Accessories
Gas type is set at order, and coverage can be extended beyond the standard term.
| Gas Type | Specify natural gas (4" w.c.) or propane (10" w.c.) at order |
|---|---|
| Extended Warranty | Available up to 5 years |
Frequently Asked Questions
How many burners does the ATG-4824-S have?
Four U-shaped burners, one per 12" section, rated 30,000 BTU/h each for 120,000 BTU/h in total.
Can different parts of the griddle run at different temperatures?
Yes. Each 12" section has its own independent snap-action thermostatic control, so the four zones can be set separately anywhere from 200°F to 450°F.
How thick is the griddle plate?
1" polished steel, with 2mm thick 14-gauge stainless steel rear and side splashes.
What gas connection does the ATG-4824-S need?
A 3/4" NPT rear connection with the supplied regulator. Natural gas runs at 4" w.c. and propane at 10" w.c.
What clearances does the griddle need?
6" at the rear and 4" to 6" at the sides from combustible construction, and 0" from non-combustible construction.
How does the ATG-4824-S compare to the other ATG thermostatic griddles?
The ATG-4824-S is the 48" model with 4 burners and 120,000 BTU/h. The ATG-2424-S is 24" with 2 burners and 60,000 BTU/h, the ATG-3624-S is 36" with 3 burners and 90,000 BTU/h, and the ATG-6024-S is 60" with 5 burners and 150,000 BTU/h. All four are 24" deep on the plate and 15-1/4" high.
