Atosa USA ATW-13 Gas Wok Range, Single Burner, 13" Ring, 95,000 BTU, Stainless Steel

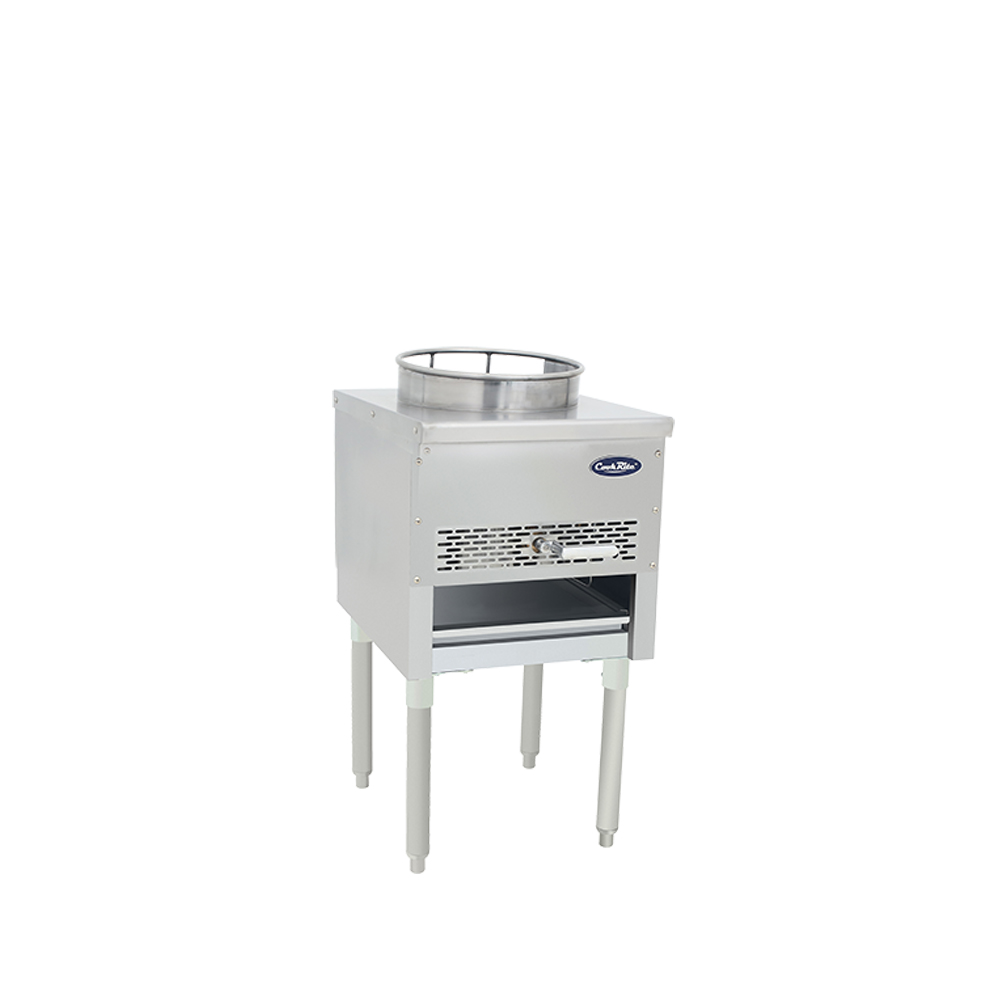

Atosa USA ATW-13 — 13" Single Burner Gas Wok Range
The ATW-13 is a single-burner Chinese wok range built around a duck jet burner rated 95,000 BTU/h under a 13" wok ring. The whole unit is stainless steel, stands on adjustable 14.5" legs, and runs on a standing pilot with an adjustable valve — the high-output, low-complexity setup a wok station actually needs.
Key Features of the ATW-13
A wok range lives or dies on burner output and on whether the frame can take the heat and the weight of a loaded wok, shift after shift.
95,000 BTU Duck Jet Burner
A single duck jet burner delivers 95,000 BTU/h — the concentrated, high-velocity flame that wok cooking depends on to get a pan to searing temperature and hold it through a toss.
Adjustable Valve
The burner runs on an adjustable valve, so output can be dialled from a hard sear down to a simmer rather than being locked to a single firing rate.
13" Wok Ring
A 13" cooking area diameter suits standard commercial woks. The ATW-16 shares the same chassis with a 16" ring and a 110,000 BTU burner if a larger pan is needed.
Standing Pilot Ignition
Standing pilot ignition keeps the range independent of an electrical connection — nothing to plug in, nothing to fail in a wet, high-heat corner of the kitchen.
Stainless Steel Construction
Stainless throughout, which is what survives the oil, steam and constant wipe-downs around a wok station better than a painted or galvanised frame.
Adjustable Legs
Adjustable legs set at 14.5" let the range be levelled on an uneven kitchen floor and squared up to the rest of the cook line.
Installation note: the ATW-13 uses a standing pilot and takes natural gas at 5" W.C. or LP at 10" W.C. — confirm which gas type you are ordering. Conforms to NSF/ANSI STD.4. The 1 year parts and labor warranty applies in the US only.
Ideal Applications
A single 95,000 BTU burner is the working size for most wok programs that are not running a full multi-station line.
ATW-13 Specifications
| Model | ATW-13 |
|---|---|
| Brand | Atosa USA |
| Type | Gas wok range, single burner |
| Burner Type | Duck jet |
| Number of Burners | 1 |
| Total Output | 95,000 BTU/h |
| Cooking Area Diameter | 13" |
| Gas Valve | Adjustable |
| Ignition | Standing pilot |
| Gas Pressure | Natural gas 5" W.C. / LP 10" W.C. |
| Exterior Dimensions (W x D x H) | 17-7/8" x 24-3/8" x 34" |
| Leg Height | 14.5", adjustable |
| Construction | Stainless steel |
| Net Weight | 77 lb |
| Gross Weight | 93 lb |
| Sanitation | Conforms to NSF/ANSI STD.4 |
| Warranty | 1 year parts and labor (US only) |
Optional Accessories
The same chassis is offered with a larger ring and a higher-output burner.
| ATW-16 | 16" wok ring, 110,000 BTU/h burner |
|---|
Frequently Asked Questions
How powerful is the ATW-13 burner?
It carries a single duck jet burner rated 95,000 BTU/h. The larger ATW-16 uses the same burner type at 110,000 BTU/h.
What size wok does it take?
The cooking area diameter is 13", sized for standard commercial woks. If you run a larger pan, the ATW-16 offers a 16" ring on the same chassis.
Does the ATW-13 need an electrical connection?
No. It uses standing pilot ignition and an adjustable gas valve, so it runs on gas alone.
What gas pressure does it require?
5" W.C. on natural gas or 10" W.C. on LP. Specify the gas type when ordering.
What are the dimensions and weight?
The range measures 17-7/8" wide x 24-3/8" deep x 34" high on 14.5" adjustable legs. Net weight is 77 lb and gross shipping weight is 93 lb.
How does the ATW-13 compare to the ATW-16?
Both are stainless single-burner duck jet wok ranges with standing pilot ignition, adjustable valves and 14.5" adjustable legs, and both are 17-7/8" wide by 24-3/8" deep. The ATW-13 has a 13" ring at 95,000 BTU/h and stands 34" high at 77 lb; the ATW-16 has a 16" ring at 110,000 BTU/h, stands 34-1/8" high and weighs 79 lb.
