Atosa USA AUR48D4 Undercounter Refrigerator, 4 Drawers, 48-1/4"W, 12.2 cu. ft., Stainless Steel, R290
Atosa USA AUR48D4 — 48" Undercounter Refrigerator, 4 Drawers
The AUR48D4 is a 48-1/4" wide undercounter refrigerator with four pan drawers and 12.2 cu. ft. of refrigerated storage, built to sit under a prep counter or a cook line and hold product at 35°F to 38°F. It is stainless inside and out with a reinforced stainless top, runs on R290 refrigerant through a 1/6 HP system, and ships on 2" heavy duty swivel plate casters.
Key Features of the AUR48D4
An undercounter unit has to do two jobs at once: hold safe temperature under a hot line, and put product within arm's reach of the person working above it.

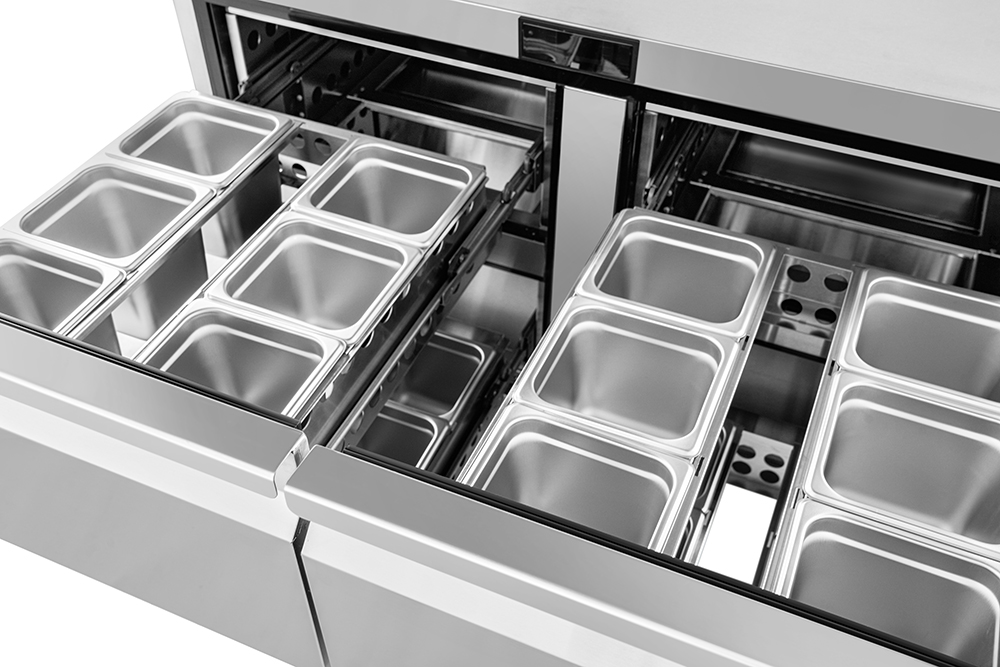

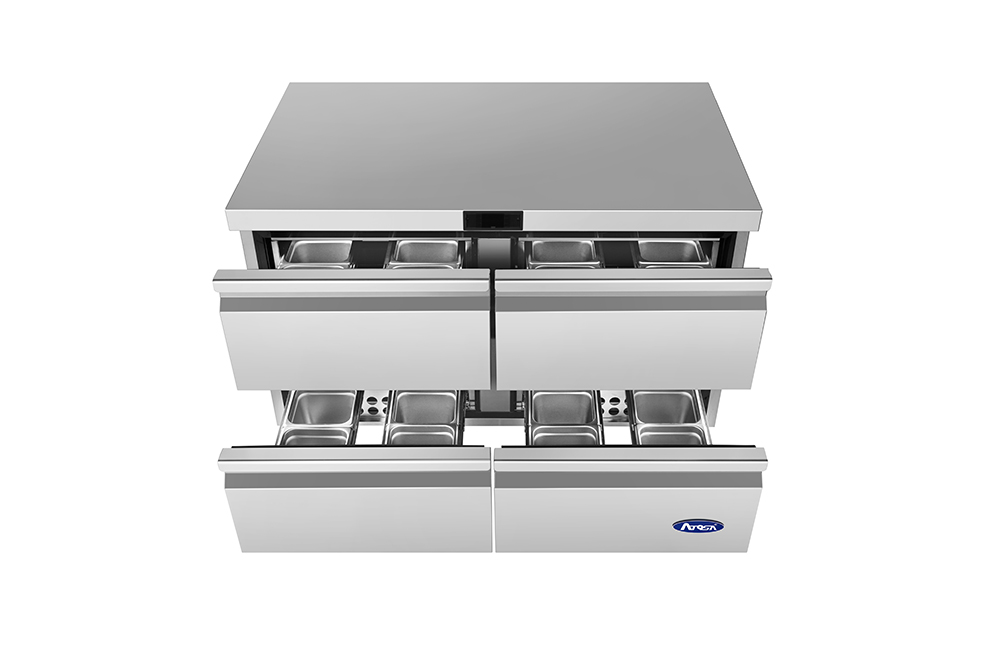

Four Pan Drawers
Four drawers split 12.2 cu. ft. into four working zones, so proteins, garnishes and mise stay separated and a cook opens only the drawer they need instead of a full door.
R290 Refrigerant, 35°F to 38°F
The system runs on environmentally friendly R290 and holds between 35°F and 38°F, the range Atosa recommends for food preservation.
Electronic Temperature Controller
An electronic controller replaces a mechanical dial, so the set point is read and adjusted directly rather than estimated from a knob position.
Stainless Steel Inside and Out
Stainless exterior and interior with a reinforced stainless steel top, so the unit takes being worked on from above as well as being wiped down from the front.
Ships with 1/6 Size Pans
Each unit comes standard with 1/6 size pans. Optional configurations cover 1/1, 1/2, 1/3 and 1/4 pan layouts if the station runs larger inserts.
2" Heavy Duty Casters, Pre-Installed
Standard 2" heavy duty swivel plate casters — B0604434 with brake and B0604433 without — put overall height at 32-3/8" and let the unit roll out for cleaning.
Placement note: leave the unit room to breathe and clean the condenser frequently so it keeps drawing fresh air. Atosa recommends a set point between 35°F and 38°F for food preservation. The unit plugs into a standard NEMA 5-15P outlet at 115V, 15A.
Ideal Applications
A four-drawer undercounter at 48" is the size that fits between a grill and a fryer bank without giving up a full reach-in's worth of product.
AUR48D4 Specifications
| Model | AUR48D4 |
|---|---|
| Brand | Atosa USA |
| Type | Undercounter refrigerator with drawers |
| Drawers | 4 |
| Capacity | 12.2 cu. ft. |
| Temperature Range | 35°F - 38°F |
| Refrigerant | R290 |
| Horsepower | 1/6 HP |
| Voltage | 115V / 60 Hz / 1 phase |
| Current | 3.4 A |
| Plug Type | NEMA 5-15P (15A / 125V) |
| Controller | Electronic temperature controller |
| Construction | Stainless steel exterior and interior, reinforced stainless steel top |
| Handles | Recessed |
| Gaskets | Magnetic drawer gaskets |
| Pans Included | 1/6 size pans |
| Casters | 2" heavy duty swivel plate, pre-installed |
| Exterior Dimensions (W x D x H) | 48-1/4" x 30" x 32-3/8" |
| Net Weight | 271 lb |
| Gross Weight | 348 lb |
| Certifications | Conforms to UL STD. 471; certified to CSA STD. C22.2 No.120 |
| Related Models | AUR27D2 (2 drawers, 6.5 cu ft), AUR36D2 (2 drawers, 9 cu ft), AUR60D4 (4 drawers, 15.5 cu ft), AUR72D6 (6 drawers, 18.9 cu ft) |
| Warranty | 3 year parts and labor; 5 year compressor part |
Optional Accessories
Caster height changes the overall height of the cabinet. Atosa lists the following options with and without brakes.
| R06001000228 / R06001000229 | 1.2" swivel plate casters (with / without brake) — 31-1/4" overall height |
|---|---|
| R06001000063 | 1.5" swivel plate caster (with brake) — 31-7/8" overall height |
| B0604434 / B0604433 | 2" heavy duty swivel plate casters (with / without brake) — 32-3/8" overall height, standard |
| B0604421 / B0604413 | 4" swivel stem casters (with / without brake) — 34-3/8" overall height |
| B0604007 / B0604006 | 5" swivel stem casters (with / without brake) — 35-1/4" overall height |
| Extended Warranty | Available up to 5 years |
Frequently Asked Questions
How much can the AUR48D4 hold?
12.2 cu. ft. across four pan drawers, in a cabinet 48-1/4" wide by 30" deep by 32-3/8" high on its standard 2" casters.
What temperature does the AUR48D4 hold?
It maintains between 35°F and 38°F, which is the range Atosa recommends for food preservation.
What pans does it take?
It ships standard with 1/6 size pans. Optional configurations cover 1/1, 1/2, 1/3 and 1/4 pan layouts.
What are the electrical requirements?
115V, 60 Hz, single phase, drawing 3.4 A through a NEMA 5-15P plug rated 15A / 125V. The compressor is 1/6 HP on R290 refrigerant.
Can the caster height be changed?
Yes. It ships on 2" heavy duty swivel plate casters at 32-3/8" overall height. Low profile 1.2" and 1.5" plate casters drop it to 31-1/4" or 31-7/8", and 4" or 5" swivel stem casters raise it to 34-3/8" or 35-1/4".
How does the AUR48D4 compare to the other AUR drawer models?
The AUR27D2 is 27-1/2" wide with 2 drawers and 6.5 cu ft, the AUR36D2 is 36-3/8" with 2 drawers and 9 cu ft, the AUR48D4 is 48-1/4" with 4 drawers and 12.2 cu ft, the AUR60D4 is 60-1/4" with 4 drawers and 15.5 cu ft, and the AUR72D6 is 72-5/8" with 6 drawers and 18.9 cu ft. All are 30" deep and 32-3/8" high.
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | AUR48D4 |
| Brand | Atosa USA |
| Weight | 348.00 lbs |
| Dimensions (HxWxD) | 38.00 x 51.00 x 33.00 inches |
| Height | 38.00 |
| Width | 51.00 |
| Depth | 33.00 |
| Size | 2 section |
| Refrigeration | self-contained, rear mounted |
| Access Type | drawers |
| Width | 48" - 59" |
| Exterior Finish | stainless steel exterior |
| Compressor HP | 1/6 HP |
|
