Atosa USA CB3T021 Coffee & Tea Brewer, Tall Twin, 160 Cups/Hr, 5" Touchscreen, Hot Water Dispenser, Dual Voltage

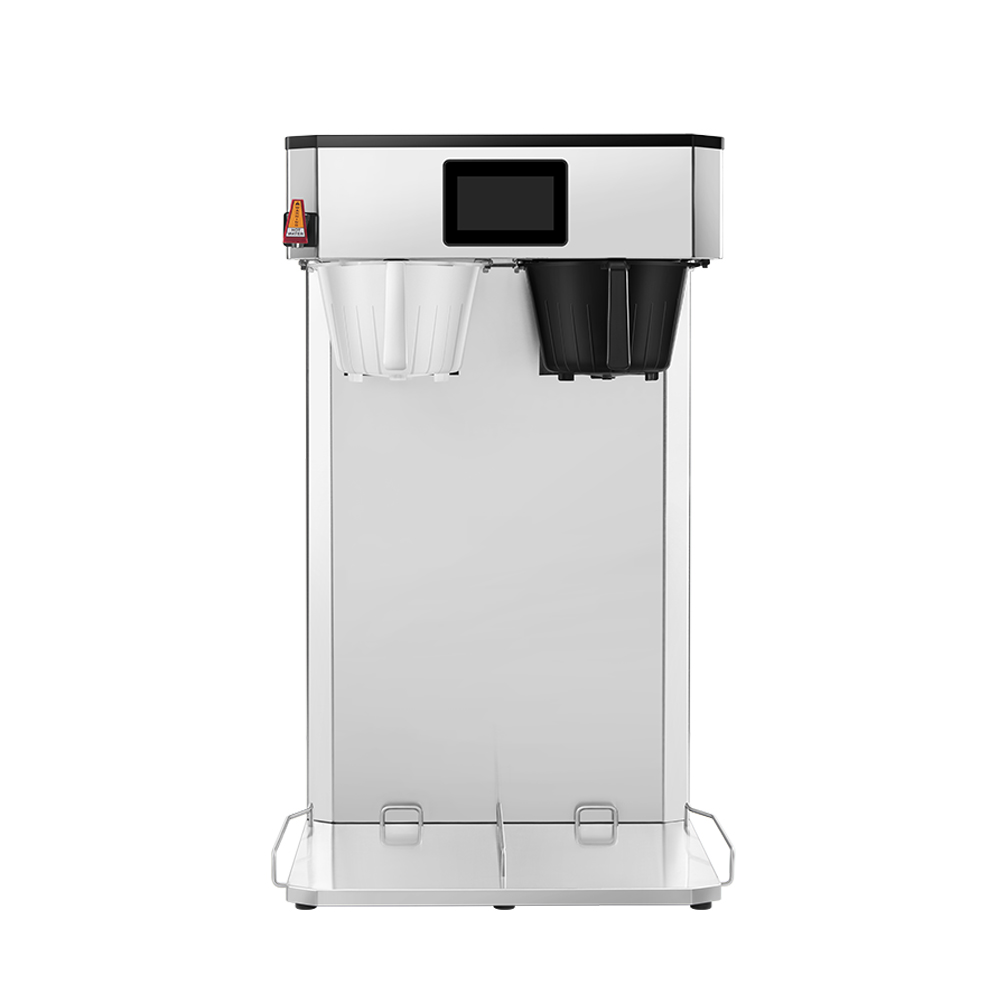

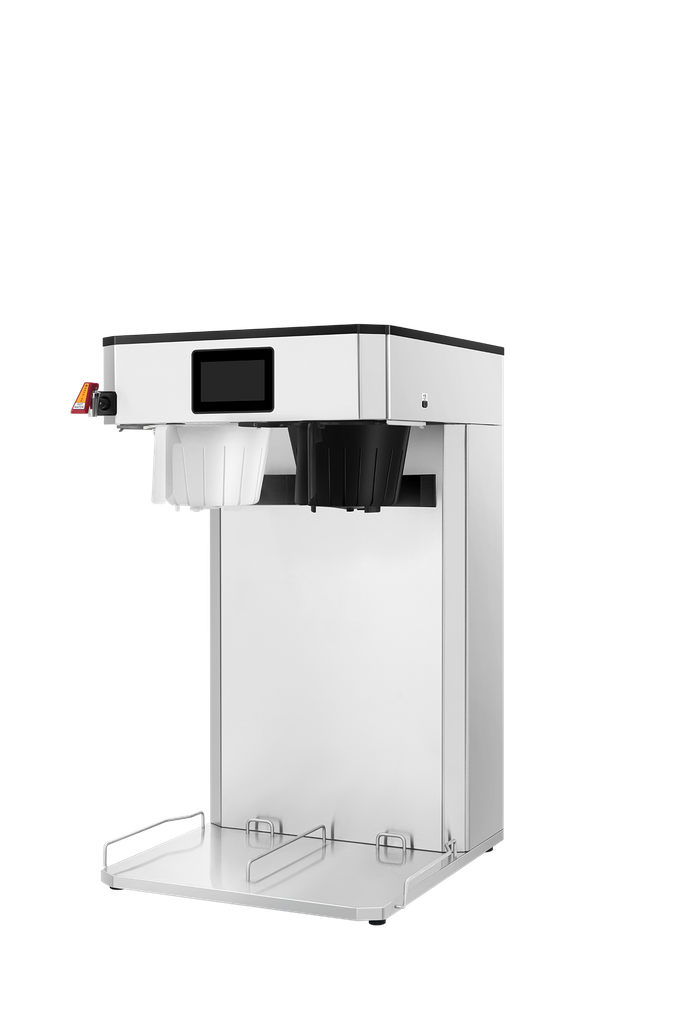

Atosa USA CB3T021 — Tall Twin Coffee and Tea Brewer
The CB3T021 is the tall twin station brewer in Atosa's CB3 line: up to 160 cups (12 gallons) of coffee or tea per hour from a 21-5/8" wide stainless body with two brew stations, a 5" color touchscreen, programmable brew recipes and a built-in hot water dispenser. The extra height clears a 3 gallon server or tea dispenser under the brew cone.
Key Features of the CB3T021
A commercial brewer is judged on two things: how fast it refills the line at peak, and whether every batch tastes like the last one.
Twin Stations, 160 Cups per Hour
Two brew stations in one body mean a fresh batch can start while the first is still being poured, at 12 gallons an hour in total.
Sprayhead, Pre-Infusion and Pulse Brew
The sprayhead spreads water evenly over the bed, pre-infusion lets the grounds bloom first, and timed pulses keep saturation even through the cycle.
5" Color Touchscreen
Programmable brew recipes are saved and recalled with one touch on a 5" color touchscreen, and settings upload over USB.
Field Adjustable Dual Voltage
The same machine runs 120V two wire plus ground or 208-240V three wire plus ground, so it suits the circuit the site already has.
Built-In Hot Water Dispenser
Hot water is drawn straight off the machine for tea and instant service, recovering 3.0 to 3.7 gal/hr at 1440W and 4.6 to 7.4 gal/hr at 2180-2880W.
Energy-Saver Mode and Brew Counter
Energy-saver mode drops tank temperature during idle periods, and a brew counter tracks total cycles for maintenance scheduling.
Installation note: the water inlet is 3/4" MNPT and the brewer ships with a 3/8" O.D. push-to-connect x 3/4" FNPT connector and 3/8" O.D. tubing. Supply water pressure must be between 7.3 and 87 psi (0.05 to 0.6 MPa). Leave at least 5-7/8" (150 mm) of clearance on all sides for operation and heat dissipation.
Ideal Applications
A tall twin brewer is for the counter that has to pour continuously and cannot stop to wait for a cycle.
CB3T021 Specifications
| Model | CB3T021 |
|---|---|
| Brand | Atosa USA |
| Type | Coffee and tea brewer, tall, twin station |
| Brew Capacity | Up to 160 cups (12 gallons) per hour |
| Server Capacity | 3 gal / 11.36 L |
| Controls | 5" color touchscreen, programmable brew recipes, USB programming |
| Brewing Technology | Sprayhead, pre-infusion, pulse brew |
| Hot Water Dispenser | Standard |
| Hot Water Recovery | 3.0 - 3.7 gal/hr at 1440W; 4.6 - 7.4 gal/hr at 2180-2880W |
| Voltage | 120V or 208-240V / 60 Hz, field adjustable |
| Power | 1440W at 120V; 2180-2880W at 208-240V |
| Current | 12 A at 120V; 10.4-12 A at 208-240V |
| Plug Type | NEMA L14-20 standard; NEMA 5-15P optional |
| Water Inlet | 3/4" MNPT; 3/8" O.D. push-to-connect x 3/4" FNPT connector and 3/8" O.D. tubing included |
| Water Pressure | 7.3 - 87 psi (0.05 - 0.6 MPa) |
| Clearance | 5-7/8" (150 mm) on all sides |
| Construction | Stainless steel body |
| Exterior Dimensions (W x D x H) | 21-5/8" x 21-7/8" x 35-3/4" |
| Shipping Dimensions (W x D x H) | 24-3/8" x 26" x 38-5/8" |
| Net Weight | 61.40 lb |
| Gross Weight | 77.16 lb |
| Certifications | Conforms to NSF/ANSI STD. 4 |
| Related Models | CB3L011 (short, single), CB3L021 (short, twin), CB3T011 (tall, single) |
| Warranty | 1 year parts and labor |
Optional Accessories
Tall brewers take the drip tray tea dispensers; the short-model dispensers do not fit under this frame.
| TD-3T-DT | 3 gal (11.36 L) tall tea dispenser with drip tray, NSF certified |
|---|---|
| TD-5T-DT | 5 gal (18.93 L) tall tea dispenser with drip tray, NSF certified |
| NEMA 5-15P | Optional plug configuration for 120V installation |
| Servers and Dispensers | Supports standard 1 - 1.5 gal and larger coffee servers or tea dispensers |
Frequently Asked Questions
How much coffee can the CB3T021 brew in an hour?
Up to 160 cups, which is 12 gallons of coffee or tea per hour, across two brew stations.
What voltage does the CB3T021 need?
It is field adjustable for either 120V two wire plus ground or 208-240V three wire plus ground. At 120V it draws 12 A and 1440W; at 208-240V it draws 10.4 to 12 A and 2180 to 2880W. NEMA L14-20 is standard on this model and NEMA 5-15P is optional.
Does the CB3T021 dispense hot water?
Yes. A hot water dispenser is standard, recovering 3.0 to 3.7 gal/hr at 1440W and 4.6 to 7.4 gal/hr at 2180-2880W.
Which tea dispensers fit the tall CB3T021?
The TD-3T-DT and TD-5T-DT tall dispensers with drip tray work with both short and tall brewers. The TD-3L-ND and TD-5L-ND short dispensers only fit the short CB3L011 and CB3L021.
What plumbing does the CB3T021 need?
A 3/4" MNPT water inlet with supply pressure between 7.3 and 87 psi (0.05 to 0.6 MPa). A 3/8" O.D. push-to-connect x 3/4" FNPT connector and 3/8" O.D. tubing are included.
How does the CB3T021 compare to the other CB3 brewers?
The CB3T021 is the tall twin at 21-5/8" wide and 35-3/4" high with a 3 gal capacity. The CB3T011 is the tall single at 11-5/8" wide with 1.5 gal, the CB3L021 is the short twin at 28-1/2" high with 3 gal, and the CB3L011 is the short single with 1 gal. All four brew up to 160 cups per hour.
