Atosa USA EHS-OW-4 Electric Steam Table, 4 Open Wells, 58-1/4"W, Dry Heat, 1900W, 120V
Atosa USA EHS-OW-4 — 4 Well Electric Steam Table, 58-1/4"

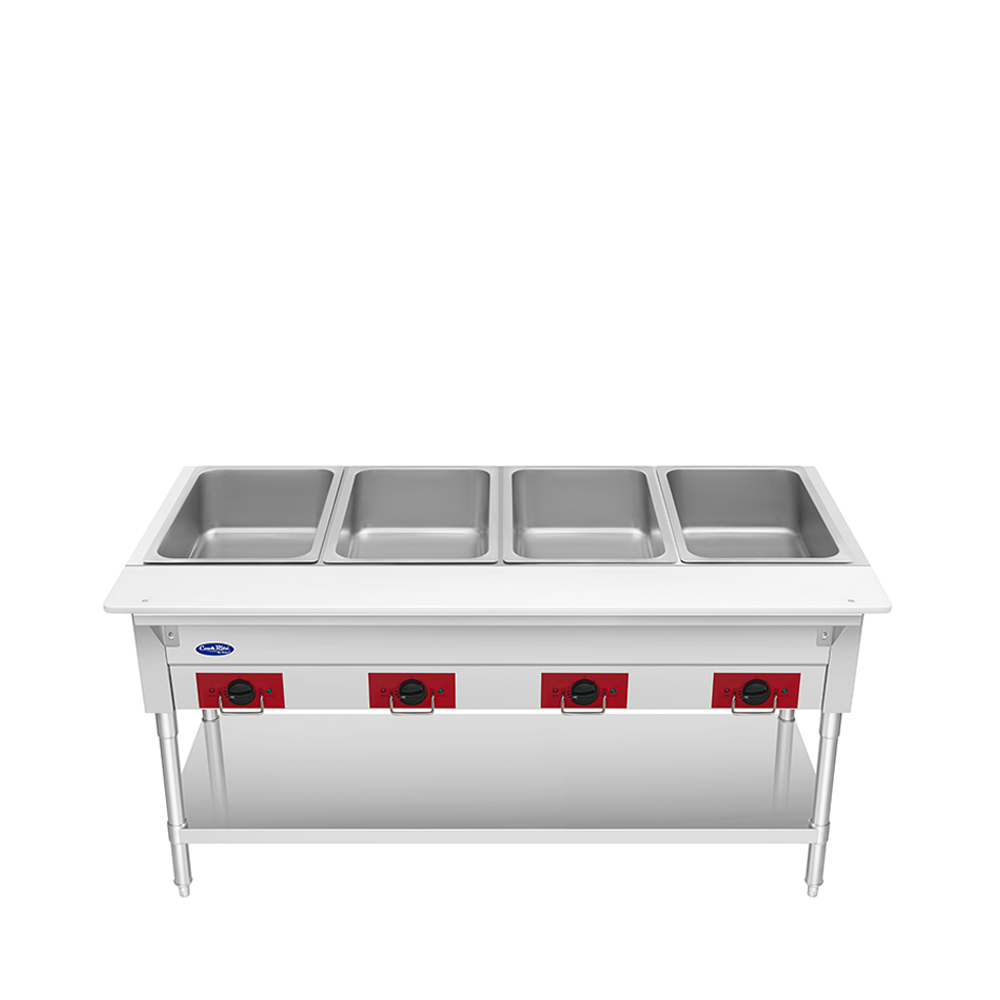

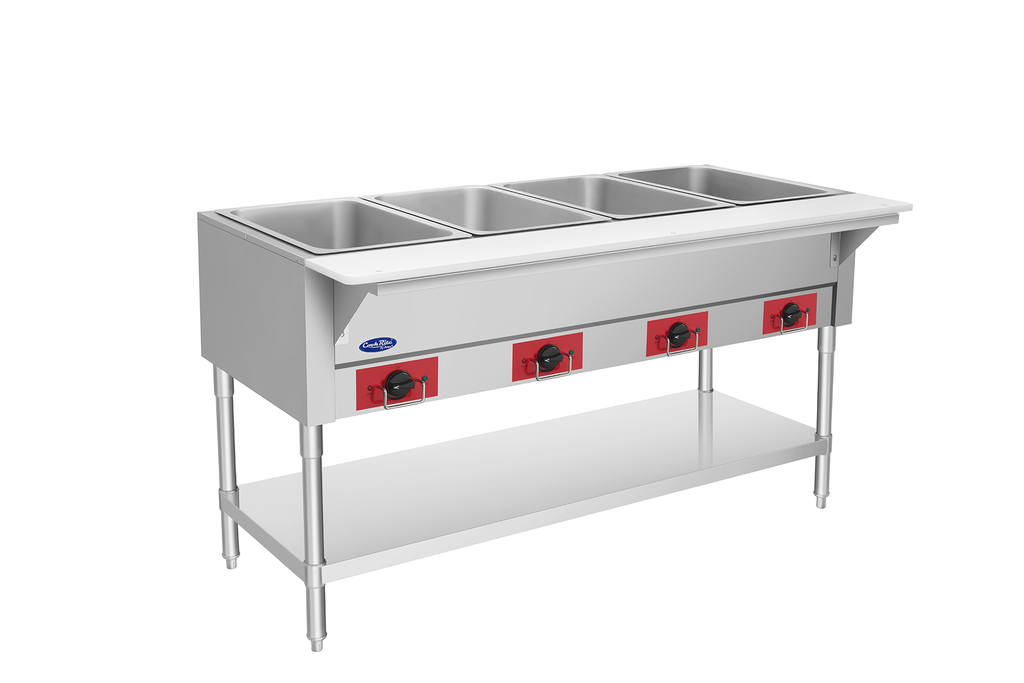

The EHS-OW-4 is a four well electric steam table in a 58-1/4" stainless steel body, drawing 1,900 W at 120V through a NEMA 5-20P plug. Each well is fully insulated on all four sides and the bottom, 8" deep, dry heating style, and carries its own 475 W element and infinite switch. Die-stamped 12" x 20" openings with a rising lip take full-size 6" deep pans, and water pans are standard.
Key Features of the EHS-OW-4
A holding table is judged on whether the fourth pan is as hot as the first at the end of a two hour service, and on how the operator gets there without cooking the food twice.
Four Fully Insulated Open Wells
All four sides and the bottom of every well are insulated with fiberglass, in an 8" deep dry heating style open well, so heat goes into the pan instead of into the cabinet.
An Infinite Switch on Every Well
Each well has its own infinite switch, so soup at one end and a delicate vegetable at the other can be held at different settings on the same table.
475 W per Well, 1,900 W Total
Four 475 watt elements draw 1,900 W at 120V through a NEMA 5-20P plug, so the table plugs into a 20 amp receptacle rather than needing three phase service.
12" x 20" Die-Stamped Openings
Stainless steel die-stamped openings with a rising lip around each well keep spills out of the cabinet and let full-size 6" deep pans drop in and lift out cleanly.
18 Gauge Stainless Top, Body and Under Shelf
The top, body and under shelf are 18 gauge stainless steel on tubular stainless legs with adjustable stainless feet, with a 7" x 1/2" poly cutting board on a stainless support shelf.
Indicator Lights and Guarded Switches
An indicator light on each well shows both power on and element heating, and every switch sits behind a mechanical guard so it cannot be knocked off setting during service.
Electrical note: the EHS-OW-4 is rated 1,900 W at 120V, 60 Hz and terminates in a NEMA 5-20P plug, which needs a 20 amp receptacle — a standard 15 amp outlet will not accept it. The wells are a dry heating style design and the table ships with water pans as standard.
Ideal Applications
Four wells is the working width for a service line that plates from pans rather than from the range.
EHS-OW-4 Specifications
| Model | EHS-OW-4 |
|---|---|
| Brand | Atosa USA |
| Type | Electric steam table, open well, dry heating style |
| Wells | 4 |
| Pan Capacity | (4) full-size food pans, 6" depth |
| Well Opening | 12" x 20", stainless steel die-stamped with rising lip |
| Well Depth | 8" |
| Well Insulation | Fiberglass on all four sides and the bottom |
| Element Rating | 475 W per well |
| Rated Power | 1,900 W |
| Voltage | 120V / 60 Hz |
| Plug Type | NEMA 5-20P (20A / 120V) |
| Controls | Individual infinite switch per well, mechanical switch guards |
| Indicator Lights | One per well, shows power on and element heating |
| Cutting Board | Poly, 7" wide x 1/2" thick, on 18 gauge stainless support shelf and brackets |
| Construction | 18 gauge stainless steel top, body and under shelf |
| Legs | Stainless steel tubular with adjustable stainless steel feet |
| Water Pans | Standard |
| Certification | Conforms to NSF/ANSI STD. 4 |
| Exterior Dimensions (W x D x H) | 58-1/4" x 29-1/2" x 33-1/2" |
| Net Weight | 139 lb |
| Gross Weight | 155 lb |
| Related Models | EHS-OW-2 (2 wells, 950 W), EHS-OW-3 (3 wells, 1,425 W), EHS-OW-5 (5 wells, 3,750 W, 240V) |
| Warranty | 1 year parts and labor |
Optional Accessories
An overshelf and sneezeguard sized to the table, plus a caster set, are the two options most service lines add.
| MROS-4ST | Overshelf / sneezeguard for the 4 well table — 58-2/5" x 12-1/5" x 16-1/10", 80 lb capacity |
|---|---|
| CSTEA-2-016 | Caster set (4 casters) |
| MROS-2ST | Overshelf / sneezeguard, 30-1/5" x 12-1/5" x 16-1/10", 50 lb capacity (for the EHS-OW-2) |
| MROS-3ST | Overshelf / sneezeguard, 44-3/10" x 12-1/5" x 16-1/10", 70 lb capacity (for the EHS-OW-3) |
| MROS-5ST | Overshelf / sneezeguard, 72-1/2" x 12-1/5" x 16-1/10", 85 lb capacity (for the EHS-OW-5) |
Frequently Asked Questions
How many pans does the EHS-OW-4 hold?
Four full-size food pans at 6" depth, one per well, in 12" x 20" die-stamped stainless openings.
Is the EHS-OW-4 a wet or dry steam table?
It is a dry heating style open well design, and it ships with water pans as standard.
Can each well be set separately?
Yes. Every well has its own infinite switch and its own indicator light showing power on and element heating, so the four wells can be run at four different settings.
What power does the EHS-OW-4 need?
1,900 W at 120V, 60 Hz — four 475 watt elements — terminating in a NEMA 5-20P plug, so it needs a 20 amp receptacle.
Which overshelf fits this table?
The MROS-4ST, at 58-2/5" x 12-1/5" x 16-1/10" with an 80 lb capacity. A caster set, item CSTEA-2-016, is also available.
How does the EHS-OW-4 compare to the rest of the EHS-OW line?
The EHS-OW-4 has 4 wells and 1,900 W at 120V. The EHS-OW-2 has 2 wells and 950 W, the EHS-OW-3 has 3 wells and 1,425 W, both at 120V, and the EHS-OW-5 has 5 wells and 3,750 W at 240V with 750 watt elements.
