Atosa USA SDA203608 Aluminum Dunnage Rack, 36"W x 20"D x 8"H, Heavy Duty Welded
Atosa USA SDA203608 — 36" Aluminum Dunnage Rack, 8" High

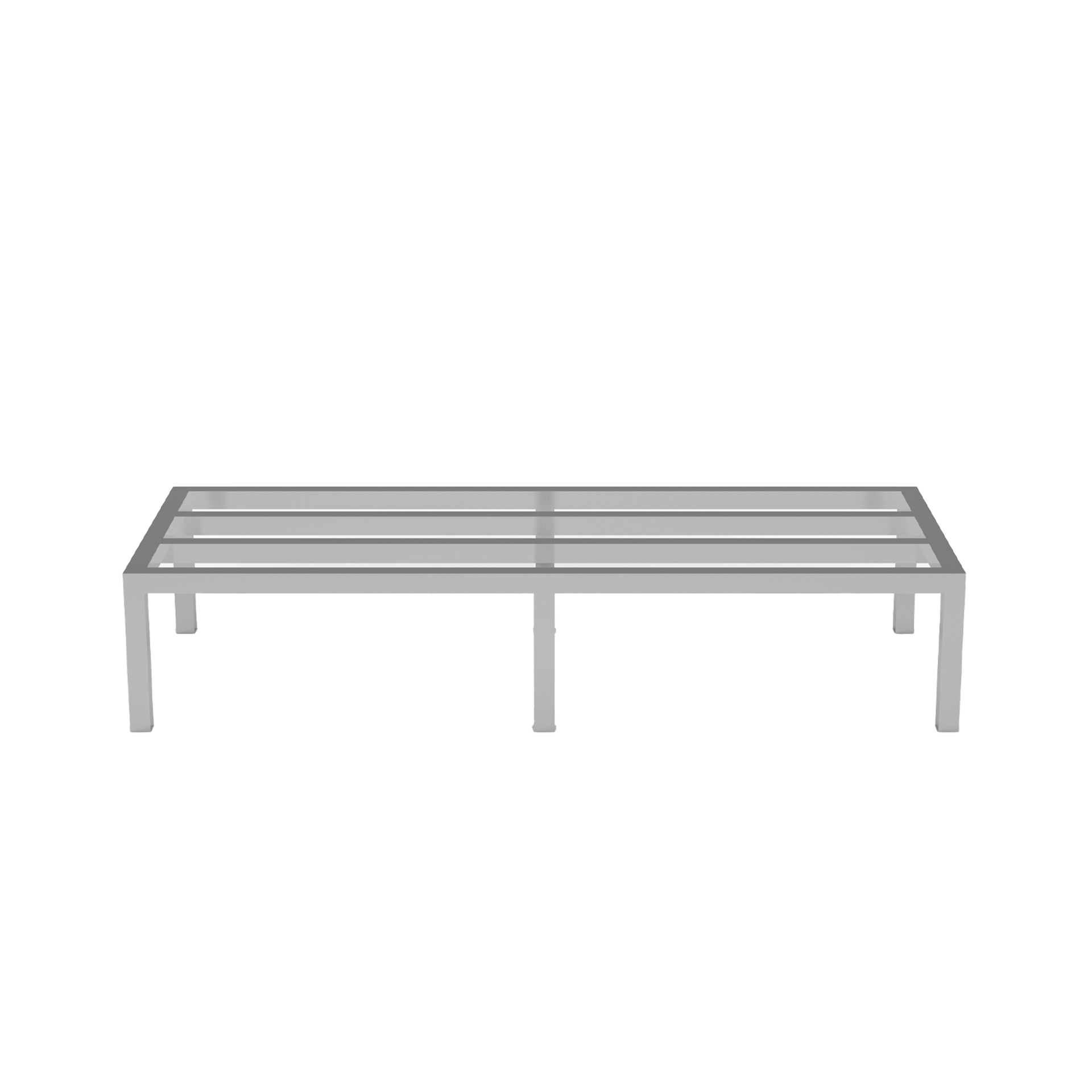

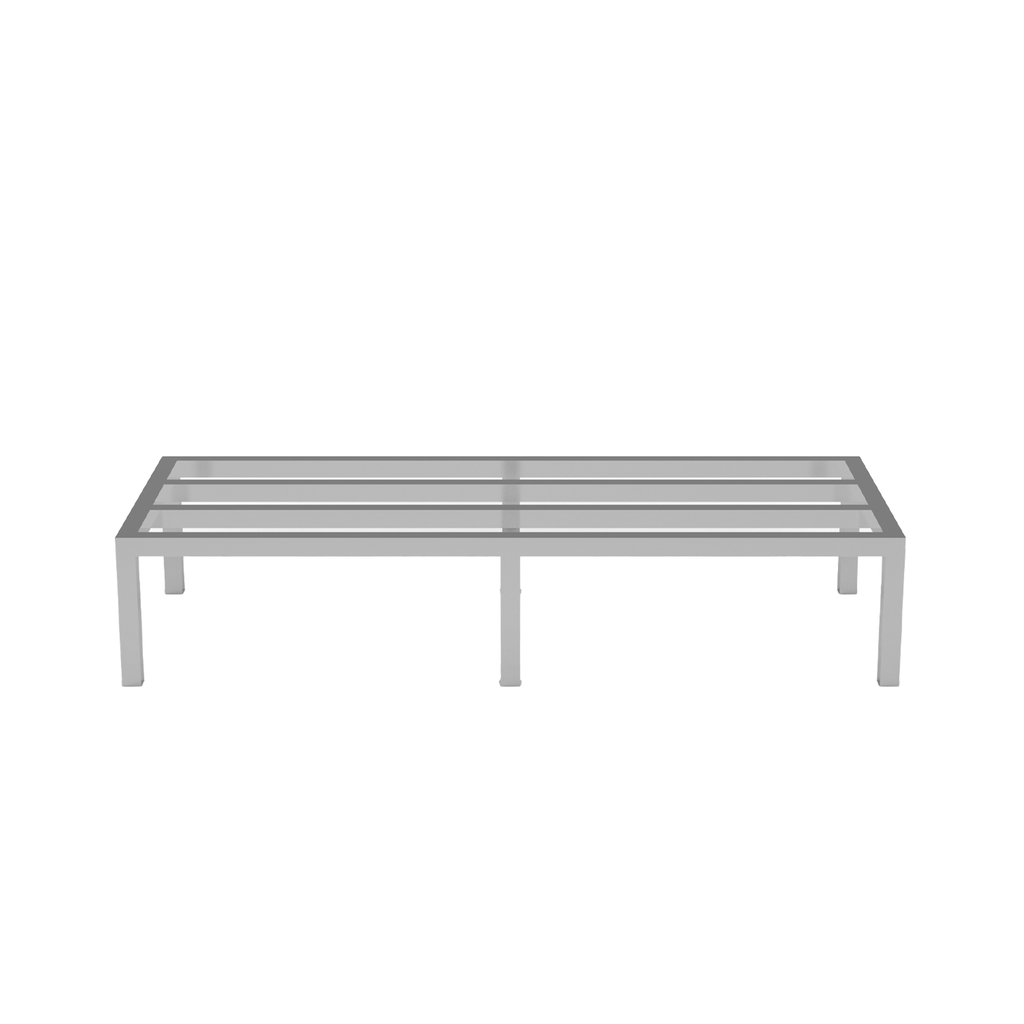

The SDA203608 is a heavy duty welded aluminum dunnage rack measuring 36" wide by 20" deep by 8" high, built from 1-1/2" x 1-1/2" aluminum tubing with a 1.2 mm wall. It lifts sacks, cases and bulk containers 8" off the floor in a walk-in or a dry store, and it is one of four widths in the same welded design.
Key Features of the SDA203608
A dunnage rack is a simple thing that has to survive a wet floor and a pallet's worth of weight, which comes down to how it is joined and what it is made from.
Heavy Duty Welded Frame
The rack is welded rather than bolted together, so there is no hardware to work loose under a load that is dropped on rather than placed.
1-1/2" Aluminum Tubing
The frame is 1-1/2" x 1-1/2" aluminum tubing with a 1.2 mm wall, which is what carries the load across the 36" span.
8" of Floor Clearance
Every rack in the line stands 8" high, which is the clearance that keeps stored product off the floor and leaves room to clean underneath it.
20" Deep Platform
A 20" depth is standard across the line, sized for cases and sacks stacked along a wall rather than out into the aisle.
Four Widths in One Design
The same welded rack is made in 24", 36", 48" and 60" widths, so a wall run can be made up from the sizes that fit rather than one fixed length.
Six Legs at 60" and Longer
Atosa notes that racks 60" and longer come with six legs, so the longer spans are carried in the middle as well as at the ends.
Sizing note: every rack in the SDA line is 20" deep and 8" high; only the width changes. Atosa notes that the racks 60" and longer come with six legs.
Ideal Applications
A dunnage rack goes wherever health code and common sense say product cannot sit on the floor.
SDA203608 Specifications
| Model | SDA203608 |
|---|---|
| Brand | Atosa USA |
| Type | Aluminum dunnage rack |
| Construction | Heavy duty, welded |
| Material | Aluminum |
| Tubing | 1-1/2" x 1-1/2", 1.2 mm wall |
| Width | 36" |
| Depth | 20" |
| Height | 8" |
| Exterior Dimensions (W x D x H) | 36" x 20" x 8" |
| Legs | Racks 60" and longer come with 6 legs |
| Related Models | SDA202408 (24" x 20" x 8"), SDA204808 (48" x 20" x 8"), SDA206008 (60" x 20" x 8") |
| Warranty | 90 days on workmanship |
Optional Accessories
Atosa does not list add-on accessories for the dunnage racks. The line is sized by width, so a longer run is built from these:
| SDA202408 | 24" x 20" x 8" aluminum dunnage rack |
|---|---|
| SDA204808 | 48" x 20" x 8" aluminum dunnage rack |
| SDA206008 | 60" x 20" x 8" aluminum dunnage rack, 6 legs |
Frequently Asked Questions
What size is the SDA203608?
36" wide, 20" deep and 8" high.
What is the SDA203608 made of?
Welded aluminum, built from 1-1/2" x 1-1/2" tubing with a 1.2 mm wall.
How much clearance does it give?
8", which is the height of every rack in the SDA line.
How many legs do the SDA racks have?
Atosa notes that the racks 60" and longer come with six legs.
What other sizes are there?
SDA202408 at 24" wide, SDA204808 at 48" and SDA206008 at 60". All four are 20" deep and 8" high.
What warranty comes with the SDA203608?
90 days on workmanship.
