Atosa USA SH17SD Hand Sink with Side Splashes, Wall Mount, 17"W, 18 Ga 304 Stainless, Gooseneck Faucet, NSF

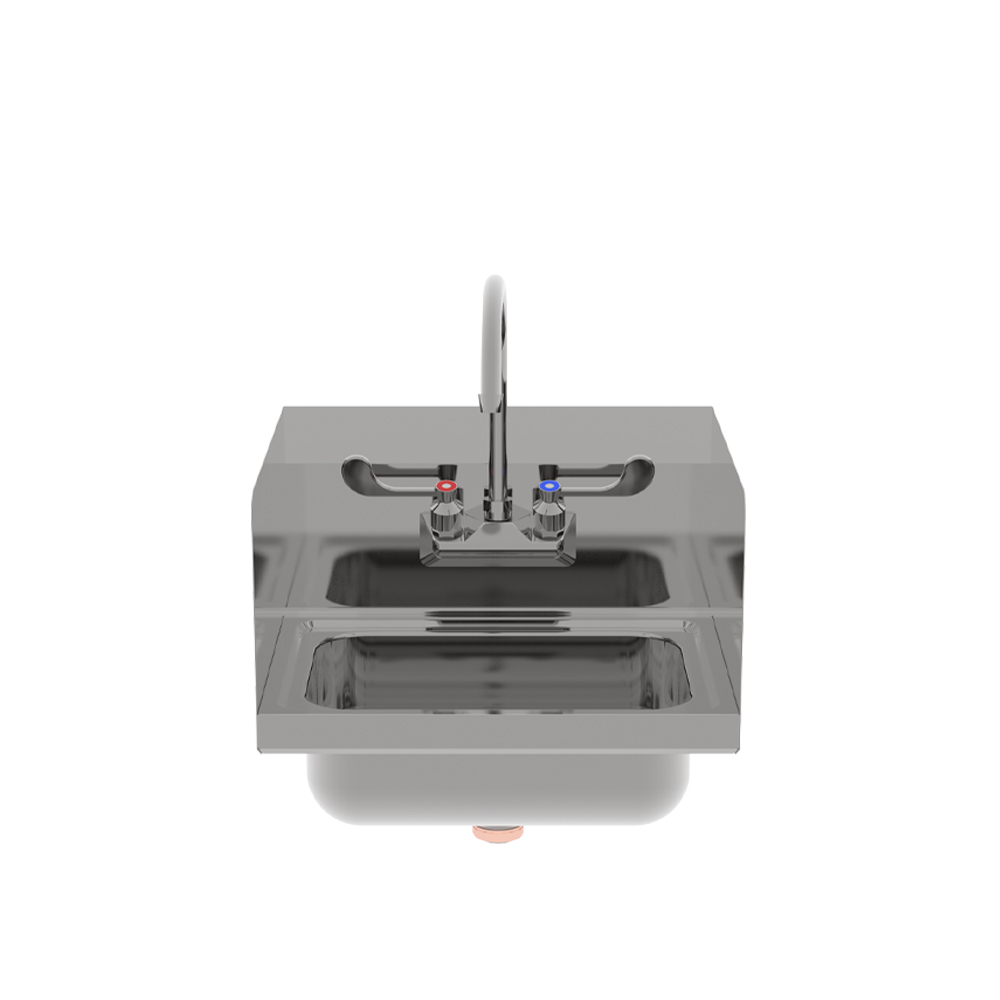

Atosa SH17SD Wall-Mount Hand Sink with Side Splashes — 17"W
The SH17SD is the side-splash version of Atosa's 17" hand sink: an 18-gauge 304 stainless wall-mount sink with a 10" x 14" x 5"-deep bowl, a 6" backsplash with 2" return, and 18-gauge 304 stainless side splashes on both sides. Those side panels matter when the sink sits between equipment or in a corner — they stop splash from running down the adjacent surface. A gooseneck faucet with wrist-blade handles is included.
What Comes With It
Side Splashes on Both Sides
18-gauge 304 stainless side splashes contain water where the sink is flanked by equipment or tucked into a corner — the reason to choose the SD over the plain SH17.
Gooseneck Faucet Included
A gooseneck faucet ships with the sink — no separate faucet order — mounted on 1-1/8" faucet holes at 4" centers.
Wrist Blade Handles
The 15" and 17" sinks come with wrist blade handles, so staff can open and close the water with a forearm instead of freshly washed hands.
Drain and Strainer
A 1-1/2" waste drain opening with strainer is included, plumbing to a 1-1/4" pipe size.
Z-Clip Mounting Bracket
The sink hangs on a Z-clip bracket in 18-gauge 304 stainless, which makes wall mounting straightforward and holds the sink square once set.
NSF Certified
Certified by NSF International to the applicable standard, so the SH17SD satisfies the hand-wash-station requirement in a commercial kitchen inspection.
Where It Works
Specifications
| Model | SH17SD |
|---|---|
| Type | Wall-mount hand sink, one compartment, with side splashes |
| Exterior Dimensions (W x D x H) | 17" x 15-3/8" x 13-1/4" |
| Bowl Size (W x front-to-back x depth) | 10" x 14" x 5" |
| Material | 18 gauge, 304 stainless steel |
| Side Splashes | 18 gauge 304 stainless, both sides |
| Wall Mounting Clip | 18 gauge, 304 stainless steel Z-clip bracket |
| Backsplash | 6" with 2" return |
| Faucet | Gooseneck, included; wrist blade handles |
| Faucet Holes | 1-1/8" on 4" centers |
| Drain | 1-1/2" waste drain opening, strainer included |
| Pipe Size | 1-1/4" |
| Net / Gross Weight | 12.56 lb / 17.19 lb |
| Certification | NSF |
| Related Models | SH17, SH17SL, SH17SR, SH15, SH15SD, SH12, SH12SD |
| Warranty | 90 days on workmanship |
Warranty
90 days warranty on workmanship, backed by Atosa USA's North American service network.
Frequently Asked Questions
What does the SD in SH17SD mean?
It designates the version with side splashes on both sides, built in 18-gauge 304 stainless steel.
What size is the bowl?
10" wide x 14" front-to-back x 5" deep, in a 17" x 15-3/8" x 13-1/4" overall body.
Does the SH17SD include a faucet?
Yes. A gooseneck faucet with wrist blade handles is included, mounted on 1-1/8" holes at 4" centers.
What drain does it use?
A 1-1/2" waste drain opening with a strainer included; the pipe size is 1-1/4".
Is a single-side splash version available?
Yes — the SH17SL has a left splash and the SH17SR a right splash.
Is the Atosa SH17SD NSF certified?
Yes, it is certified by NSF International to the applicable product standard for commercial foodservice use.
