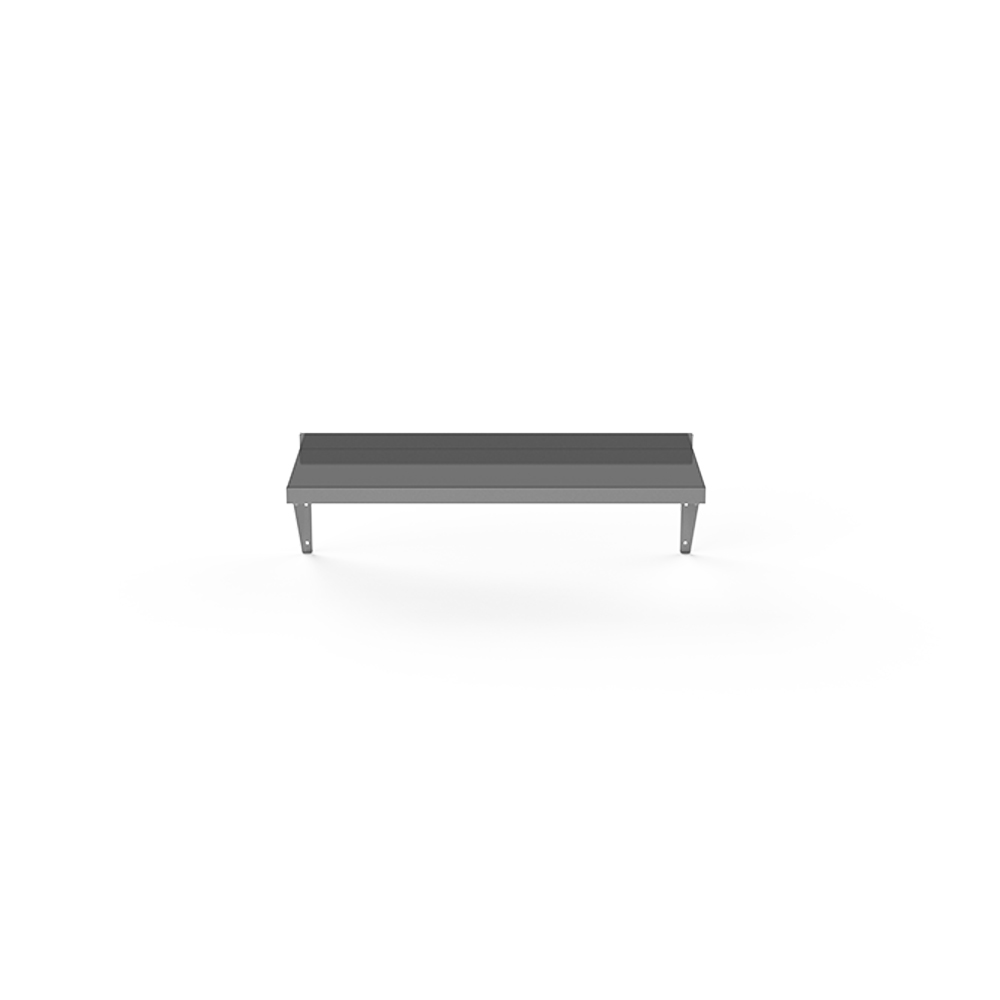

Atosa USA SWS1260/304 Wall Mount Shelf, 60"W x 12"D, 304 Stainless Steel, 18 Gauge, NSF
Atosa USA SWS1260/304 — 60" x 12" Wall Mount Shelf in 304 Stainless Steel
Five feet of overhead storage in 18-gauge 304 stainless steel, the SWS1260/304 is sized to run the full length of a standard work table or dish landing. Two welded brackets carry a 255 lb evenly distributed load, and the shallow 12-inch depth keeps the shelf out of the way of anyone working underneath it.
Key Features of the SWS1260/304
A five-foot span is where cheap shelving starts to sag. These are the specifications that keep this one flat and corrosion-free.
304 Stainless, Not 430
The /304 suffix identifies the alloy. Nickel-bearing 304 resists pitting from salt, acidic food residue and chlorinated sanitizers far better than the 430 used on economy-grade shelving.
18-Gauge Deck
An 18-gauge surface is substantially stiffer than the 20- and 22-gauge decks common at this price point — the difference between a flat shelf and a visible dip in the middle of a 60-inch run.
255 lb Rated Capacity
Rated for 255 lb evenly distributed on its two brackets — room for a full run of stacked hotel pans, cambros or plated china across the entire five-foot span.
NSF Listed
Built to NSF sanitation standards with smooth surfaces and no open seams to trap debris — what health inspectors expect on shelving hung over prep and warewashing areas.
10" Vertical Clearance
The bracket geometry sets the deck 10 inches off the mounting line, leaving usable wall space underneath for sixth pans, bottle racks and small containers.
Matches a Full Size Range
The SWS line spans 24" to 120" wide in 12", 15" and 18" depths, so a whole wall can be finished in one consistent shelving system rather than a mix of brands.
Mounting note: wall anchors are not supplied, since the correct fastener depends entirely on the wall. At 60 inches the two brackets sit well apart, so land them in studs or use hardware rated for the substrate and the full 255 lb load. The shelf is only as strong as what it is bolted to.
Ideal Applications
Sixty inches is the length that matches a standard work table, dish table or bar back run — one shelf instead of two.
SWS1260/304 Specifications
| Model | SWS1260/304 |
|---|---|
| Brand | Atosa USA |
| Type | Wall mounted shelf |
| Overall Dimensions (W x D x H) | 60" x 12" x 10" |
| Material | 304 stainless steel |
| Gauge | 18 gauge |
| Support Brackets | 2 included |
| Load Capacity | 255 lb, evenly distributed |
| Net Weight | 13 lb |
| Gross Weight | 18.51 lb |
| Sanitation | NSF listed |
| Warranty | 90 day workmanship warranty |
Frequently Asked Questions
What does the /304 in the model number mean?
It identifies the stainless alloy. The SWS1260/304 is 304 stainless steel rather than the 430 used on Atosa's standard-grade wall shelves. 304 contains nickel, which makes it noticeably more resistant to pitting and staining from salt, acidic foods and chlorine sanitizers.
How much weight will a 60-inch shelf hold?
Atosa rates the 60" x 12" shelf at 255 pounds evenly distributed across the deck on its two brackets. Concentrating that load at one point, or mounting into a wall that cannot carry it, reduces the safe working limit.
How many brackets does it come with?
Two. Atosa steps up to three brackets on the 72" and wider models in this series; everything from 24" through 60" ships with two.
Are mounting screws or wall anchors included?
No. The brackets are supplied but fasteners are left to the installer, because the right anchor depends on whether you are mounting into wood studs, metal studs, concrete block or a reinforced panel. Use hardware rated for the full load.
Is the SWS1260/304 NSF listed?
Yes. It is NSF listed for commercial foodservice use, which is what most health departments require for shelving above prep and warewashing areas.
What other sizes are available in this series?

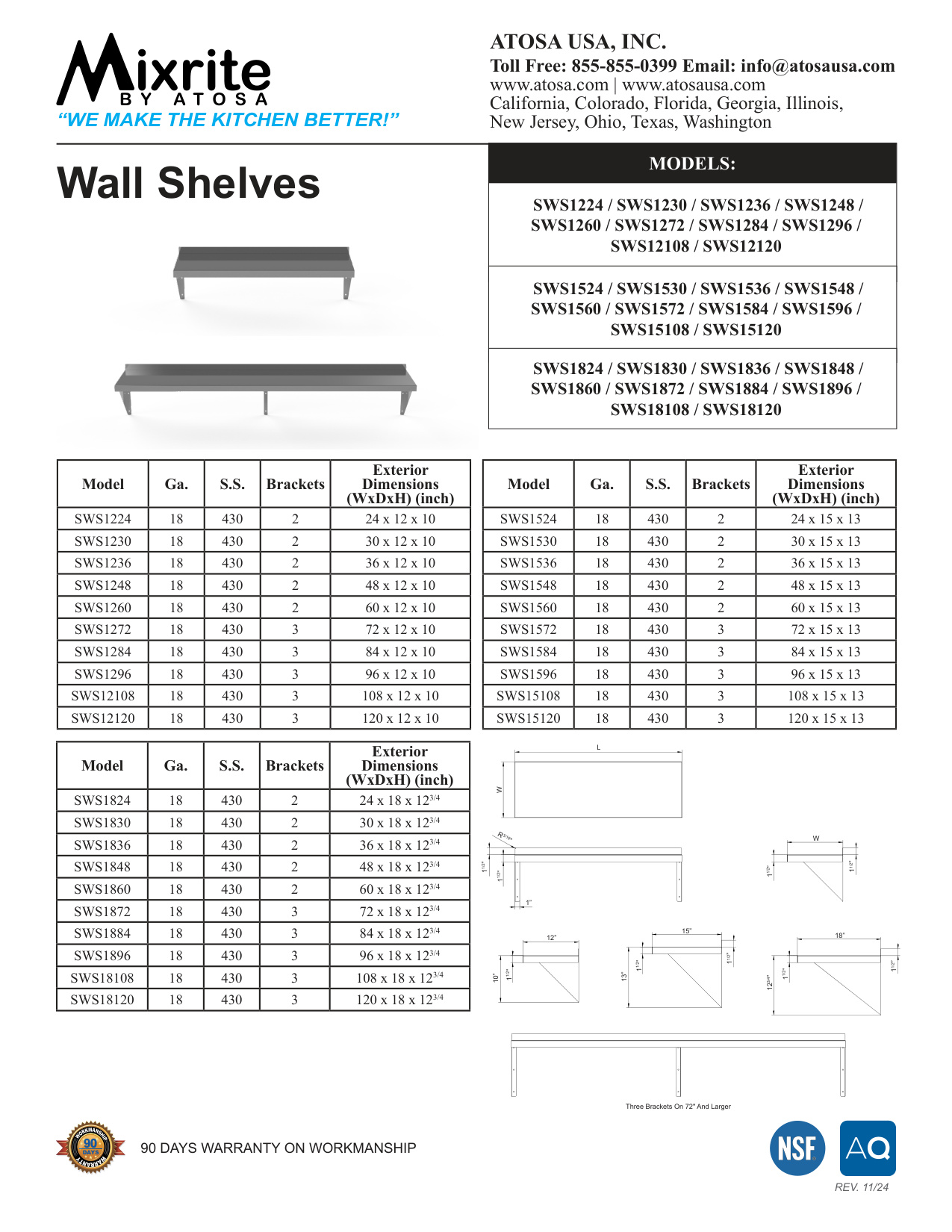

The SWS wall shelf line runs 24", 30", 36", 48", 60", 72", 84", 96", 108" and 120" wide, in 12", 15" and 18" depths.
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | SWS1260/304 |
| Brand | Atosa USA |
| Weight | 19.00 lbs |
| Dimensions (HxWxD) | 10.00 x 60.00 x 12.00 inches |
| Height | 10.00 |
| Width | 60.00 |
| Depth | 12.00 |
| Depth (front - back) | 12" |
| Type | 400 series |
| Gauge | 18 gauge |
| Width (side - side) | 60" |
| Construction | stainless steel |
|
