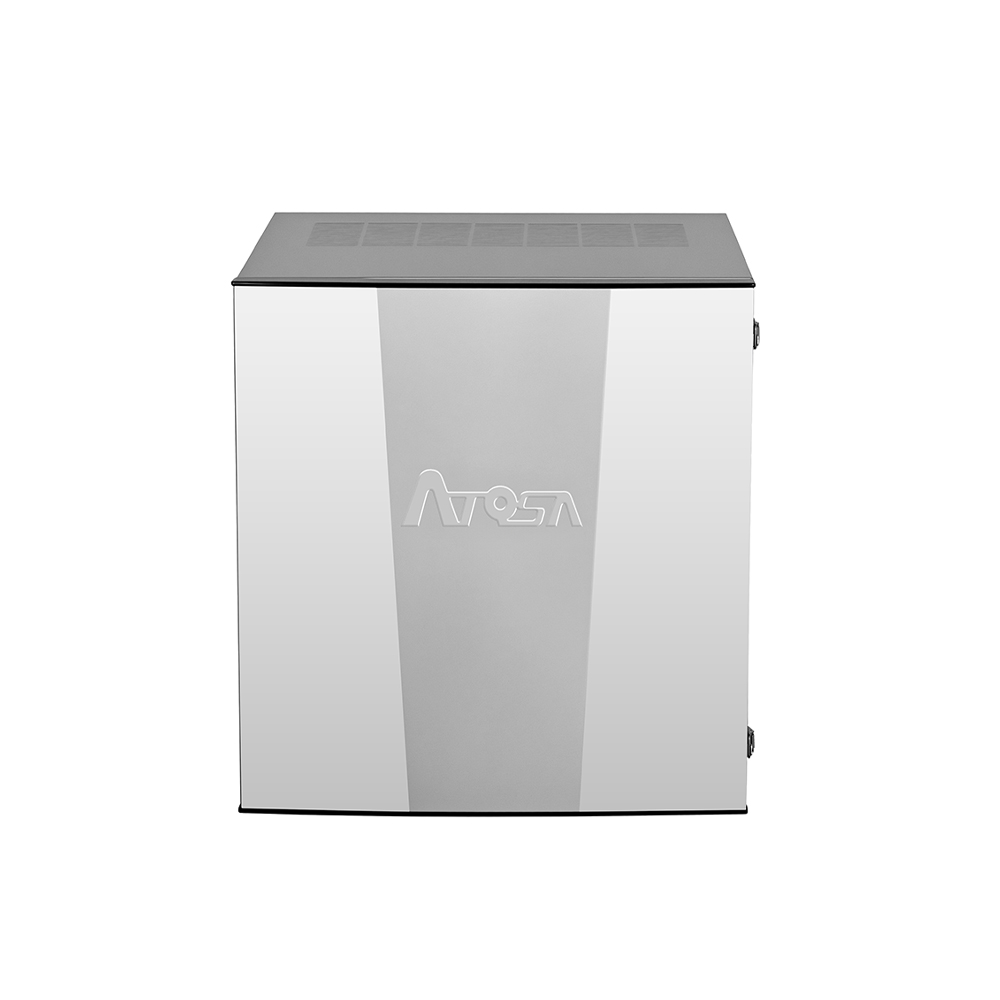

Atosa USA YRS0450A-161 Modular Ice Machine Head, 450 lb/24 hr, Half Cube, Air Cooled, 22"W, R290
Modular Ice Machine Head
450 lb Half-Cube Ice Machine on a 22" Modular Head
The Atosa USA YRS0450A-161 makes up to 450 pounds of half-diced cube ice per 24 hours from a 22" wide modular head that sits on the storage bin of your choice. That separation is the point: pick the production rate and the bin capacity independently, and replace either one later without replacing both. It runs air cooled on environmentally friendly R290 with digital control and a 3M water filter system included.
Built to Keep Running
Half-Diced Cube Ice
Produces 3/8" × 7/8" × 7/8" half-diced cubes — the all-purpose cube that packs a glass tightly and melts slowly in soda and mixed drinks.
Digital Control
Digital control runs the harvest cycle, and the screwless front panel means routine access does not start with a screwdriver.
Self-Contained, Air Cooled
A self-contained air cooled system on environmentally friendly R290 refrigerant, drawing 11.9 amps at 1150 W on a standard 115V circuit.
Removable Air Filter
The air filter pulls out for cleaning — the single most effective thing an operator can do to keep production up in a hot kitchen.
3M Water Filter Included
A 3M water filter system comes standard. Atosa recommends replacing the cartridge about every 6 months, depending on water quality.
Bin Options
An optional bin thermostat kit (BYR0400217031) stops production when the bin is full, and a bin adaptor (BYR0400235001) fits this 22" head to a 30" bin.
This is an ice machine head only — a storage bin is required and sold separately. The unit also requires a drain. Leave room around the cabinet to breathe and clean the condenser frequently; maintenance and cleaning are not covered under warranty.
Where It Works

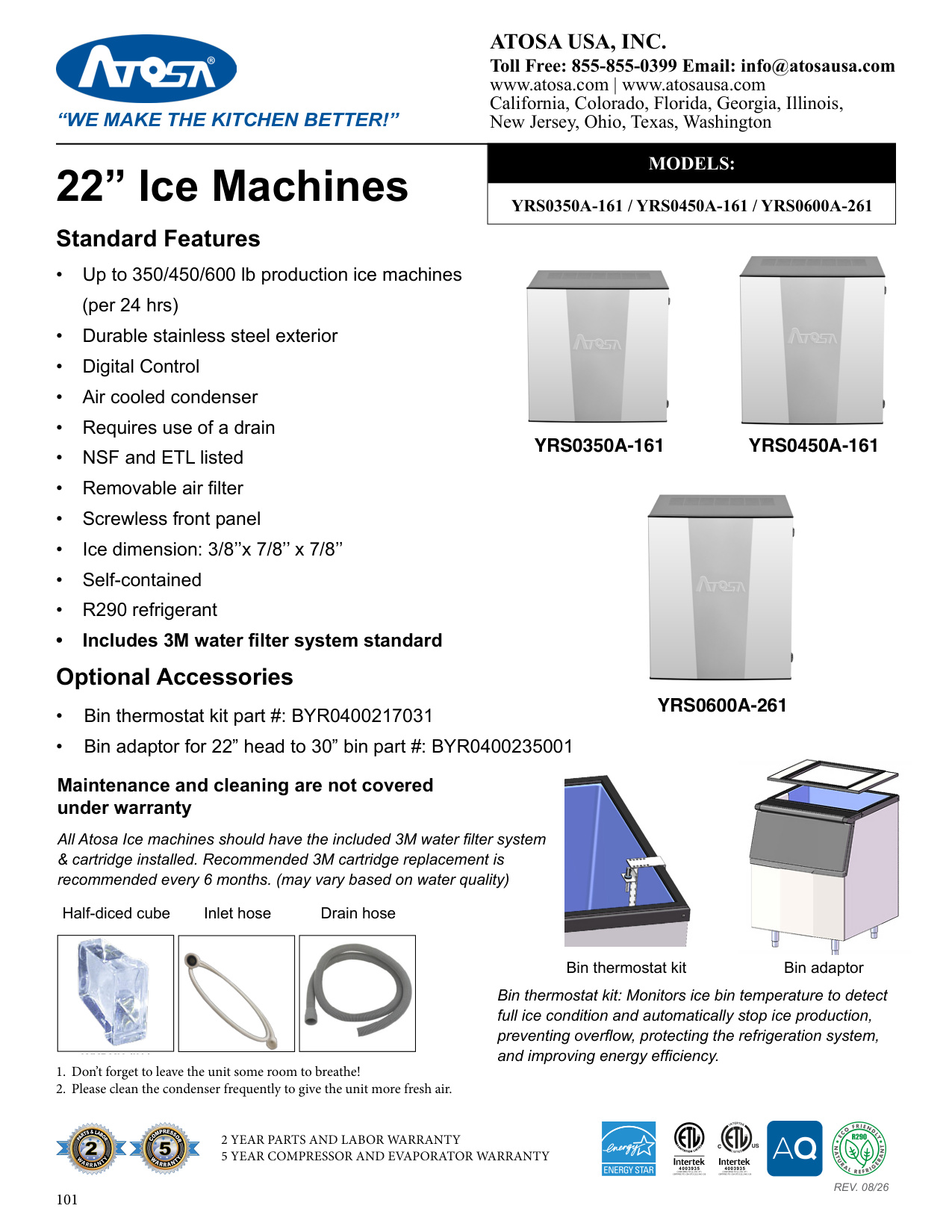

Specifications
| Model | YRS0450A-161 |
|---|---|
| Type | Modular cube ice machine head (bin sold separately) |
| Ice Production | Up to 450 lb per 24 hours |
| Ice Type | 1/2 cube, half-diced |
| Ice Dimension | 3/8" × 7/8" × 7/8" |
| Condenser | Air cooled, self-contained |
| Refrigerant | R290 |
| Control | Digital |
| Electrical | 115V / 60 Hz / 1-ph, 11.9 A, 1150 W, NEMA 5-15P |
| Exterior Dimensions | 22-3/4"W × 24-1/4"D × 25-3/4"H |
| Net Weight | 106 lb |
| Included | 3M water filter system, inlet hose, drain hose, ice scoop |
| Optional | Bin thermostat kit BYR0400217031; bin adaptor BYR0400235001 (22" head to 30" bin) |
| Certifications | NSF and ETL listed |
Covered by a 2 year parts and labor warranty plus a 5 year compressor and evaporator warranty. Maintenance and cleaning are not covered under warranty.
Frequently Asked Questions
Does the YRS0450A-161 include a storage bin?
No. It is a modular ice machine head and requires a separate storage bin. A bin adaptor, part BYR0400235001, fits this 22" head to a 30" bin.
How much ice does it make?
Up to 450 pounds of half-diced cube ice per 24 hours, at 3/8" × 7/8" × 7/8" per cube.
What electrical does it need?
115V/60Hz/1-phase on a NEMA 5-15P plug, drawing 11.9 amps at 1150 watts.
Can it stop automatically when the bin is full?
Yes, with the optional bin thermostat kit, part BYR0400217031. It monitors bin temperature to detect a full bin and stops ice production, preventing overflow.
Is a water filter included?
Yes, a 3M water filter system comes standard. Atosa recommends replacing the cartridge every 6 months, which may vary based on water quality.
What other production rates are available?
The 22" line also includes the YRS0350A-161 at 350 lb per 24 hours and the YRS0600A-261 at 600 lb per 24 hours on 208-230V.
