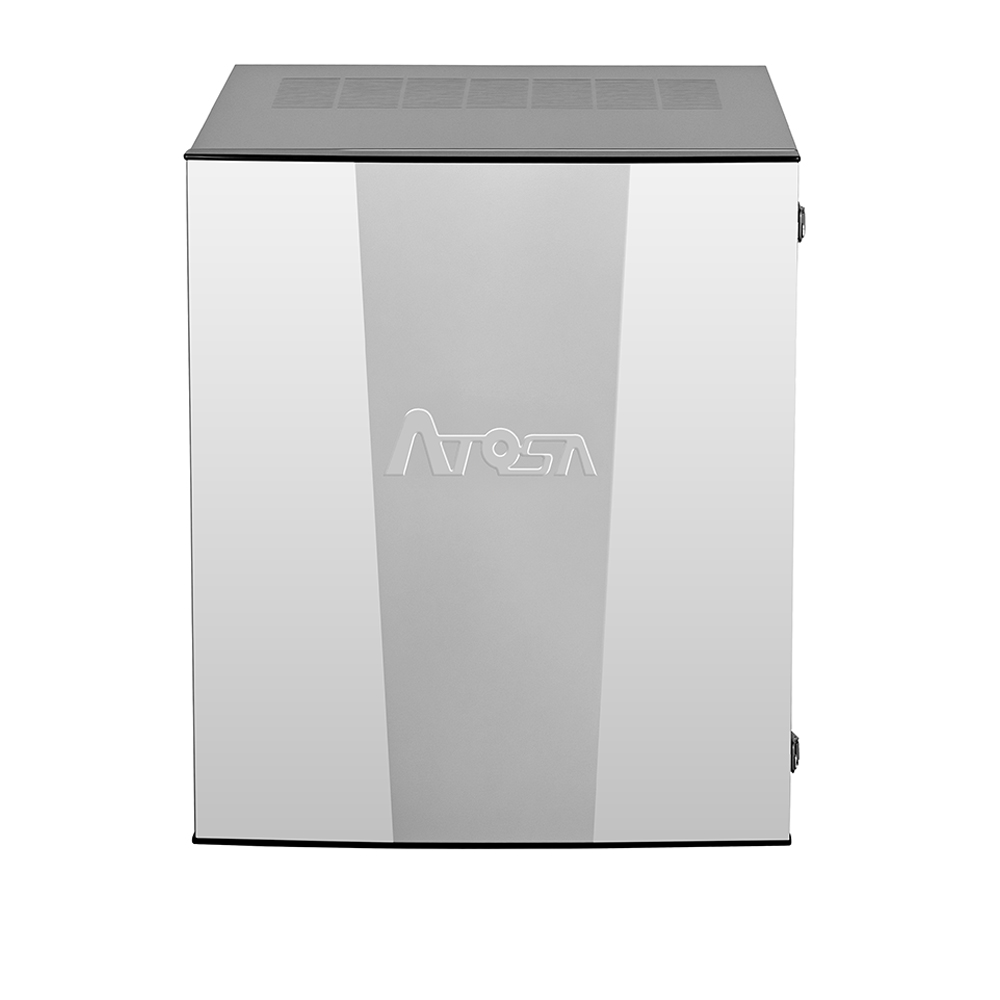

Atosa USA YRS0600A-261 Ice Machine Head, 22"W, 600 lb/24 hr, 1/2 Cube, Air Cooled, R290, 208-230V
Atosa USA YRS0600A-261 — 22" Ice Machine Head, 600 lb/24 hr
The YRS0600A-261 is a 22" modular ice machine head producing up to 600 lb of half cube ice per 24 hours on an air cooled, self-contained R290 system. Digital control runs the cycle, the stainless cabinet opens behind a screwless front panel, and a 3M water filter system is included as standard. It is NSF and ETL listed and drops onto a matching ice storage bin.
Key Features of the YRS0600A-261
An ice head is judged on what it makes in 24 hours and on how much work it takes to keep making it, which is where the filter, the air filter and the front panel matter as much as the compressor.
600 lb of Half Cube Ice a Day
The head produces up to 600 lb per 24 hours in the 3/8" x 7/8" x 7/8" half cube, the shape that packs a glass and melts slowly enough for service.
Digital Control
The cycle is set and read on a digital control rather than a mechanical dial, so a problem shows on the panel instead of in an empty bin.
3M Water Filter System Included
A 3M water filter system and cartridge ship with the machine. Atosa recommends replacing the cartridge every 6 months, which varies with water quality.
Air Cooled and Self-Contained
The condenser is air cooled and the refrigeration is self-contained on R290, so the head needs air and a drain rather than a remote rack.
Removable Air Filter, Screwless Panel
The front panel comes off without tools and the air filter pulls out for cleaning, which is the difference between condenser maintenance happening and not happening.
NSF and ETL Listed
The machine is NSF and ETL listed, and the exterior is stainless steel throughout.
Installation note: the YRS0600A-261 requires the use of a drain and runs on 208-230V, 60 Hz, single phase at 6.8 A through a NEMA 6-20P plug. Leave the unit room to breathe and clean the condenser frequently. Maintenance and cleaning are not covered under warranty, and the included 3M water filter system should be installed before the machine is put into service.
Ideal Applications
A 600 lb head is the size a busy service buys when a 22" footprint still has to cover a full day of ice.
YRS0600A-261 Specifications
| Model | YRS0600A-261 |
|---|---|
| Brand | Atosa USA |
| Type | Modular ice machine head, air cooled |
| Ice Type | 1/2 cube |
| Ice Dimensions | 3/8" x 7/8" x 7/8" |
| Ice Production | Up to 600 lb per 24 hours |
| Condenser | Air cooled |
| Refrigeration | Self-contained |
| Refrigerant | R290 |
| Control | Digital |
| Voltage | 208-230V / 60 Hz / 1 phase |
| Rated Current | 6.8 A |
| Power | 1500 W |
| Plug Type | NEMA 6-20P (250V) |
| Water Filtration | 3M water filter system included |
| Air Filter | Removable |
| Front Panel | Screwless |
| Drain | Use of a drain required |
| Construction | Stainless steel exterior |
| Exterior Dimensions (W x D x H) | 22-3/4" x 24-1/4" x 31-3/4" |
| Net Weight | 128 lb |
| Certifications | NSF and ETL listed |
| Related Models | YRS0350A-161 (350 lb/24 hr, 115V), YRS0450A-161 (450 lb/24 hr, 115V) |
| Warranty | 2 year parts and labor; 5 year compressor and evaporator |
Optional Accessories
Atosa lists two options for the 22" heads: a bin thermostat kit and an adaptor for mounting on a 30" bin.
| BYR0400217031 | Bin thermostat kit — monitors bin temperature to detect a full bin and stop ice production automatically, preventing overflow, protecting the refrigeration system and improving energy efficiency |
|---|---|
| BYR0400235001 | Bin adaptor for a 22" head to a 30" bin |
Frequently Asked Questions
How much ice does the YRS0600A-261 make?
Up to 600 lb of half cube ice per 24 hours, in the 3/8" x 7/8" x 7/8" cube.
Does the YRS0600A-261 include a storage bin?
No. It is a modular ice machine head and sits on a separate ice storage bin. Atosa lists a bin adaptor, part BYR0400235001, for mounting a 22" head on a 30" bin.
What are the electrical requirements?
208-230V, 60 Hz, single phase, drawing 6.8 A at 1500 W through a NEMA 6-20P plug. The machine also requires the use of a drain.
Is a water filter included?
Yes. A 3M water filter system and cartridge are included as standard, and Atosa recommends replacing the cartridge every 6 months, which varies with water quality.
Is the YRS0600A-261 certified?
Yes. It is NSF and ETL listed, with a stainless steel exterior.
How does the YRS0600A-261 compare to the other 22" heads?
The YRS0350A-161 makes 350 lb per 24 hours on 115V at 10.6 A and stands 22" high; the YRS0450A-161 makes 450 lb on 115V at 11.9 A and stands 25-3/4" high; the YRS0600A-261 makes 600 lb on 208-230V at 6.8 A and stands 31-3/4" high. All three are 22-3/4" wide by 24-1/4" deep.
| Warranty Option | 2-Year Parts & Labor with 5-year parts warranty on Compressor or 3-Year Parts & Labor with 5-year parts warranty on Compressor or 4-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | YRS0600A-261 |
| Brand | Atosa USA |
| Weight | 182.00 lbs |
| Dimensions (HxWxD) | 31.75 x 22.75 x 24.25 inches |
| Height | 31.75 |
| Width | 22.75 |
| Depth | 24.25 |
| Refrigeration | self-contained refrigeration |
| Width (side - side) | 20 - 29" wide |
| Ice Type | half size / half dice cubes |
| Condenser Type | air-cooled |
| Energy Efficiency | ENERGY STAR® |
| Production per 24 hr | 601 - 700 lb = 273 - 317 kg |
|
