Atosa USA YRU0140A-161 Undercounter Ice Machine with Bin, 140 lb/24 hr, 88 lb Storage, Half Cube, Air Cooled, R290
Ice Machine with Built-In Bin
140 lb Half-Cube Ice Machine with an 88 lb Bin in a 24" Cabinet
The Atosa USA YRU0140A-161 makes up to 140 pounds of half-diced cube ice per 24 hours and stores 88 pounds of it in the same cabinet — machine and bin in one 24-1/4" wide unit that can stand freely or be built in under a counter. It runs on environmentally friendly R290 with an air cooled condenser, and it ships ready to install: 3M water filter system, inlet hose, drain hose and ice scoop are all included.
Built to Keep Running
Half-Diced Cube Ice
Produces 3/8" × 7/8" × 7/8" half-diced cubes — the all-purpose cube that packs a glass tightly and melts slowly in soda and mixed drinks.
88 lb Built-In Bin

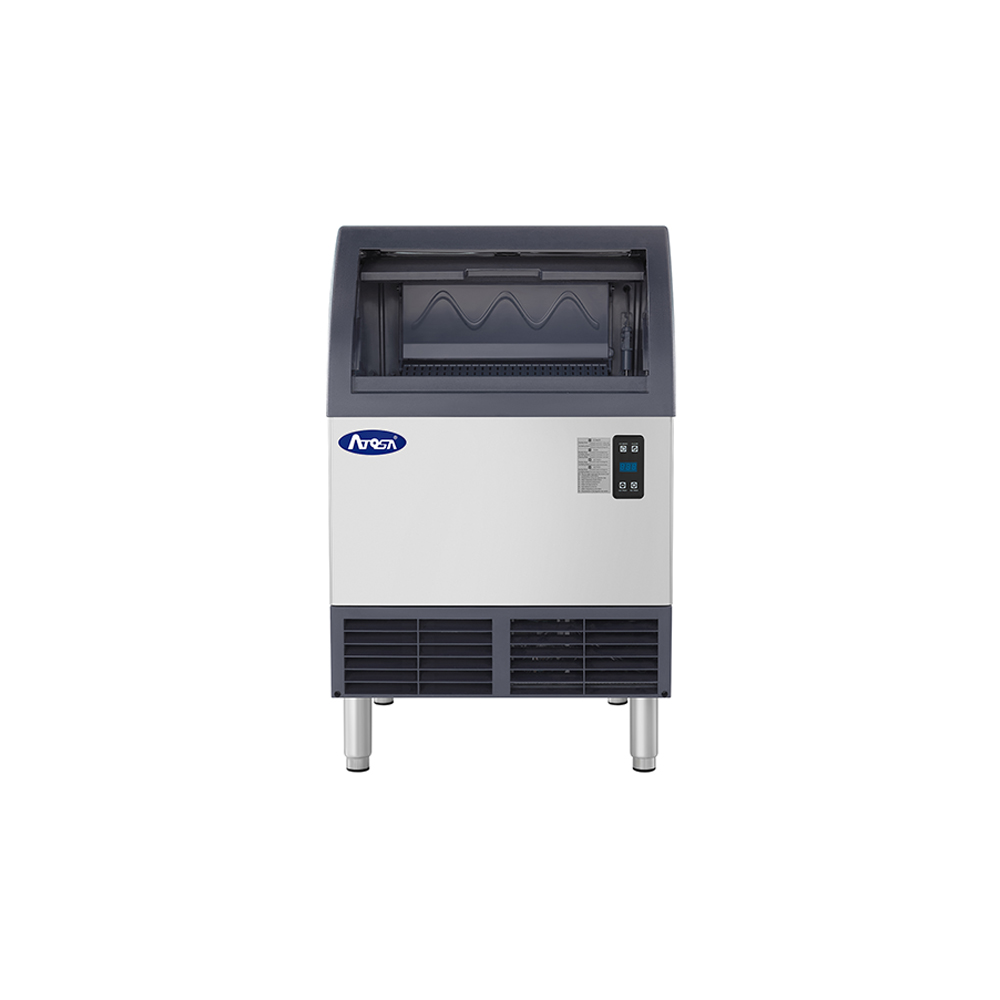

The storage bin is part of the cabinet, with a slanted blue plastic bin door that keeps the ice covered and easy to reach with the included scoop.
R290, Air Cooled
An air cooled condenser running environmentally friendly R290 refrigerant, rated at 7.04 kWh per 100 lb of ice, on a standard 115V circuit.
Removable Air Filter
The air filter pulls out for cleaning and the power switch is reachable without removing a panel — routine upkeep does not need a service call.
3M Water Filter Included
A 3M water filter system comes standard. Atosa recommends replacing the cartridge about every 6 months, depending on water quality.
Freestanding or Built-In
Approved for freestanding or built-in applications, with 6" leg levelers included in the 38-1/2" overall height.
Installation: the unit requires a drain. Water inlet is a 3/8" slip style connector accepting 3/8" OD tubing; water outlet is a 3/4" hose barb accepting 3/4" rubber hose with a clamp, and the bin drain is incorporated into the water outlet. Leave room around the cabinet to breathe and clean the condenser frequently — maintenance and cleaning are not covered under warranty.
Where It Works
Specifications
| Model | YRU0140A-161 |
|---|---|
| Type | Undercounter cube ice machine with built-in bin |
| Ice Production | Up to 140 lb per 24 hours |
| Bin Capacity | 88 lb |
| Ice Type | 1/2 cube, half-diced |
| Ice Dimension | 3/8" × 7/8" × 7/8" |
| Condenser | Air cooled |
| Refrigerant | R290 |
| Energy Use | 7.04 kWh per 100 lb |
| Electrical | 115V / 60 Hz / 1-ph, 5.3 A, 430 W, NEMA 5-15P |
| Exterior Dimensions | 24-1/4"W × 28-3/4"D × 38-1/2"H (height includes leg levelers) |
| Leg Levelers | 6" |
| Water Inlet | 3/8" slip style connector, accepts 3/8" OD tubing |
| Water Outlet | 3/4" hose barb, accepts 3/4" rubber hose (clamp needed) |
| Bin Drain | Incorporated in water outlet |
| Included | 3M water filter system, inlet hose, drain hose, ice scoop |
| Net Weight | 58 lb |
| Certifications | NSF and ETL listed |
Covered by a 2 year parts and labor warranty plus a 5 year compressor and evaporator warranty. Maintenance and cleaning are not covered under warranty.
Frequently Asked Questions
How much ice does the YRU0140A-161 make and hold?
Up to 140 pounds of ice per 24 hours, with an 88 pound built-in storage bin.
What kind of ice does it produce?
Half-diced cube ice measuring 3/8" × 7/8" × 7/8".
Can it be built in under a counter?
Yes. It is approved for freestanding or built-in applications, and the 38-1/2" overall height includes the 6" leg levelers.
What is included in the box?
A 3M water filter system, inlet hose, drain hose and an ice scoop are all included.
What are the water and drain connections?
Water inlet is a 3/8" slip style connector accepting 3/8" OD tubing. Water outlet is a 3/4" hose barb accepting 3/4" rubber hose with a clamp, and the bin drain is incorporated into the water outlet. The unit requires a drain.
How often should the water filter cartridge be changed?
Atosa recommends replacing the 3M cartridge every 6 months, which may vary based on water quality.
| Warranty Option | 2-Year Parts & Labor with 5-year parts warranty on Compressor or 3-Year Parts & Labor with 5-year parts warranty on Compressor or 4-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | YRU0140A-161 |
| Brand | Atosa USA |
| Weight | 176.00 lbs |
| Dimensions (HxWxD) | 39.00 x 24.00 x 29.00 inches |
| Height | 39.00 |
| Width | 24.00 |
| Depth | 29.00 |
| Bin Storage Capacity | 101 - 199 lb bin capacity |
| Production per 24 hr | 101 - 200 lb = 46 - 90 kg |
| Cube Type | half size/half dice |
| Energy Efficiency | ENERGY STAR® |
| Condenser Type | air-cooled |
| Finish | stainless steel |
|
