Blue Air BDD69-3S-HC 69" Stainless Steel Three Keg Draft Beer Cooler, 3 Taps
Blue Air BDD69-3S-HC — 69" Stainless Three Keg Draft Beer Cooler
The Blue Air Commercial Refrigeration BDD69-3S-HC is the all-stainless build of the 69" BDD direct draw cooler — the version to specify when the cabinet is visible rather than buried behind a bar die. Three 1/2 barrel kegs sit in 23.4 cu. ft. of refrigerated space, poured through two 3" diameter insulated stainless beer columns carrying three faucets between them. The -S suffix means stainless steel wraps the walls as well as the top, so the sides survive wet service and wipe down to a finish that suits an open kitchen, a brewery taproom or a service island customers can walk around. A 3/8 HP R-290 system on just 3.5 amps holds the whole bank at draft temperature.
Key Features of the BDD69-3S-HC
The mechanical package is shared across the BDD range; what you are really buying on this model is the stainless shell plus a three-keg bank that runs on one small compressor.
Stainless Steel Exterior, Not Just a Stainless Top
On the -S build the stainless steel top continues down the walls, where the black vinyl coated version stops at the deck. That matters wherever the cooler is seen from more than one side — a taproom service island, an open kitchen line, a hotel bar — because vinyl edges eventually lift in a wet environment and stainless does not. The interior is galvanized steel with a stainless steel floor, so the surface kegs are dragged across is the hard one.
Three Barrels, Three Faucets, Two Insulated Columns
The cabinet takes three 1/2 barrels and dispenses them through two 3" diameter stainless steel insulated beer columns — one single faucet and one double — for three handles in total. Blue Air's standard column on the BDD range is 12" of stainless steel with insulation carried down the shank, which keeps the beer standing in the tower between pours from warming and throwing foam on the first glass.
33°F to 39°F with Automatic Defrosting
The BDD range is rated 33°F to 39°F, the window where CO2 stays dissolved and a pour comes out clear instead of half head. Defrost is automatic, so nobody has to break down a three-keg bank to chip ice off the coil, and the evaporator is epoxy coated to slow the corrosion that a humid keg box otherwise causes.
R-290 Charge and Hot Gas Frame Heating
Blue Air rates the R-290 hydrocarbon charge as up to 25% more energy efficient than the HFC refrigerant it replaces, with no ozone depletion potential. Rather than running an electric heater wire around the door frames to stop condensation, the BDD69-3S-HC uses an innovative hot gas frame heating system that reclaims compressor heat — condensation control that costs nothing extra to run.
Side-Mounted, Front-Breathing, Slides Out to Service
The compressor is mounted at the side and breathes through the front, which lets the cooler drop into a 69" opening with cabinetry tight against the back and both ends without starving the condenser. The condensing unit rides on a sliding base, so a technician pulls it forward for a coil clean rather than emptying three barrels and walking the box off the line.
Two Locking Doors and Four Adjustable Shelves
Two doors with black recessed handles, standard locks and easily replaced gaskets close over the keg bank. Each section carries two adjustable shelves and enough interior height to stack three tall boy cans, so when a barrel comes off the unit turns into secure bulk can and bottle storage instead of dead space. Interior LED lighting shows what is in there without a flashlight.

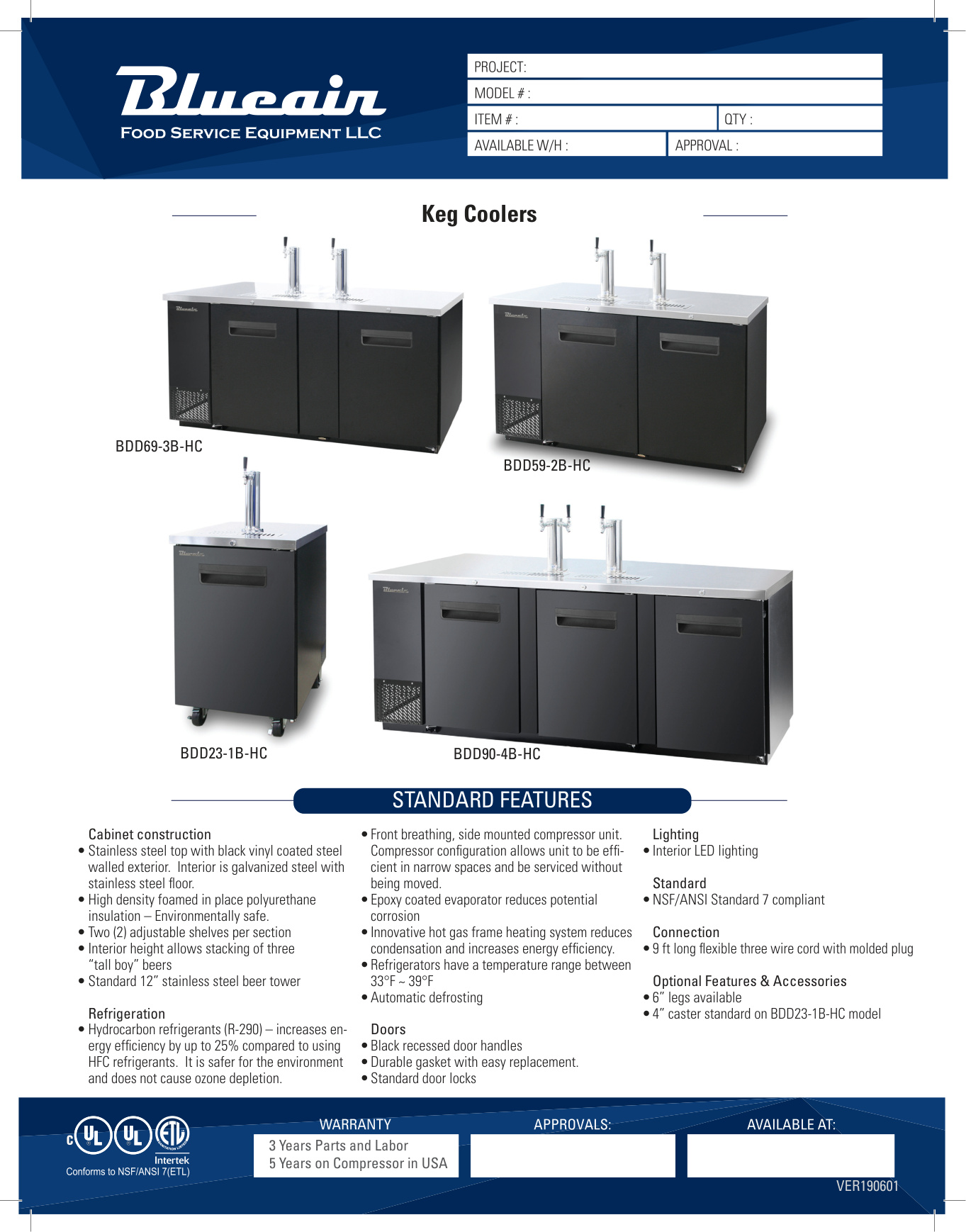

Numbers to confirm before you cut the opening: the cabinet is 37" high to the stainless top and 27-1/8" (688 mm) deep, with the 12" beer tower standing above that — check faucet height against any overhead shelf or rail. Width is worth a second look: the dealer feed and Blue Air's listing publish 69-3/8", while the family cutsheet table types 69-1/8" (1755 mm). We publish 69-3/8" and suggest planning the opening around that larger figure. Neither legs nor casters are standard at this size — 6" legs are a listed option, and 4" casters ship as standard only on the smaller BDD23 chassis — so specify one and allow for the height it adds.
Ideal Applications
Stainless is the finish you pay for when the box is part of the room rather than hidden under it.
BDD69-3S-HC Specifications
| Model | BDD69-3S-HC |
|---|---|
| Type | Direct draw draft beer cooler / keg cooler |
| Keg Capacity | (3) 1/2 barrels |
| Refrigerated Capacity | 23.4 cu. ft. |
| Dispensing | (2) 3" dia. stainless steel insulated beer columns — (1) single faucet and (1) double faucet, three taps total |
| Beer Tower | 12" stainless steel (BDD series standard) |
| Temperature Range | 33°F ~ 39°F |
| Doors | (2) locking, black recessed handles, durable easily replaced gasket |
| Shelves | (2) adjustable per section; interior height stacks three tall boy cans |
| Defrost | Automatic |
| Lighting | Interior LED lighting |
| Exterior Width | 69-3/8" (per manufacturer listing and dealer feed) |
| Exterior Depth | 27-1/8" (688 mm) |
| Exterior Height | 37" (940 mm) to stainless top |
| Refrigeration System | Self-contained, side mounted, front breathing, sliding condensing unit |
| Refrigerant | R-290 hydrocarbon |
| Insulation | High density foamed-in-place polyurethane |
| Evaporator | Epoxy coated |
| Condensation Control | Hot gas frame heating system |
| Horsepower | 3/8 HP |
| Electrical | 115V / 60Hz / 1-ph, 3.5 amps |
| Plug / Cord | NEMA 5-15P on a 9.8 ft (3 m) flexible three-wire cord with molded plug |
| Construction | Stainless steel exterior with stainless steel top; galvanized steel interior with stainless steel floor |
| Legs / Casters | 6" legs available as an option |
| Net Weight | 240 lbs (109 kg) |
| Certifications | UL, cUL, ETL-Sanitation, NSF/ANSI 7 compliant |
Frequently Asked Questions
What does the -S mean in Blue Air BDD69-3S-HC?
It identifies the exterior finish. The BDD69-3S-HC has a stainless steel exterior all round, while the BDD69-3B-HC of the same size uses a stainless top over black vinyl coated steel walls. Everything mechanical is shared: three 1/2 barrel capacity, 23.4 cu. ft., the same 3/8 HP R-290 system and the same two-tower, three-faucet arrangement. Pick stainless when the sides of the cabinet will be seen or scrubbed regularly.
How many taps does the BDD69-3S-HC come with?
Three. Blue Air ships two 3" diameter stainless steel insulated beer columns on this model — one with a single faucet and one with a double — which matches the three half barrels the cabinet holds. Splitting the handles across two towers rather than stacking all three on one column lets you place pour stations at two points along a 69" bar instead of crowding the staff into one spot.
Do three kegs fit behind only two doors?
Yes. The BDD69-3S-HC is one continuous refrigerated compartment with two doors across the front, not three separate cabinets, so door count and barrel count do not have to line up. Kegs go in through whichever door is nearest and slide along the stainless steel floor into position. Each section also has two adjustable shelves for the times a barrel is off and you need can or bottle storage instead.
What electrical service does this draft beer cooler need?
A standard 115V / 60Hz single-phase receptacle. The 3/8 HP compressor draws only 3.5 amps, so no dedicated high-amperage circuit or electrician visit is needed, and the cooler arrives with a 9.8 ft (3 m) flexible three-wire cord and a molded NEMA 5-15P plug. That length normally reaches an outlet at either end of a 69" bar run without an extension cord.
Can it be built into cabinetry with panels close to the sides and back?
Yes, within reason. The compressor is side mounted and front breathing, a configuration Blue Air designed specifically so the unit works in narrow spaces and can be serviced without being pulled out. Intake and exhaust happen at the front grille, so millwork can sit close behind and beside the cabinet — just leave the front louver completely clear and keep the sliding condensing unit reachable for coil cleaning.
Does the BDD69-3S-HC need manual defrosting?
No. Defrost runs automatically on this cooler, which matters more on a three-keg box than a single because pulling the bank apart to clear a frosted coil means the bar stops pouring. The evaporator is epoxy coated against corrosion in the damp air a keg cooler lives in, and the hot gas frame heating system keeps condensation off the door frames without an electric heater wire.
