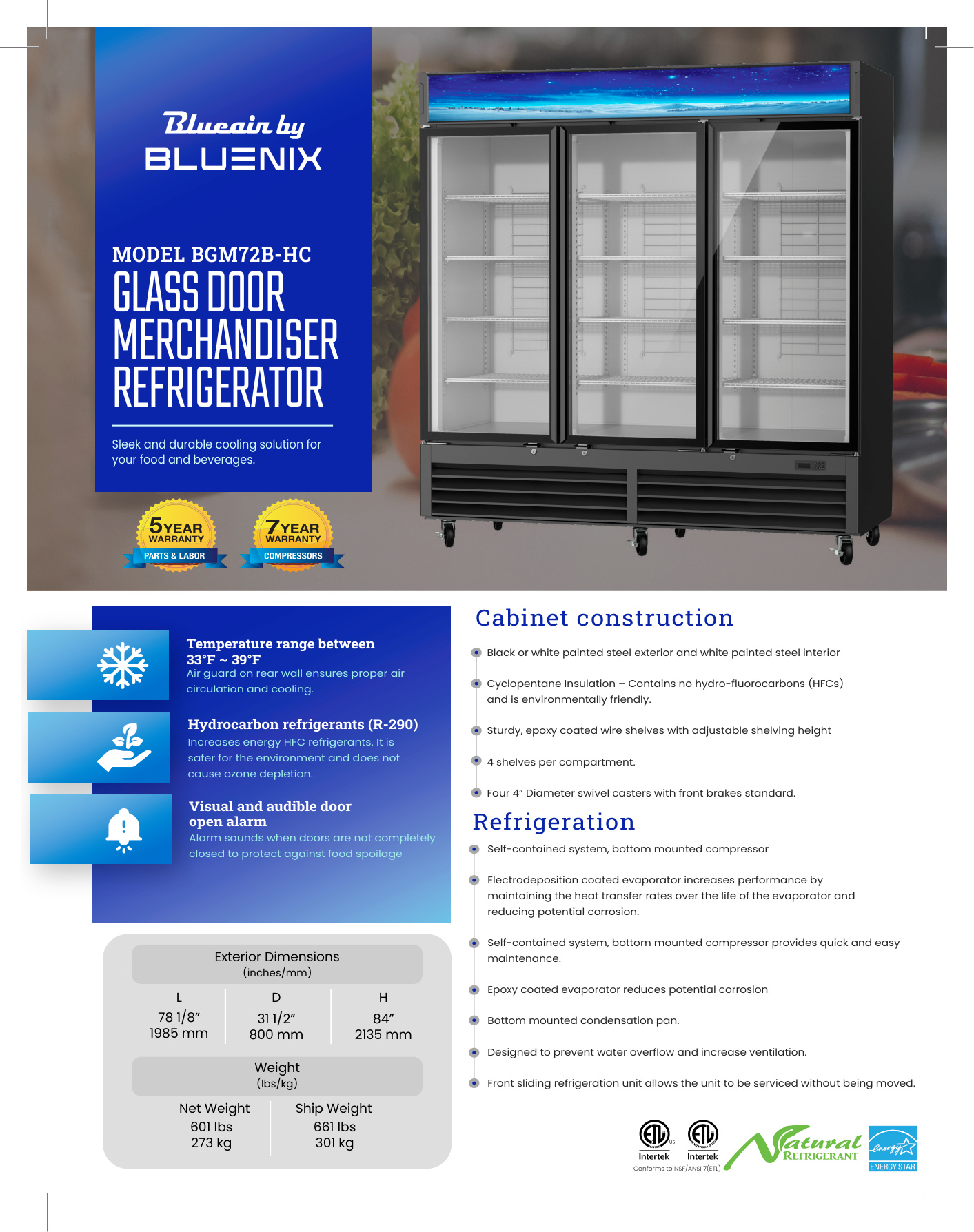

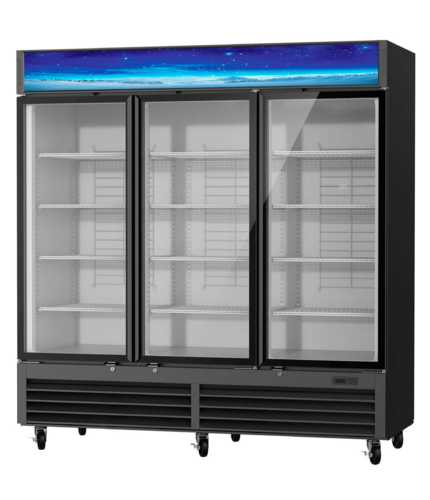

Blue Air BGM72B-HC 78" Three Glass Door Merchandiser Refrigerator, Black, 72 cu. ft.

Finish, and nothing else that affects performance. The BGM72B-HC has a black painted steel exterior and trim; the BGM72W-HC is white. Both are three-section, 72 cu. ft. merchandisers with twelve shelves, double-pane locking doors, a white painted steel interior, R-290 refrigeration and the same 9 amp draw. Choose black for dark millwork, bars and low-lit retail, white for bright grocery and cafeteria environments.

Into three separately doored compartments, each with four adjustable epoxy coated wire shelves for twelve in total. Because each bay closes on its own door, shopping one section does not pull cold air off the other two, and each section's shelf spacing can be set independently — tall for 2-liters or gallon dairy, tight for cans and single-serve. Additional shelves are available from Blue Air for a denser planogram.

No. The BGM72B-HC runs on a standard 115V/60Hz single-phase circuit at 9.0 amps and connects with a NEMA 5-15P plug on a 9.8 ft (3 m) cord, so one grounded receptacle powers all three sections. It should have its own dedicated receptacle rather than share a circuit with other equipment, since refrigeration is a continuous 24-hour load, but no high-amperage service or hard-wiring is required.

All three double-pane glass doors have standard locks, so the full display can be secured at close in an unattended space. Each door is self-closing from 90° or less and has an automatic hold-open feature at 110° for restocking. If a door is not completely closed, the cabinet raises a visual and audible alarm so staff can shut it before the compartment warms and product is lost.

It is rated 33°F to 39°F, which covers bottled and canned beverages, dairy, packaged sandwiches, salads and cut fruit. It is a refrigerator, not a freezer, and will not hold frozen product — for that Blue Air builds the BGF series of merchandiser freezers, which run -10°F to 5°F on triple-pane glass. A digital monitoring system displays the actual cabinet temperature at all times.

The cabinet is 78-1/8" wide, 31-1/2" deep and 84" tall on its standard casters, so height is the constraint on most delivery routes — a typical door frame is only 80". It weighs 661 lbs crated and 601 lbs installed. In service it needs aisle clearance in front for three swing-door arcs, and Blue Air lists 2.5" casters and 6" adjustable legs if the finished height has to change.
