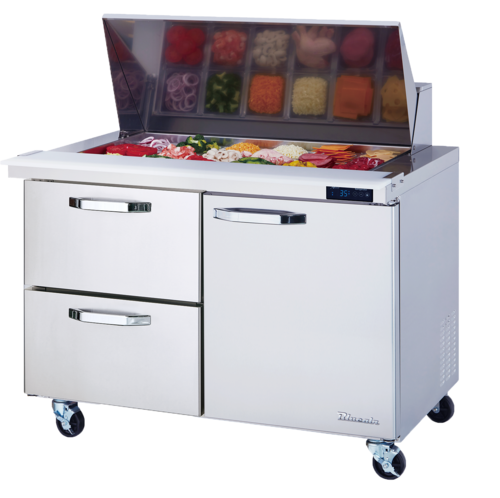

Blue Air BLMT48-D2L-HC 48" Compact Mega Top Prep Table, 2 Drawers & Right Door
Blue Air BLMT48-D2L-HC — 48" Mega Top Prep Table for Tight Lines
At 48-3/8" wide the Blue Air Commercial Refrigeration BLMT48-D2L-HC is the smallest two-section mega top in the range, yet it still carries an 18-pan rail — the sort of ingredient spread a standard 48" top cannot manage. Underneath, two drawers on the left handle panned product while a self-closing door on the right covers two adjustable wire shelves, all inside a 13.1 cu. ft. cabinet held at 33 °F to 39 °F on R-290 refrigerant.
Key Features of the BLMT48-D2L-HC
This model exists for the kitchen that cannot give up six feet of wall but still needs a real prep station rather than a small under-counter box.
Four Feet of Floor, Full-Size Rail
The cabinet measures 48-3/8" across and 33-11/64" deep, small enough to close a short cook line, yet the mega top still runs eighteen 1/6 size pans. Nothing about the top has been shortened to fit the narrower body.
18-Pan Mega Top, Pans Included
The rail arrives loaded with its full set of 1/6 size pans, and an insulated cover with a stainless steel divider stops spills from working their way into the storage area beneath.
Two Drawers Under the Working End
The left section is fitted with two drawers that take 6" deep pans, putting the day's portioned product at hand height right where the cook stands. No door has to be held open on a narrow line.
Right-Hand Door with Two Wire Shelves
The right section keeps a self-closing swing door and two epoxy-coated wire shelves whose height can be changed, so bulk containers and cases still have a home in a 13.1 cu. ft. cabinet. Additional shelves are available as an accessory.
R-290 System, 4.7 Amps
A 1/4 HP rear-mounted self-contained unit runs on R-290 hydrocarbon refrigerant and pulls only 4.7 amps at 115 V — the lowest draw of any mega top in the line. Cyclopentane insulation keeps the cabinet free of hydrofluorocarbons.
Check your clearances: the 33-11/64" depth does not include 2-3/8" for the cutting board or 2-7/32" for the rear spacers, and the 39-11/64" height does not include 5" for the casters. In a tight galley remember the right-hand door needs swing room that an all-drawer model would not.
Ideal Applications
A 48" mega top earns its place wherever floor space is the binding constraint but the menu still has a long ingredient list.
BLMT48-D2L-HC Specifications
| Model | BLMT48-D2L-HC |
|---|---|
| Type | Mega top sandwich / salad prep table, two-section |
| Base Configuration | (2) drawers left, (1) self-closing door right |
| Refrigerated Capacity | 13.1 cu. ft. |
| Pan Capacity (Top) | (18) 1/6 size pans, included |
| Drawers | (2), accommodate 6" deep pans |
| Shelves | (2) epoxy coated wire, adjustable height |
| Temperature Range | 33 °F – 39 °F |
| Exterior Width | 48-3/8" |
| Exterior Depth | 33-11/64" (843 mm), excl. cutting board & rear spacers |
| Exterior Height | 39-11/64" (995 mm), excl. casters |
| Cutting Board | 9-1/2" deep × 1/2" thick, side rail bracket included |
| Refrigeration System | Self-contained, rear-mounted compressor |
| Refrigerant | R-290 hydrocarbon |
| Horsepower | 1/4 HP |
| Electrical | 115 V / 60 Hz / 1 phase, 4.7 amps |
| Plug | NEMA 5-15P cord |
| Insulation | Cyclopentane, HFC-free |
| Construction | Stainless steel interior & exterior, galvanized steel back & bottom |
| Casters | (4) 4" swivel, front two braked |
| Net Weight | 254 lbs (115 kg) |
| Shipping Weight | 315 lbs (143 kg) |
| Certifications | cETLus, ETL-Sanitation, conforms to NSF/ANSI 7 |
Frequently Asked Questions
How is a mega top different on a 48" cabinet?
A standard 48" sandwich table tops out well short of eighteen pans; the mega top uses a deeper, extended rail so the BLMT48-D2L-HC carries eighteen 1/6 size pans over the same 48-3/8" body. You get close to a 60" unit's ingredient spread in four feet of line.
What is the storage split between the drawers and the door section?
The 13.1 cu. ft. cabinet is divided between two drawers on the left, each sized for 6" deep food pans, and a right-hand door compartment fitted with two adjustable epoxy-coated wire shelves. Panned product goes in the drawers; cases, jugs and taller containers go behind the door.
Does the BLMT48-D2L-HC need a special electrical circuit?
No. It runs on a standard 115 V / 60 Hz single-phase outlet and draws just 4.7 amps through a NEMA 5-15P cord, so it plugs into ordinary kitchen service. That is the lightest electrical load in the BLMT mega top range.
How much does the unit weigh for delivery and placement?
Net weight is 254 lbs (115 kg) and it ships at 315 lbs (143 kg). Four 4" swivel casters, two of them braked, come standard, so once it is off the truck a single person can reposition it on a level floor.
| Brand | Blue Air Commercial Refrigeration |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | BLMT48-D2L-HC |
| Brand | Blue Air Commercial Refrigeration |
| Weight | 315.00 lbs |
| Dimensions (HxWxD) | 44.17 x 48.38 x 37.32 inches |
| Height | 44.17 |
| Width | 48.38 |
| Depth | 37.32 |
| Sections | 2 section |
| Compressor Style | side / rear breathing |
| No of Doors | 1 door |
| Exterior Finish | all stainless steel exterior |
| Access Type | doors & drawers |
| Refrigeration | self-contained, rear mounted |
| Pan Capacity (Top) | 18 pan |
| No of Drawers | 2 drawers |
| Width (side - side) | 48" - 59" wide |
|

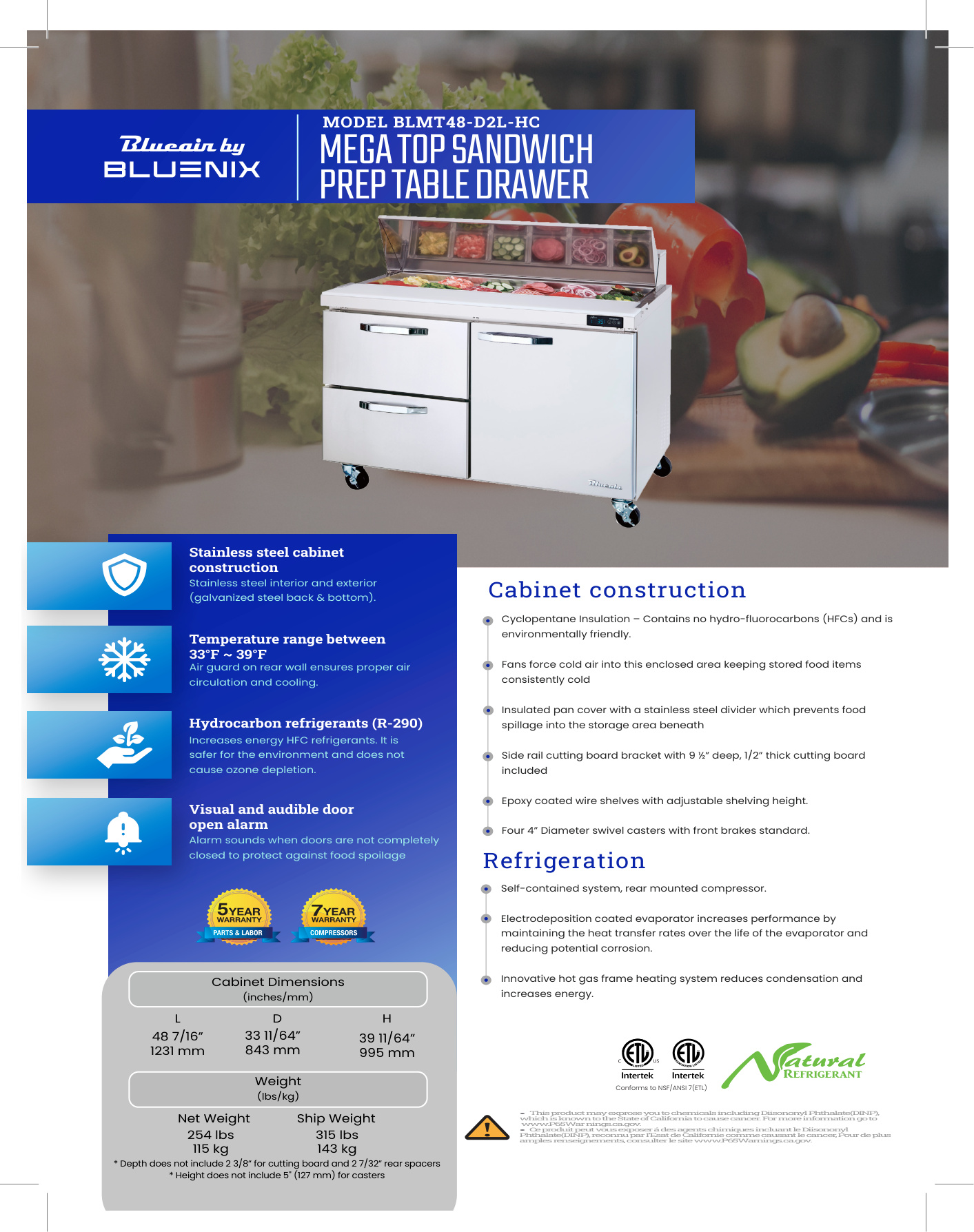

Resources
