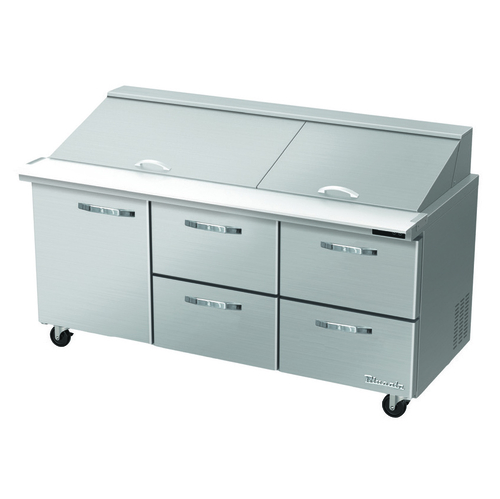

Blue Air BLMT72-D4RM-HC 72" Mega Top Prep Table with 4 Drawers & 1 Door
Blue Air BLMT72-D4RM-HC — 72" Mega Top Prep Table Built Around Four Drawers
Where most 72" prep tables hide their product behind swing doors, the Blue Air BLMT72-D4RM-HC turns four 6"-pan drawers toward the cook and keeps just one self-closing door for the bulk items that will not lie flat. It is a mega top sandwich and salad unit: 30 included 1/6 size pans ride the rail on top, 20.2 cu. ft. of stainless cabinet sits underneath, and a rear-mounted R-290 system holds the whole box between 33 °F and 39 °F. If your menu is portioned in advance and touched constantly, this is the layout that stops the reaching and bending.
Key Features of the BLMT72-D4RM-HC
Every choice in the D4RM build trades cabinet volume for speed of access — here is what that buys on a busy line.
Four Drawers Sized for 6" Pans
Two of the three sections are given over to four drawers, each deep enough for a 6" hotel pan. Prepped proteins, sliced cheese and portioned sides come out at counter height in one pull, which keeps a builder square to the rail instead of crouching into a cabinet.
One Door Section for the Odd-Shaped Stock
A single self-closing swing door on the left covers the one adjustable epoxy-coated wire shelf, so cases, jugs and tall containers still have a home. The door closes itself from 90° or less and carries a lifetime-guaranteed Ni-Cr plated metal handle.
30-Pan Mega Top with Insulated Cover
The mega top rail carries thirty 1/6 size pans, all included with the unit, and an insulated pan cover with a stainless steel divider seals the well so nothing spills into the 20.2 cu. ft. storage area below.
1/4 HP R-290 System, Rear Mounted and Sliding
The self-contained condensing unit sits at the rear on an easy-sliding base and runs R-290 hydrocarbon refrigerant — no ozone depletion and only 5.4 amps off a 115 V circuit. The evaporator is electrodeposition coated to hold its heat-transfer rate and resist corrosion.
Self-Diagnostic Digital Control
A digital display puts cabinet temperature in plain sight, and the controller runs an automatic evaporator fan motor delay to limit frost build-up. A visual and audible alarm sounds if a door or drawer has not shut completely.
Mobile, Serviceable, Line-Ready
Four 4" diameter swivel casters with front brakes are standard, the side rail bracket and 9-1/2" deep by 1/2" thick cutting board ship with the table, and rounded corners keep the exterior easy on forearms in a tight aisle.
Clearances before you order: the 33-11/64" published depth leaves out 2-3/8" for the cutting board and 2-7/32" for the rear spacers, and the 39-11/64" height leaves out 5" for the casters. Because the condensing unit is rear mounted on a sliding base, leave the back of the table reachable rather than pinning it against a wall.
Ideal Applications
A four-drawer base pays off wherever the same few ingredients get handled dozens of times an hour.
BLMT72-D4RM-HC Specifications
| Model | BLMT72-D4RM-HC |
|---|---|
| Type | Mega top sandwich / salad prep table, three-section |
| Refrigerated Capacity | 20.2 cu. ft. |
| Pan Capacity (Top) | (30) 1/6 size pans, included |
| Drawers | (4), accommodate 6" deep pans |
| Doors | (1) self-closing swing door, left side, closes at 90° or less |
| Shelving | (1) adjustable epoxy-coated wire shelf |
| Temperature Range | 33 °F – 39 °F |
| Exterior Width | 72-3/8" |
| Exterior Depth | 33-11/64" (843 mm), excl. cutting board & rear spacers |
| Exterior Height | 39-11/64" (995 mm), excl. casters |
| Cutting Board | 9-1/2" deep × 1/2" thick, side rail bracket included |
| Refrigeration System | Self-contained, rear-mounted, easy-sliding condensing unit |
| Refrigerant | R-290 hydrocarbon |
| Horsepower | 1/4 HP |
| Electrical | 115 V / 60 Hz / 1 phase, 5.4 amps |
| Plug / Cord | NEMA 5-15P on a 9.8 ft (3 m) three-wire cord |
| Insulation | Cyclopentane, HFC-free |
| Evaporator | Electrodeposition coated for corrosion resistance |
| Construction | Stainless steel interior & exterior, galvanized steel back & bottom |
| Casters | (4) 4" swivel, front two braked (2.5" casters optional) |
| Net Weight | 362 lbs (164 kg) |
| Shipping Weight | 441 lbs (200 kg) |
| Certifications | cETLus, ETL-Sanitation, conforms to NSF/ANSI 7 |
Frequently Asked Questions
How is the BLMT72-D4RM-HC laid out inside?
The 72" cabinet is divided into three sections. Four drawers occupy two of them, and the remaining section on the left is fitted with a single self-closing swing door over one adjustable wire shelf. Total refrigerated volume is 20.2 cu. ft.
What size pans fit the drawers?
Each of the four drawers is built to take 6" deep pans, which is the standard depth for prepped proteins and portioned sides. The thirty 1/6 size pans that come with the table are for the mega top rail, so plan on buying drawer pans separately in the sizes your prep calls for.
Should I choose this over a version with more doors?
Choose the D4RM if most of what you store is already portioned into pans and gets touched all service — drawers put it within arm's reach. If you regularly stage full cases, 6-gallon tubs or tall jugs, a configuration with more door sections and shelving will suit you better, since this model has only one shelf.
Does the 72" mega top come with pans?
Yes. Thirty 1/6 size pans are included, along with an insulated pan cover with a stainless steel divider that keeps spillage out of the storage area beneath. The 9-1/2" deep cutting board and its side rail bracket are also supplied.
What power does the BLMT72-D4RM-HC require?
A standard 115 V, 60 Hz single-phase outlet drawing 5.4 amps. The 1/4 HP condensing unit ships with a 9.8 ft three-wire cord and a NEMA 5-15 plug, so no dedicated circuit or hard wiring is needed on a normal 15-amp receptacle.
How heavy is it and how does it arrive?
Net weight is 362 lbs; crated for shipment it comes to 441 lbs. Arrange a liftgate or dock delivery and a second set of hands for uncrating — once it is on its four 4" swivel casters, one person can roll it into the line.
