$ 42,000.00Giles Enterprises EOF-20/FFLT/24 (70959 / 70961) 72-3/8 Inch Electric Fryer Battery with Dump Station, (1) 20 Inch + (1) 24 Inch Vat, 54 kW, Built-In Filtration

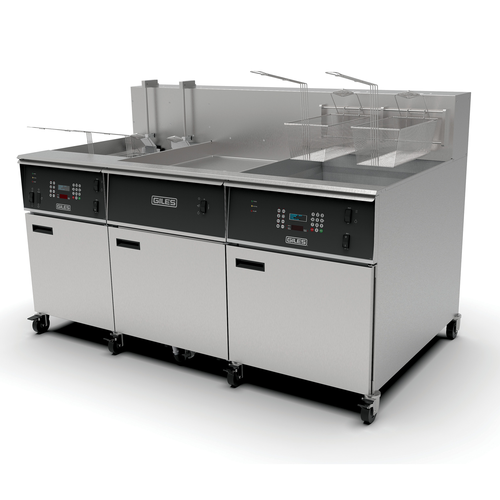

Giles EOF-20/FFLT/24 (70959 / 70961) — 72-3/8" Electric Fryer Battery with Dump Station
The Giles EOF-20/FFLT/24 is a large-capacity electric open fryer battery from the EOF High-Volume Series, built for chains and institutional kitchens that fry chicken all day. In one 72-3/8-inch line it combines a 20-inch EOF-20 vat, a built-in dump station, and a large 24-inch EOF-24 vat. The 20" x 20" vat holds 115 lbs of oil at 24 kW, cooks 27 to 30 lbs of 8-way cut chicken per load, and comes with an automatic basket lift as standard. The 20" x 24" vat holds 170 lbs of oil at 30 kW and cooks 36 to 42 lbs per load. Finished product drains on the dump station, whose runoff returns to the central on-board filtration system with a 1/2 hp pump that serves both fryers. Giles builds the battery in Montgomery, Alabama, as item 70959 (208V) or 70961 (480V).
Key Features of the EOF-20/FFLT/24
The EOF High-Volume Series pairs full-size and oversize fry vats with a draining station so chicken moves from fryer to holding without leaving the line.
24" Vat, 170 lb
The 20" x 24" EOF-24 vat holds 170 lbs of oil at 30 kW and cooks 36–42 lbs of 8-way cut chicken per load.
20" Vat with Auto Lift
The 20" x 20" EOF-20 vat holds 115 lbs of oil at 24 kW and includes a standard automatic basket lift for hands-free drops.
Built-In Dump Station
A dump station between the fryers makes unloading and handling cooked product convenient, with oil runoff draining back to the filtration pan.
Central On-Board Filtration
One filtration system with a 1/2 hp pump serves both fryers, with an optional reusable stainless filter screen.
Computer Controllers
One controller per fryer with 50 programmable presets, basket timers, Auto-Cool, Force-Filter, Boil-Out, optional password security, and multi-language display.
Heavy-Duty Construction
16–20 ga stainless steel on a welded frame with round Incoloy heating elements, on 5" swivel casters with front locking brakes.
Electrical note: Each fryer needs its own 3-phase supply. The EOF-20 unit draws 76 A at 208V or 33 A at 480V; the EOF-24 unit draws 100 A at 208V or 43 A at 480V. Order item 70959 (208V) or 70961 (480V). Service cords are not included, and the battery ships crated at 1,065 lbs in a 106" long crate.
Ideal Applications
Roughly 63 to 72 lbs of chicken per round from two vats, plus a dump station, suits high-volume chicken operations.
EOF-20/FFLT/24 Specifications
| Model / Item No. | Giles EOF-20/FFLT/24 / 70959 (208V), 70961 (480V) |
|---|---|
| Type | Electric open-vat banked fryer battery with built-in dump station |
| Vats | (1) 20" x 20" + (1) 20" x 24" |
| Oil Capacity | 115 lbs (20" vat); 170 lbs (24" vat) |
| Product Capacity | 27–30 lbs (20"); 36–42 lbs (24") of 8-way cut chicken |
| Heating | 24 kW (20" vat); 30 kW (24" vat); 54 kW total |
| Electrical (per unit) | EOF-20: 76 A @ 208V, 33 A @ 480V; EOF-24: 100 A @ 208V, 43 A @ 480V; 3-phase; separate supply per unit; cords not included |
| Width | 72-3/8" (1837 mm) |
| Depth | 41-3/8" (1050 mm) |
| Height | 46-1/8" (1172 mm) |
| Temperature | Adjustable to 350°F max; high-limit shutdown at 450°F |
| Controls | Computer controller per fryer, 50 presets, basket timers, Auto-Cool, Force-Filter, Boil-Out |
| Filtration | Central on-board system, 1/2 hp pump |
| Basket Lifts | Standard on 20" vat; optional on 24" vat |
| Construction | 16–20 ga stainless steel, welded S/S frame, round Incoloy elements |
| Standard Equipment | (2) cook baskets (20" vat), scoop-style basket, brush set, stirring utensil, waste oil discharge hose, crumb scoop, 5" casters |
| Crated Weight / Size | 1,065 lbs; 50" x 106" x 61" |
| Warranty | 2 years parts and labor |
Frequently Asked Questions
What vats does the Giles EOF-20/FFLT/24 have?
It has one 20" x 20" vat holding 115 lbs of oil and one 20" x 24" vat holding 170 lbs, with a built-in dump station between them.
What are Giles item numbers 70959 and 70961?
They are the factory item numbers for the EOF-20/FFLT/24: 70959 is the 208V 3-phase version and 70961 is the 480V 3-phase version.
How much chicken does it cook per load?
The 20" vat cooks 27 to 30 lbs and the 24" vat cooks 36 to 42 lbs of 8-way cut chicken per load.
Does it have automatic basket lifts?
Yes. An automatic basket lift is standard on the 20" vat, and one can be added to the 24" vat as an option.
What electrical service does it need?
Each fryer needs its own 3-phase supply: the EOF-20 unit draws 76 A at 208V or 33 A at 480V, and the EOF-24 unit draws 100 A at 208V or 43 A at 480V. Cords are not included.
Is there a version without the dump station?
Giles offers the EOF-20/24/24 as a space-saver battery without a dump station, with one 20" vat and two 24" vats.
