Giles Enterprises GHM-6C SELF (72063) 70-5/16 Inch Countertop Full/Self-Service Combination Heated Merchandiser, 5-Well, LED Lighting, 208/240V
$ 14,399.00

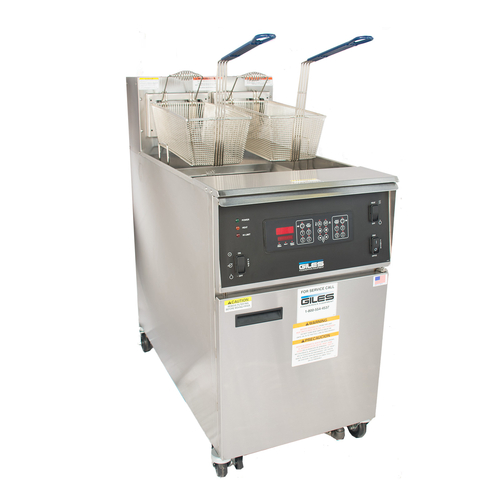

$ 14,399.00Giles Enterprises EOF-20 (71710 / 71707) 22-3/4 Inch Electric Open-Vat Floor Fryer, 115 lb Oil Capacity, 24 kW, Built-In Filtration
Giles EOF-20 (71710 / 71707) — 22-3/4" Electric Open-Vat Fryer, 115 lb, 24 kW
The Giles EOF-20 is a high-capacity, multi-purpose electric open-vat floor fryer built for the volume of a fried chicken program. Its 20" x 20" square vat holds 115 lbs of shortening and cooks 27 to 30 lbs of 8-way cut chicken per load, while a 24 kW heating system gives the rapid temperature recovery that keeps breading crisp and limits oil absorption. An on-board filtration system with a 1/2 hp pump lets the crew filter oil right at the fryer, extending oil life without a separate filter cart. A computer controller stores 50 programmable menu presets with dual timers, and adds Auto-Cool, Force-Filter, and Boil-Out programs. Giles builds the EOF-20 in Montgomery, Alabama, as item 71710 (208V) or 71707 (480V), and the same unit can be banked into two- and three-well batteries as the operation grows.
Key Features of the EOF-20
The EOF-20 is the single-well building block of Giles' EOF-20 series, designed around simple operation, high capacity, and menu versatility.
20" x 20" Open Vat
The square open vat holds 115 lbs of shortening and handles 27–30 lbs of 8-way cut chicken, fries, or breaded seafood in a single load.
24 kW Rapid Recovery
24,000 watts of heat bring the oil back to temperature quickly after each drop, which reduces oil saturation and keeps product consistent.
On-Board Oil Filtration
A built-in filter system with a 1/2 hp pump filters the oil at the fryer, using paper, powder, or a stainless screen to extend oil life.
Computer Controller
Dual timers and 50 menu presets, plus Auto-Cool, Force-Filter, Boil-Out, optional password security, and multi-language display.
Built-In Safety Interlocks
Dual drain valve interlocks, high-limit shutdown at 450°F, and a maximum element temperature interlock protect the crew and the fryer.
Mobile on 5" Casters
Heavy-duty 5" casters, with locking brakes on the front pair, roll the fryer out for cleaning and lock it in place during service.
Electrical note: The EOF-20 is offered at 208V 3-phase (76 A, item 71710) or 480V 3-phase (33 A, item 71707), 3-wire plus ground. A service cord is not included — confirm your voltage before ordering and plan for installation by a licensed electrician under a properly sized exhaust hood.
Ideal Applications
A 115 lb open vat with on-board filtration suits operations that fry large batches all day.
EOF-20 Specifications
| Model / Item No. | Giles EOF-20 / 71710 (208V), 71707 (480V) |
|---|---|
| Type | Electric open-vat floor fryer, single well |
| Vat Size | 20" x 20" |
| Shortening Capacity | 115 lbs (52 kg) |
| Product Capacity | 27–30 lbs of 8-way cut chicken per load |
| Heating | 24 kW (24,000 W) |
| Max Cooking Temperature | 375°F; high-limit shutdown at 450°F |
| Electrical | 208V 3-ph, 76 A or 480V 3-ph, 33 A; 3-wire + ground; cord not included |
| Width | 22-3/4" (577 mm) |
| Depth | 41-13/16" (1062 mm) |
| Height | 46-1/8" (1172 mm) |
| Controls | Computer controller, dual timers, 50 presets, Auto-Cool, Force-Filter, Boil-Out |
| Filtration | On-board, 1/2 hp pump |
| Standard Equipment | (2) cooking baskets, (1) 12x12 scoop basket, brush set, stirring utensil, discharge hose, filter pan insert, crumb scoop |
| Mobility | 5" casters, front casters with locking brakes |
| Options | Automatic basket lift (item suffix -L); KitchenTrac® WiFi remote monitoring |
| Crated Weight / Size | 465 lbs; 35" x 45" x 60" |
| Warranty | 2 years parts and labor |
Frequently Asked Questions
How much oil does the Giles EOF-20 hold?
The 20" x 20" vat holds 115 lbs (52 kg) of shortening and cooks 27 to 30 lbs of 8-way cut chicken per load.
What are Giles item numbers 71710 and 71707?
They are the factory item numbers for the EOF-20: 71710 is the 208V 3-phase version and 71707 is the 480V 3-phase version. Adding -L to the item number specifies the automatic basket lift.
What electrical service does the EOF-20 need?
It draws 24 kW: 76 amps at 208V 3-phase or 33 amps at 480V 3-phase, wired 3-wire plus ground. A service cord is not included.
Does the EOF-20 have built-in filtration?
Yes. An on-board filtration system with a 1/2 hp pump filters the oil at the fryer, and the controller includes a Force-Filter feature.
What are the dimensions of the EOF-20?
It is 22-3/4 inches wide, 41-13/16 inches deep, and 46-1/8 inches tall, and it ships crated at 465 lbs.
Can the EOF-20 be expanded later?
The EOF-20 series is available as a single fryer or as banked two- and three-well batteries (EOF-20/20 and EOF-20/20/20) that share one central filter system.
