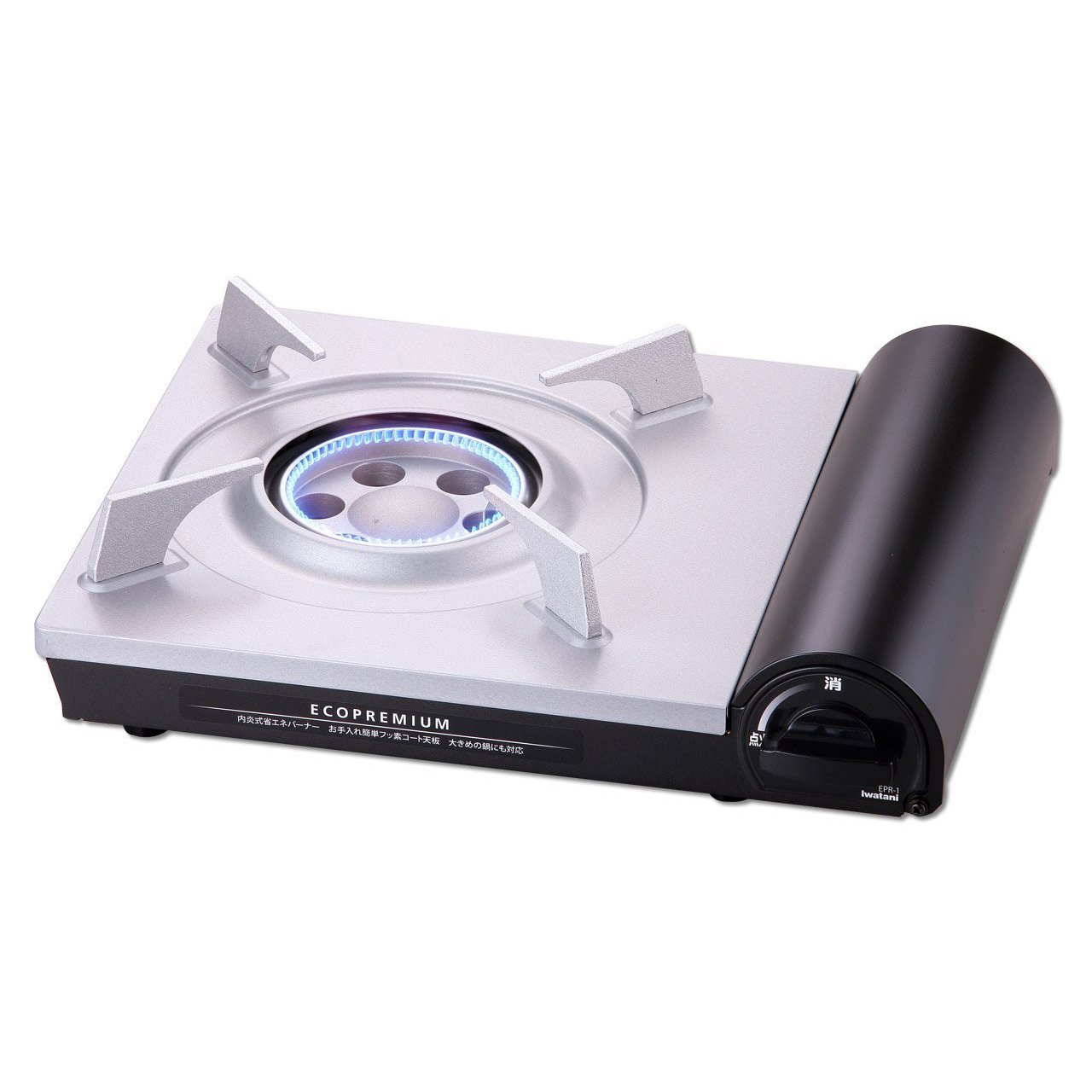

Iwatani Portable Butane Gas Stove EcoPremium EPR-A

Free Shipping

Description
Specifications

High powered for all your commercial indoor and outdoor cooking needs.

EcoPremium

High Power 10,000 BTU/hr
IWATANI Inner Flame Burner
Larger Diameter Cookware Compatible

INNER FLAME BURNER FEATURE

The special inner flame burner head allows the flame/heat to be concentrated more in the center of the cookware as opposed to heating the outer and side portions of the pot or pan. This allows the Iwatani portable butane gas stove to have the fuel usage of only 10,000 BTU/hr but perform like a 12,000 BTU/hr stove.

IWATANI INNER FLAME BURNER

OUTER FLAME BURNER

Capacity equivalent to 12,000 BTU/hr
while consuming only 10,000 BTU/hr

Comparison of the time to start boiling water

12,000 BTU/hr while consuming only 10,000 BTU/hr

You can save
approx. 16% of the fuel.

Comparison of the amount of gas needed to boil water

Condition: 1.5qt of water is boiled using a pot with a diameter of 7 inches at the ambient temperature 68-77â„‰/20-25â„ƒ.
The time needed to heat water from 68â„‰/20â„ƒ to 203â„‰/95â„ƒ (Tested by IWATANI)

NON-STICK COATED DRIP PAN

The EcoPremium comes with a non-stick steel drip pan. This makes for easy cleanup of messy spills and helps to keep the EcoPremium looking like new.

OFF-SET BURNER HEAD FEATURE

The burner head on the EcoPremium is located further away from the fuel compartment than traditional stoves while keeping its compact size. This special feature makes it possible to use 11.5" diameter cooking utensils without the utensil overhanging the fuel compartment which may cause the fuel canister to overheat.

OFF-SET BURNER HEAD FEATURE

MAGNETIC LOCKING SYSTEM

This lwatani System feature replaces locking levers. Simply push the fuel can onto the magnet and it locks in safely making it virtually impossible to load fuel can incorrectly.

MAGNETIC LOCKING SYSTEM

HEAT PANEL SYSTEM

lwatani System maintains constant pressure as fuel is being consumed, providing the maximum and consistent output for the life of entire fuel canister. It also allows the stove to utilize the entire can of butane leaving no residual fuel, assuring greater economy and safety.

HEAT PANEL SYSTEM

SAFETY FEATURES

1.Pressure Sensing Device
Advanced regulator design shuts off the flow of butane which extinguishes the flame if the pressure in the canister rises to unsafe levels.
The device activates at 60psi [0.4Mpa] to 90 psi [0.6Mpa].

2.Canister Setting Safety Device
The canister cannot be attached if the stove is not in the off position.
This feature protects against unintentional gas escaping through the burner without ignition.

3.Pressurized Receiving Guide
Two sized 0-rings are built into the receiving guide of the regulator.
This double protection feature helps give the canister and regulator an airtight seal.

4.lnverted Drip Pan Prevention Device
This feature protects the use of the stove by not allowing the drip pan to set level when the drip pan is inverted.

Specifications

Model	EPR-A
Product size [W x L x H]	13.1"/334mm x 10.8"/274mm x 3.5"/89mm
Product weight	3.3lbs/1.5kg
Ignition	Piezoelectric Ignition
Output	10,000 BTU/hr
Burning time	Approx.65 minutes [at max. power]
Package size [W x L x H]	13.5"/343mm x 12.6"/321mm x 4.0"/101mm
Package Weight	4.9lbs/2.2kg
Units/Case	6
Case size[W x L x H]	25.4"/646mm x 13.8"/350mm x 13.1"/333mm
Case Weight	31.7lbs/14.4kg
Unit UPC	022918 025517
Case UPC	022918 925510
