$ 13,860.00Giles Enterprises FSH-2 27-13/16 Inch Free-Standing Ventless Recirculating Hood for Electric Fryers up to 24 Inch, 510-680 CFM, Ansul R-102 Fire Suppression

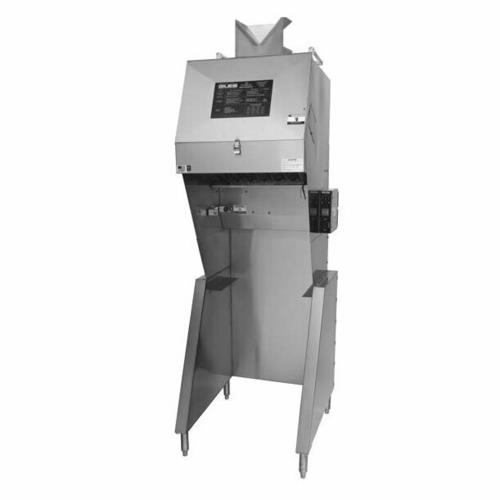

Giles FSH-2 — Free-Standing Ventless Recirculating Hood for Electric Fryers
The Giles FSH-2 is a free-standing Type-1 ventless recirculating hood that lets you add a deep fryer to the cook line without expensive building modifications or costly expansion of an existing ventilation system. Venting to the outside is not necessary, so it can often be used where traditional hoods are prohibited or over budget. It accepts electric floor-model fryers 10 to 24 inches wide up to 20 kW and 110 lbs of shortening, and its proven 3-stage air cleaning (stainless baffle filter, electronic air cleaner, and charcoal filter) captures grease-laden vapors at 510–680 CFM. Giles lists it to UL-YZCT (UL-YZCT-7 in Canada) in compliance with ANSI/UL-710B. A factory-installed, self-contained Ansul R-102 wet chemical fire suppression system with a 1-1/2 gallon tank is built in, and 3-phase models include an interlocked 50 A appliance power receptacle in the base. The cabinet is 27-13/16 inches wide with a low-profile exhaust diverter that minimizes required ceiling clearance.
Key Features of the FSH-2
A self-contained hood that turns a standard electric floor fryer into a ventless frying station.
3-Stage Air Cleaning
Stainless baffle filter traps large grease, an electronic air cleaner captures fine particulate, and a charcoal filter controls odor.
Built-In Ansul R-102
Factory-installed Automan release, 1-1/2 gallon tank, piping, discharge nozzles, detector link brackets, and cable conduit.
Fits 10"–24" Fryers
Centering bracket openings from 10-1/8" to 24-1/8" accept a wide range of electric floor-model fryers.
Interlocked Power
3-phase models include a built-in NEMA 15-60R appliance receptacle, 50 A max, powered only while the hood runs.
Push-to-Start Safety
The hood must be manually restarted after a power interruption before the fryer underneath can be powered.
Filter Cleaning Timer
A built-in timer reminds staff when to clean filters, with a low-profile exhaust diverter and adjustable leveling legs.
Electric fryers only: The FSH-2 is listed only for electrically heated fryers (no gas) up to 20 kW, 380 sq in cooking area, 350°F, 110 lbs of shortening, and 10"–24" wide; it is not suited to automatic basket lift fryers (see the FSH-2A-99). Giles must approve a completed Hood Approval Letter (HAL) before accepting the order, and Ansul field set-up and commissioning by an authorized dealer is customer-provided. Specify the fryer opening (A–H) when ordering.
Ideal Applications
Add frying wherever ducted exhaust is not possible or too costly.
FSH-2 Specifications
| Model | Giles FSH-2 |
|---|---|
| Type | Free-standing Type-1 ventless recirculating hood |
| Listing | UL-YZCT (UL-YZCT-7 Canada); complies with ANSI/UL-710B (per Giles) |
| Approved Appliances | Electric floor-model fryers only; no gas |
| Appliance Limits | 20 kW max; 380 sq in max cooking area; 350°F max; 110 lbs max shortening; 10"–24" fryer width |
| Fryer Openings | A 24-1/8", B 20-1/8", C 18-5/8", D 16-1/8", E 15-5/8", F 15-1/8", G 14-1/8", H 10-1/8" |
| Air Cleaning | Stainless baffle filter, E.A.C. collector cell, disposable charcoal filter |
| Exhaust / Sound | 510–680 CFM; approx. 65 dB |
| Fire Suppression | Ansul R-102 wet chemical, 1-1/2 gal tank, factory-installed; field commissioning not included |
| Electrical (Hood) | 208–240V, 1- or 3-phase, 5 A; field wired, no cord |
| Appliance Receptacle | 3-phase model: built-in NEMA 15-60R, 50 A max |
| Width | 27-13/16" (706 mm) |
| Depth | 30-15/16" (786 mm) |
| Height | 85-7/16" (2170 mm) |
| Construction | 16, 18 and 20 ga stainless steel, aluminized steel where applicable |
| Included | Baffle filter, EAC collector cell, charcoal filter, EAC cleaner sample |
| Crated Weight / Size | 425 lbs; 46" x 35" x 96" |
| Warranty | 24 months parts and labor |
Frequently Asked Questions
What fryers can be used under the Giles FSH-2?
Electric floor-model fryers only, 10" to 24" wide, up to 20 kW, 380 sq in cooking area, 350°F, and 110 lbs of shortening. Gas appliances and automatic basket lift fryers are not suitable.
Does the FSH-2 need to be vented outside?
No. The 3-stage recirculating system cleans the air, though Giles notes that vented hoods should always be considered first and local approval is required.
Is fire suppression included?
Yes. A self-contained Ansul R-102 system with a 1-1/2 gallon tank is factory-installed; final field set-up and commissioning by an Ansul dealer is customer-provided.
Does it include a power outlet for the fryer?
3-phase models include a built-in, interlocked NEMA 15-60R appliance receptacle rated 50 A max.
Which hood should I choose for a basket lift or pressure fryer?
Giles recommends the taller FSH-2A-99, which accommodates fryers with basket lifts and pressure fryers with hinged lids.
What are its dimensions?
The FSH-2 is 27-13/16" wide, 30-15/16" deep, and 85-7/16" tall, and ships crated at 425 lbs.
