$ 4,138.00Giles Enterprises GBF-50-VH (71901 / 71902) 20-3/8 Inch Ventless Electric Fryer, 14 Inch Vat, 50 lb Oil Capacity, 18 kW, Ansul Fire Suppression

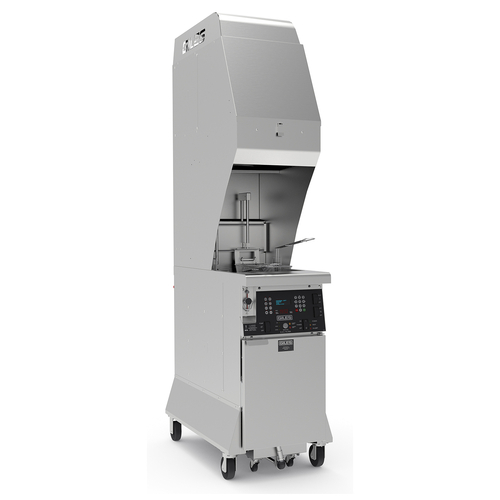

Giles GBF-50-VH (71901 / 71902) — Ventless Electric Fryer, 50 lb
The Giles GBF-50-VH combines the compact GBF-50 electric fryer with Giles' integrated ventless hood, so it can generally be operated in locations where conventional ventilation hoods are not an option because of restrictions or cost. A 14-inch square fry vat holds 50 lbs of shortening, and its deep cool zone minimizes crumb carbonization, which is ideal for fresh breaded products. Each load cooks 12 lbs of 8-way cut chicken or 5 lbs of fries. The 3-stage recirculating air cleaning system removes grease-laden vapors and uses an activated charcoal filter to help control odor; Giles lists it to UL-KNKG and states compliance with ANSI/UL-197 and ANSI/UL-710B. A fully self-contained Ansul R-102 wet chemical fire suppression system is built in. The unit is 20-3/8 inches wide and is made in Montgomery, Alabama, as item 71901 (208V) or 71902 (240V) in the 18 kW, 3-phase version.
Key Features of the GBF-50-VH
A complete frying station with its own hood, filtration, and fire suppression in about 5.5 sq ft of floor space.
Ventless Recirculating Hood
A 3-stage system removes grease-laden vapors and an activated charcoal filter helps control odor, with no outside ducting.
Ansul R-102 Suppression
Built-in wet chemical system with piping, nozzles, Automan release, fusible links, and suppressant tank.
50 lb Vat, Deep Cool Zone
The 14" square vat holds 50 lbs of oil; crumbs settle below the elements to reduce carbonization.
Computer Controller
50 presets, Cool Mode, Force Filter, Low Oil, Boil-Out, safety alarms, instructional prompts, password security, multi-language display.
Paper-Free Filtration
A 5-minute on-board filter cycle uses a stainless steel screen, eliminating the need for disposable filter paper.
LED Lighting & Stability
Under-hood LED lighting, a wide-stance cabinet for stability, and 5" casters for portability.
Before you order: Giles accepts ventless fryer orders only after the purchaser completes and Giles approves the GFSE Hood Approval Letter (HAL), confirming local authority approvals and site requirements. Ansul field set-up, charging, and commissioning must be done by an authorized Ansul distributor at the customer's expense and is not included. Service cords are not included.
Ideal Applications
Fry where a ducted exhaust hood is not possible or too costly to install.
GBF-50-VH Specifications
| Model / Item No. | Giles GBF-50-VH / 71901 (208V 3-ph 18 kW), 71902 (240V 3-ph 18 kW) |
|---|---|
| 10 kW Item Nos. | 71984 (208V 3-ph), 71903 (208V 1-ph), 71985 (240V 3-ph), 71904 (240V 1-ph) |
| Type | Ventless electric open-vat fryer with integral recirculating hood |
| Fry Vat | 14" square |
| Oil Capacity | 50 lbs (22.6 kg) |
| Product Capacity | 12 lbs 8-way cut chicken; 5 lbs fries (reference) |
| Electrical (incl. blower) | 18,300 W: 50.7 A @ 208V 3-ph, 43.9 A @ 240V 3-ph; 10,400 W: 28.9 / 25.0 A 3-ph, 50.0 / 43.3 A 1-ph; cords not included |
| Width | 20.34" (516.6 mm); add 1" for WiFi |
| Depth | 39.19" (995.5 mm) |
| Height | 83.94" (2132 mm) |
| Floor Space | 5.54 sq ft |
| Clearances | 13.2" front for door swing; 21.1" front for filter pan |
| Hood Listing | Listed to UL-KNKG [-7 Canada]; complies with ANSI/UL-197 and ANSI/UL-710B (per Giles) |
| Fire Suppression | Self-contained Ansul R-102 wet chemical; field set-up by Ansul dealer not included |
| Included | Complete air filter set, stainless steel filter screen, (2) fry baskets, fry screen, discharge hose, stirring utensil, brush set, crumb scoop |
| Crated Weight / Size | 607 lbs; 36" x 46" x 92" |
| Warranty | 24 months parts and labor |
Frequently Asked Questions
Does the Giles GBF-50-VH need an exhaust hood?
No ducted hood is needed in most locations. Its integrated 3-stage recirculating system cleans grease-laden vapors and controls odor, but local authority approval is still required.
What is the Hood Approval Letter?
Giles requires the purchaser to complete and submit the GFSE Hood Approval Letter (HAL), confirming site requirements and local approvals, before a ventless fryer order is accepted.
Is Ansul fire suppression included?
Yes, a self-contained Ansul R-102 wet chemical system is built in. Field set-up, charging, and commissioning by an Ansul dealer is required at the customer's expense.
How much oil does it hold?
The 14" square vat holds 50 lbs of shortening and cooks about 12 lbs of 8-way cut chicken per load.
What are item numbers 71901 and 71902?
They are the 18 kW, 3-phase GBF-50-VH: 71901 for 208V and 71902 for 240V. 10 kW single- and 3-phase versions are also available.
What are the dimensions?
It is 20.34" wide, 39.19" deep, and 83.94" tall, using 5.54 sq ft of floor space, and ships crated at 607 lbs.
