$ 14,399.00Giles Enterprises GEF-400 (70885 / 70886) 24-1/16 Inch Electric Round Kettle Fryer, 45 lb Oil Capacity, 10 kW, Automatic Basket Lift, Built-In Filtration

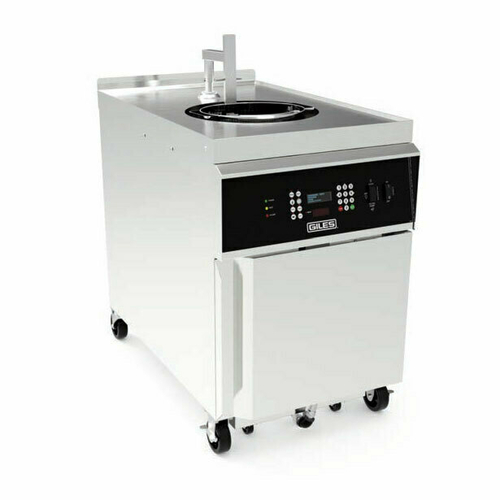

Giles GEF-400 (70885 / 70886) — 24-1/16" Electric Round Kettle Fryer, 45 lb
The Giles GEF-400 is an electric round kettle fryer engineered to deliver crisp, moist fried chicken quickly and consistently. Its 15-7/8-inch diameter fry pot holds 45 lbs of oil and cooks up to 14 lbs of product per load, while high-efficiency circular heating elements surround the product with 10,000 watts for even heat distribution. An automatic basket lift lowers and raises the stainless steel basket at the start and end of each cycle, and the computer controller stores 50 menu presets with energy-saving COOL mode, FORCE-FILTER, LOW OIL alert, and BOIL-OUT. A built-in on-board filtration system with a 1/2 hp pump extends oil life. The double-wall stainless cabinet is only 24-1/16 inches wide with a reversible door, and the fryer is built in Montgomery, Alabama, as item 70885 (208V 3-phase) or 70886 (240V 3-phase), with single-phase versions available.
Key Features of the GEF-400
A round pot with surrounding elements and an automatic lift gives consistent fried chicken with minimal effort.
Round Kettle Design
A 15-7/8" diameter x 12-3/4" deep fry pot holds 45 lbs of oil for up to 14 lbs of product per load.
Circular Heating Elements
10,000 W elements surround the product for even heat distribution and fast recovery.
Automatic Basket Lift
Lowers and raises the stainless basket at the start and end of each cycle for safe loading and unloading.
Computer Controller
50 programmable menu presets with COOL mode, FORCE-FILTER, LOW OIL alert, and BOIL-OUT program.
On-Board Filtration
An integrated 1/2 hp pump filtration system; proper use can extend oil life by 50%.
Heavy-Duty Build
Stainless steel, a double-wall cabinet, liquid-resistant control panel, and multiple safety interlocks.
Electrical note: The 10 kW GEF-400 draws 29 A at 208V 3-phase (item 70885) or 25 A at 240V 3-phase (70886). Single-phase versions draw 48 A at 208V (70887) or 42 A at 240V (70888). The service cord is not included. Allow 63-7/16" of depth with the door open.
Ideal Applications
A compact kettle fryer for operations that want consistent bone-in chicken in 14 lb batches.
GEF-400 Specifications
| Model / Item No. | Giles GEF-400 / 70885 (208V 3-ph), 70886 (240V 3-ph), 70887 (208V 1-ph), 70888 (240V 1-ph) |
|---|---|
| Type | Electric round kettle floor fryer |
| Fry Pot | 15-7/8" dia x 12-3/4" deep |
| Fry Basket | 12-3/8" dia x 10-1/4" deep, stainless steel |
| Oil Capacity | 45 lbs |
| Product Capacity | Up to 14 lbs per load |
| Heating | 10,000 W circular elements |
| Amps | 3-ph: 29 A @ 208V, 25 A @ 240V; 1-ph: 48 A @ 208V, 42 A @ 240V; cord not included |
| Width | 24-1/16" (27-7/16" with oil saddle) |
| Depth | 39-1/4" (63-7/16" door open) |
| Height | 43-7/16" |
| Floor Space | 6.5 sq ft |
| Controls | Computer controller, 50 presets, COOL, FORCE-FILTER, LOW OIL, BOIL-OUT |
| Filtration | On-board, 1/2 hp pump |
| Options | Oil top-off reservoir (T), bulk fresh oil (B), waste oil connection (W), KitchenTrac WiFi |
| Included | Fry basket, pot cover, filter pan crumb screen, scrub/drain/element brushes, crumb scoop, stir paddle, discharge hose, 5 filter paper sheets |
| Weight | 380 lbs uncrated; 435 lbs crated (35" x 46" x 49") |
| Warranty | 2 years parts and labor |
Frequently Asked Questions
How much oil does the Giles GEF-400 hold?
The GEF-400 holds 45 lbs of oil in a 15-7/8" diameter, 12-3/4" deep round fry pot.
How much chicken can it cook per load?
It handles up to 14 lbs of product in a single load.
Does the GEF-400 have an automatic basket lift?
Yes. The automatic basket lift is standard and lowers and raises the basket when cooking cycles begin and finish.
Which electrical versions are available?
All are 10 kW: 70885 (208V 3-ph, 29 A), 70886 (240V 3-ph, 25 A), 70887 (208V 1-ph, 48 A), and 70888 (240V 1-ph, 42 A). The cord is not included.
Is there a ventless version?
Yes. Giles offers the GEF-400VH with an integral ventless hood and Ansul fire suppression.
What are its dimensions?
It is 24-1/16" wide, 39-1/4" deep, and 43-7/16" tall, using 6.5 sq ft, and weighs 380 lbs uncrated.
