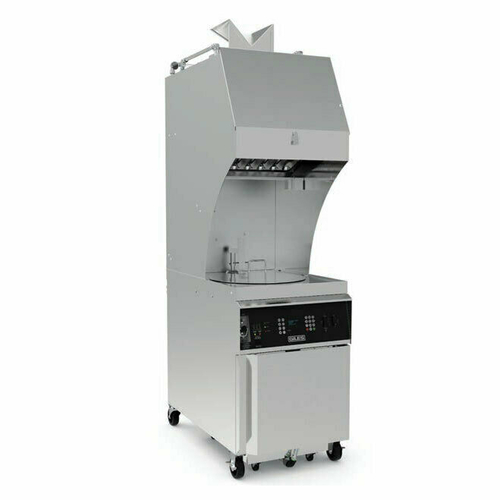

Giles GEF560-VH (GEF-560VH, 70901 / 70903) — Ventless Electric Kettle Fryer, 60 lb
The Giles GEF560-VH, listed on Giles' specification sheet as the GEF-560VH, pairs the GEF-560 electric round kettle fryer with Giles' integral ventless hood to deliver crisp, moist fried chicken where a ducted hood is not practical. The 18-5/8-inch fry pot holds 60 lbs of oil and cooks up to 19 lbs of product per load, with 15,000 W circular elements surrounding the product for even heat. The multi-stage recirculating air cleaning system removes grease-laden vapors and helps control odor; Giles lists it to UL-KNKG and states compliance with ANSI/UL-197 and ANSI/UL-710B. A self-contained Ansul R-102 wet chemical fire suppression system, a standard automatic basket lift, a 50-preset computer controller, and on-board 1/2 hp filtration are built in. The hooded cabinet is only 24-3/8 inches wide and needs just 7-1/2 feet of ceiling height. It is made in Montgomery, Alabama, as item 70901 (208V 3-phase) or 70903 (240V 3-phase).
Key Features of the GEF-560VH
A larger kettle with its own hood, fire suppression, lift, and filtration in about 7 sq ft of floor space.
Integral Ventless Hood
3-stage recirculating air cleaning with baffle, EAC collector cell, and charcoal filters; 510–680 CFM at 65 dB.
Ansul R-102 Suppression
Built-in wet chemical system with piping, nozzles, Automan release, fusible link brackets, and suppressant tank.
Round Kettle, 60 lb
An 18-5/8" x 12-3/4" deep pot with 15,000 W circular elements cooks up to 19 lbs per load.
Automatic Basket Lift
Lowers and raises the 14-1/2" stainless basket at the start and end of each cycle.
Computer Controller
50 presets with COOL mode, FORCE-FILTER, LOW OIL alert, and BOIL-OUT program.
On-Board Filtration
An integrated 1/2 hp pump filter system; proper use can extend oil life by 50%.
Before you order: Giles accepts ventless fryer orders only after it approves the purchaser's GFSE Hood Approval Letter (HAL) confirming local approvals and site requirements. Ansul field set-up, charging, and commissioning by an authorized Ansul dealer is the customer's responsibility. Fryer plus hood draws 44 A at 208V 3-phase (70901) or 38 A at 240V 3-phase (70903); single-phase 70902 / 70904 draw 75 / 64 A. Service cord not included.
Ideal Applications
Bigger kettle-fried chicken batches wherever a ducted exhaust hood is not possible or affordable.
GEF-560VH Specifications
| Model / Item No. | Giles GEF560-VH (GEF-560VH) / 70901 (208V 3-ph), 70903 (240V 3-ph), 70902 (208V 1-ph), 70904 (240V 1-ph) |
|---|---|
| Type | Ventless electric round kettle fryer with integral recirculating hood |
| Fry Pot | 18-5/8" dia x 12-3/4" deep |
| Fry Basket | 14-1/2" dia x 10-1/4" deep |
| Oil Capacity | 60 lbs |
| Product Capacity | Up to 19 lbs per load |
| Power | Fryer 15,000 W; fryer + hood 15,400 W |
| Amps | 3-ph: 44 A @ 208V, 38 A @ 240V; 1-ph: 75 A @ 208V, 64 A @ 240V; cord not included |
| Hood Exhaust / Sound | 510–680 CFM; 65 dB |
| Hood Listing | UL-KNKG [-7 Canada]; complies with ANSI/UL-197 and ANSI/UL-710B (per Giles) |
| Width | 24-3/8" (27-9/16" with oil saddle) |
| Depth | 42-1/8" (64-3/8" door open) |
| Height | 85-13/16"; minimum ceiling 7-1/2 ft |
| Floor Space | 7.1 sq ft |
| Included | Fry basket, pot cover, crumb screen, brushes, crumb scoop, stir paddle, discharge hose, baffle filter, charcoal filter, EAC collector cell, EAC cleaner sample, 5 filter paper sheets |
| Weight | 645 lbs uncrated; 708 lbs crated (35" x 46" x 92") |
| Warranty | 2 years parts and labor |
Frequently Asked Questions
Are the GEF560-VH and GEF-560VH the same fryer?
Yes. GEF-560VH is how Giles writes the model on its specification sheet; factory item numbers are 70901 and 70903 (3-phase) and 70902 and 70904 (single-phase).
Does the GEF-560VH need an exhaust hood?
No ducted hood is needed in most locations, because the integral 3-stage recirculating hood cleans the cooking vapors. Local authority approval is still required.
Is Ansul fire suppression included?
Yes. A self-contained Ansul R-102 system is built in; field set-up, charging, and commissioning by an Ansul dealer is the customer's responsibility.
How much does it cook per load?
The 60 lb oil kettle handles up to 19 lbs of product per load.
What ceiling height is required?
Giles specifies a minimum ceiling height of 7-1/2 feet; the unit itself is 85-13/16" tall.
How does it differ from the GEF-400VH?
The GEF-560VH has a larger 18-5/8" pot, 60 lbs of oil, 15 kW, and 19 lbs per load, versus 45 lbs, 10 kW, and 14 lbs on the GEF-400VH; cabinet dimensions are the same.
