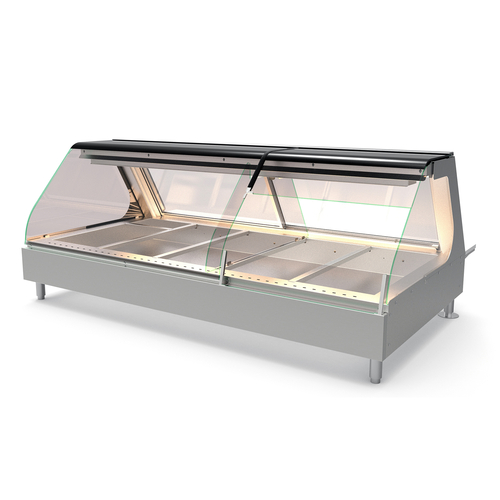

Giles GHM-6C FULL (72063) — 70-5/16" 5-Well Full-Service Heated Merchandiser
The Giles GHM-6C FULL (Giles base item 72063) is the 70-5/16-inch, five-well model in the GHM-C LED heated merchandiser line, set up for full operator service: staff load and portion from the attendant side while customers see the whole menu through a European-style curved tempered glass front. Each of the five food wells holds a full-size pan plus a one-third-size pan and has its own upper ceramic and lower Calrod® heat controls, giving a high-volume deli room for fried chicken, tenders, wedges, and two or three sides at their own temperature settings. A 2500K warm LED lighting system replaces the hard-to-source bulbs of older merchandisers and shows the food in its best light. Built of all stainless steel and manufactured and assembled in the USA, the GHM-6C runs on 208/240V single-phase power and fits a counter or the matching Giles PUP-6 mobile base.
Key Features of the GHM-6C FULL
The GHM-C series is Giles' latest heated food merchandiser design, combining independent per-well heat with an LED light package and a case that opens up completely for cleaning.
Upper & Lower Heat Per Well
Each of the five wells has independent upper ceramic and lower Calrod® controls, so crispy fried items and moist sides are held side by side without compromise.
2500K LED Lighting
A reliable, economical LED system with a warm 2500K color replaces outdated, hard-to-source bulbs and makes hot food look appetizing behind the glass.
Flexible Pan Layout
Each well takes one full-size plus one 1/3-size pan from 2-1/2" to 4" deep, and the layout can be reconfigured with 1/4, 1/3, 1/2, or full-size pans.
Curved Glass & Mirror-Tint Doors
A European-style tempered front glass gives full product visibility, with mirror-tint side glass and rear sliding doors on the attendant side.
Built for Easy Cleaning
All stainless construction, removable side glass, pneumatic struts that hold the front glass open, and lift-out rear doors on easy-clean tracks.
Folding Cutting Board
A folding 7-1/2" HDPE cutting board / work shelf runs the full 70-5/16" width on the attendant side for portioning and wrapping orders.
Installation note: The GHM-6C is field wired at 208/240V, 60 Hz, single phase (22.4 A) through a strain relief fitting — there is no cord and plug, so plan for a licensed electrician. Food pans and pan grates are not included; a basic set of pan support dividers is supplied, and some layouts need additional dividers.
Ideal Applications
Five independently controlled wells in 70-5/16 inches give a high-volume hot-food program room for a complete chicken, entrée, and sides menu.
GHM-6C FULL Specifications
| Model / Base Item No. | Giles GHM-6C FULL / 72063 |
|---|---|
| Type | Countertop heated food merchandiser, full operator service |
| Food Wells | 5; each holds (1) full-size + (1) 1/3-size pan |
| Pan Depth | 2-1/2" to 4" (pans not included) |
| Width | 70-5/16" (1786 mm) |
| Depth | 44-1/8" (1121 mm) |
| Height | 28-13/16" (732 mm) |
| Heating | Independent upper ceramic and lower Calrod® control per well |
| Lighting | LED, 2500K warm white |
| Electrical | 208/240V, 60 Hz, 1-phase, 4.7–5.4 kW, 22.4 A |
| Connection | Field wired through strain relief fitting |
| Glass | Curved tempered front (pneumatic opening); mirror-tint side glass and rear sliding doors |
| Construction | All stainless steel |
| Included | Folding HDPE cutting board, basic pan support divider set |
| Options | 4" adjustable legs; utensil holder cutting board; 2-ft self-serve end section; Giles PUP-6 mobile base |
| Crated Weight / Size | 625 lbs; 98" x 45" x 44" (112 cu ft) |
| Origin | Manufactured and assembled in the USA |
| Warranty | Giles 24-month limited warranty |
Frequently Asked Questions
How many pans does the Giles GHM-6C FULL hold?
It has five food wells, and each well holds one full-size pan plus one 1/3-size pan from 2-1/2 to 4 inches deep. Pans are not included.
What is the difference between GHM-6C FULL and GHM-6C SELF?
The FULL version is set up for full operator service from the rear sliding doors. The SELF version adds a 2-ft customer self-serve section at one end, with a glass sneeze guard.
What power does the GHM-6C require?
It runs on 208/240V, 60 Hz, single-phase power at 4.7 to 5.4 kW and 22.4 amps. The unit is field wired through a strain relief fitting rather than plugged in.
What are the dimensions of the GHM-6C?
The case is 70-5/16 inches wide, 44-1/8 inches deep, and 28-13/16 inches tall. It ships crated at 625 lbs.
What is Giles item number 72063?
72063 is the Giles base item number for the GHM-6C heated merchandiser, used when ordering the unit with its glass, service style, and cutting board codes.
Is there a mobile base for the GHM-6C?
Yes. The Giles PUP-6 (part 71656) is a 70-17/32-inch stainless steel portable base with locking casters designed to hold the GHM-6C.
