$ 15,599.00Giles Enterprises GVH-C 32 Inch Countertop Ventless Recirculating Hood for Electric Fryers, Griddles & Ovens, 393-491 CFM, Pre-Plumbed for Ansul R-102

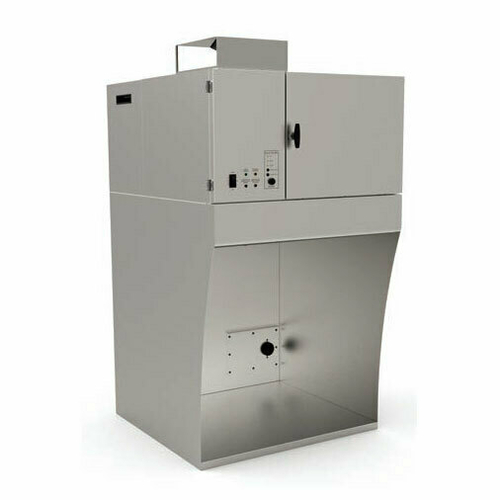

Giles GVH-C — 32" Countertop Ventless Recirculating Hood
The Giles GVH-C is a 32-inch, Type-1 countertop ventless recirculating hood for locations where conventional ventilation hoods are not an option because of restrictions or cost. It works with a wide variety of small electric-only appliances — fryers, griddles, cook-tops, ovens, conveyor ovens and toasters — and its proven 3-stage air cleaning removes grease-laden vapor at 393–491 CFM with no ducting to the outside. Giles lists it to UL-YZCT (UL-YZCT-7 in Canada) in compliance with ANSI/UL-710B. The hood is factory pre-plumbed with piping, nozzles, detector link brackets, conduit and cable, ready for connection to the required, customer-supplied Ansul R-102 wet chemical fire suppression system. An optional interlocked 50 A appliance power receptacle helps minimize on-site electrical work, and durable stainless steel construction stands up to daily use.
Key Features of the GVH-C
A compact countertop hood that brings a range of electric cooking to spaces without ductwork.
3-Stage Air Cleaning
Recirculating baffle, electronic air cleaner and charcoal filter system designed to not require ducting to an outside vent.
Multi-Appliance Listing
Approved for small electric fryers, griddles, ranges, ovens, conveyor ovens and toasters within Giles' listing limits.
Pre-Plumbed for Ansul
Factory piping, nozzles, detector link brackets, conduit and cable ready for a customer-supplied Ansul R-102.
Exhaust Air Diverter
Directs cleaned air to the side and rear, allowing use in spaces with lower overhead clearance.
Safety Features
Anti-restart protection after power interruption, push-to-start power switch, and LED indicator status lights.
Optional 50 A Receptacle
Factory-installed interlocked NEMA 6-50R (1-phase) or NEMA 15-50R (3-phase) appliance receptacle.
Fire suppression not included: The GVH-C is pre-plumbed only; the required Ansul R-102 system, its field installation, final set-up and commissioning by an authorized Ansul distributor are at the customer's expense. The hood is approved for electrically heated appliances only (no gas), and Giles must approve a completed Hood Approval Letter (HAL) confirming local approvals and that the appliances are within the listing limits before accepting the order.
Ideal Applications
Countertop cooking wherever a ducted hood is restricted or too costly.
GVH-C Specifications
| Model | Giles GVH-C (item 71573) |
|---|---|
| Type | Countertop Type-1 ventless recirculating hood |
| Listing | UL-YZCT (UL-YZCT-7 Canada); complies with ANSI/UL-710B (per Giles) |
| Approved Appliances | Electrically heated only: fryers, griddles, ranges, ovens, conveyor ovens, toasters; no gas |
| Fryer Limits | 100 A total (50 A max through hood interlock); 576 sq in; 140 lbs / 19.1 gal shortening; 350°F |
| Griddle Limits | 35 A; 480 sq in; 450°F |
| Range Limits | 44 A total; 4 elements max |
| Oven / Conveyor / Toaster | 55 A total (50 A max through hood); 500°F |
| Exhaust / Sound | 393–491 CFM; approx. 65 dB |
| Fire Suppression | Pre-plumbed for customer-supplied Ansul R-102 (not included) |
| Electrical (Hood) | 208–240V, 1-phase, 5 A |
| Appliance Receptacle | Optional 50 A: suffix -4 NEMA 6-50R 1-phase, suffix -5 NEMA 15-50R 3-phase |
| Width | 32" |
| Depth | 36-11/16" |
| Height | 58-7/8" |
| Footprint | 8.2 sq ft |
| Construction | Stainless steel |
| Weight | 320 lbs uncrated; 435 lbs crated |
| Warranty | 24 months parts and labor |
Frequently Asked Questions
What appliances can be used under the Giles GVH-C?
Small electrically heated appliances only: fryers, griddles, ranges, ovens, conveyor ovens and toasters, each within Giles' listed amperage, area and temperature limits. Gas appliances are not allowed.
Is the Ansul fire suppression system included?
No. The GVH-C is factory pre-plumbed for an Ansul R-102 system, but the system itself and its installation and commissioning by an authorized Ansul dealer are customer-supplied.
Does the GVH-C need to be vented outside?
No. Its recirculating 3-stage air cleaning system is designed to not require ducting to an outside vent; local approval is still required.
What is the exhaust airflow?
Giles rates the GVH-C at 393–491 CFM with a sound level of approximately 65 dB.
Can it supply power to my appliance?
Yes, with the optional interlocked 50 A receptacle: NEMA 6-50R for 1-phase (suffix -4) or NEMA 15-50R for 3-phase (suffix -5).
What is the difference between the GVH-C and GVH-F?
The GVH-C is the countertop version at 58-7/8" tall; the GVH-F is a free-standing floor model, 37-1/8" wide and 82-3/16" tall, with the same appliance limits.
