Manitowoc IYT0900W SpaceMaker Marine Ice Machine Head Half Dice 785 lb Water Cooled 30" Indigo NXT Bin Sold Separately
Manitowoc IYT0900W SpaceMaker — 30" Water-Cooled Marine Half Dice Ice Head, 785 lb
The Manitowoc IYT0900W SpaceMaker (IYT0900W-261V) is the half-dice version of Manitowoc's Indigo NXT iT0900 marine ice head. Every utility connection enters through the top panel, letting the cabinet sit right against galley walls with only 2-3/4" clearance at the back. It produces up to 785 lbs. of half dice cubes per day — the dense, quick-cooling cube preferred for soft drinks and blended cocktails — with a water-cooled condenser that keeps heat out of enclosed galleys. A fully sealed cabinet, front isolation switch and panels that remove while bulkhead-mounted are built for life at sea. This is the ice machine head only — the storage bin is ordered separately; Manitowoc recommends the SeaKing marine bin.

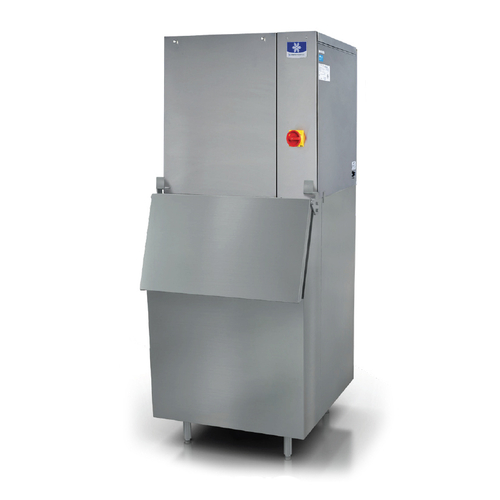

Head only — bin not included: product photos may show the SpaceMaker on its recommended SeaKing bin, but this listing is for the IYT0900W ice machine head alone. The storage bin is sold separately. The unit is water cooled and needs a condenser water supply in addition to the potable ice-making water line.
Key Features of the IYT0900W SpaceMaker
SpaceMaker takes the standard Indigo NXT platform and rebuilds the cabinet around the realities of a ship's galley.
Top-Panel Utility Access
Water, drain and electrical connections enter through the top, so the cabinet sits flush against bulkheads with only 2-3/4" behind it.
Half Dice Cubes
3/8" x 1-1/8" x 7/8" cubes pack tightly in glasses and blend easily for onboard bar service.
Fully Sealed Cabinet
Top, front, back and sides are completely sealed against galley moisture, and the unit meets USPHS and NSF specifications.

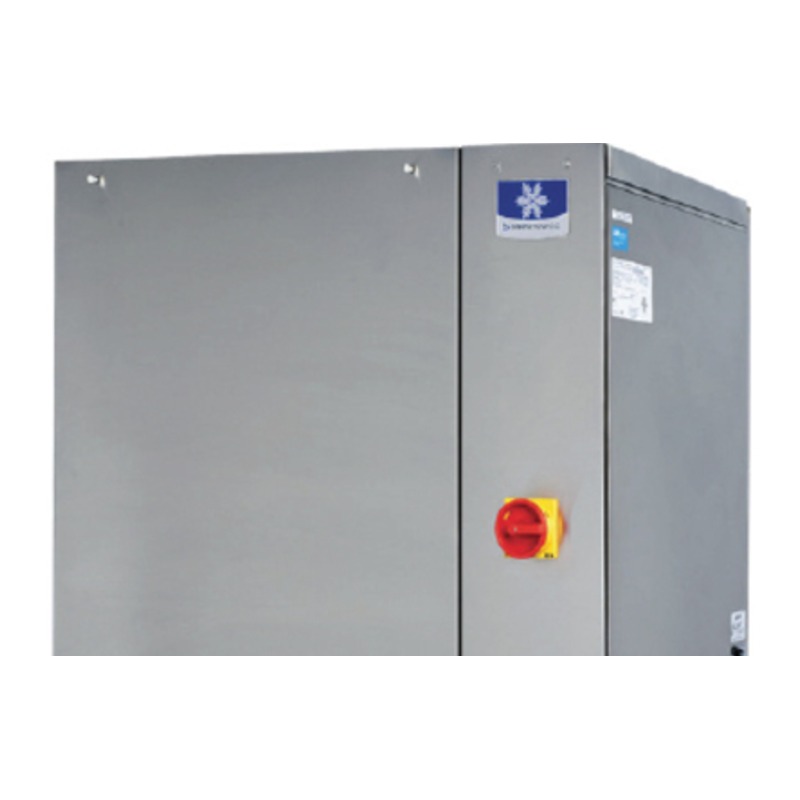

Front Isolation Switch
A front-mounted isolation switch cuts power to the entire unit immediately, a key safety requirement at sea.
Serviceable When Mounted
Top and side panels remove even when the unit is fixed to the bulkhead, and the evaporator is cleaned from the front.
Indigo NXT Intelligence
The standard Indigo NXT control system monitors refrigeration and sub-system controls 24/7 and flags issues before they cause downtime.
Ideal Applications
Built for vessels and any installation where every inch of wall space counts.
Recommended Bin & Accessories
Manitowoc lists these for the SpaceMaker iT0900; each is sold separately.
IYT0900W SpaceMaker Specifications
| Model | Manitowoc IYT0900W-261V SpaceMaker (Indigo NXT iT0900) |
|---|---|
| Type | Marine ice machine head, water cooled, self-contained |
| What's Included | Ice machine head only; storage bin sold separately |
| Ice Shape | Half dice, 3/8" x 1-1/8" x 7/8" |
| Production (70° air / 50° water) | 785 lbs. (356 kg) per 24 hrs |
| Production (90° air / 70° water) | 665 lbs. (302 kg) per 24 hrs |
| Energy Use | 4.02 kWh per 100 lbs. of ice |
| Potable Water Use | 19 gal. (71.9 L) per 100 lbs. of ice |
| Condenser Water Use | 135 gal. (511 L) per 100 lbs. of ice |
| Dimensions (W x D x H) | 30" x 24.5" x 26.5" |
| Electrical | 208-230 V / 60 Hz / 1 phase; 1195.2 W |
| Min. Ampacity / Max. Fuse | 8.8 A / 15 A |
| Refrigerant | R410A |
| Ambient / Water Temperature | 40°F to 110°F ambient; 40°F to 90°F water |
| Water Pressure | 20 to 80 psi potable; 20 to 276 psi condenser |
| Minimum Back Clearance | 2-3/4" |
| Weight | Approx. 200 lbs. net, 215 lbs. gross |
| Certifications | cULus listed; IEC 335-1 / 335-2-24; meets USPHS and NSF specifications |
Frequently Asked Questions
Does the Manitowoc IYT0900W SpaceMaker include a bin?
No. This listing is the ice machine head only. Manitowoc recommends pairing it with the SeaKing marine bin, which is sold separately.
What makes the SpaceMaker different from a standard IYT0900W?
All utilities connect through the top panel so the cabinet can sit against walls with 2-3/4" back clearance, and the cabinet is fully sealed with a front isolation switch for marine use.
How much ice does the IYT0900W SpaceMaker produce?
Up to 785 lbs. of half dice cubes per 24 hours at 70° air and 50° water, and 665 lbs. at 90° air and 70° water.
What utilities does it need?
A 208-230 V / 60 Hz single-phase circuit with a 15 A maximum fuse, a potable water line for ice making and a condenser water supply for the water-cooled condenser.
What is the difference between the IYT0900W and IDT0900W SpaceMaker?
They share the same 30" SpaceMaker cabinet. The IYT0900W makes half dice cubes; the IDT0900W makes larger 7/8" dice cubes.
Can it be serviced while bolted down?
Yes. The top and side panels are designed to come off even when the unit is fixed to the bulkhead, and the evaporator is accessed from the front.
