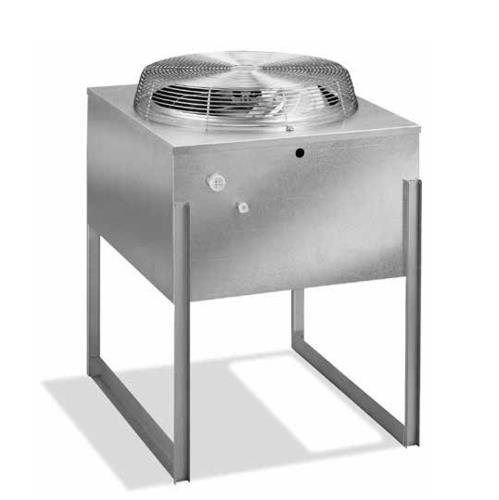

Manitowoc JCT1500-251 Remote Condensing Unit Vertical Discharge Air Cooled for Salt Spray Environments

Enhance your ice production efficiency with the Manitowoc JCT1500-251 Remote Condensing Unit. Designed specifically for use with Indigo® NXT™ Series ice cube machines, this vertical discharge air-cooled condenser is the perfect solution for locations susceptible to salt spray, ensuring durability and reliability in challenging environments.

Key Features:

• Compatible with Indigo NXT Series models including iT0500N, iT1200N, iT1500N, and iT1900N.
• Operates efficiently within a temperature range from -20°F (-29°C) to 120°F (49°C).
• Features a coated coil model for enhanced performance in salty conditions.
• Allows for installation with up to 20” (50.8 cm) of bottom clearance.
• Pre-charged components with quick-connect fittings for straightforward installation.

Installation Flexibility:

The Manitowoc remote condensing system is designed for maximum location flexibility, making it easy to position away from the ice machine:

• Maximum line length of 100 feet (30 m) allows for versatile installation options.
• Accommodates a vertical rise of up to 35 feet (10.5 m) above the ice machine.
• Supports a vertical drop of up to 15 feet (4.5 m) below the ice machine.

Ensure optimal performance and energy conservation by following installation guidelines for your specific setup. When installing in salt spray environments, the coated model ("Q") is recommended to increase longevity and reliability.

Warranty Information:

The Manitowoc JCT1500-251 comes with a comprehensive 3-year parts and labor warranty, providing peace of mind for your investment. Please refer to the warranty statement for complete details.

Order your ice cube machine, ice storage bin, vertical discharge remote condenser, and interconnecting line set separately to complete your setup.

Upgrade your ice machine's performance with the Manitowoc JCT1500-251 Remote Condensing Unit for superior efficiency and durability in demanding environments.
