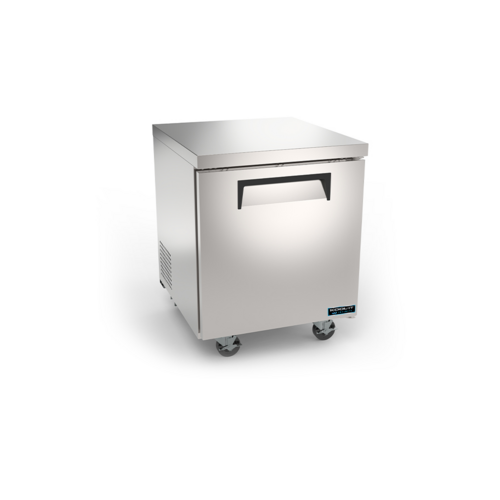

Kool It Signature MVP KIN27UCF-HC Undercounter Reach-In Freezer
Kool It Signature MVP KIN27UCF-HC — 27" Undercounter Reach-In Freezer
The Kool It Signature MVP KIN27UCF-HC is a one-section commercial undercounter freezer that slides neatly beneath standard counters to maximize frozen storage without consuming valuable floor space. Powered by eco-friendly R290 refrigerant, automatic defrost, and a rear-mounted self-contained refrigeration system, it holds a steady -8°F to 0°F — all in a 35.2" tall, 430 stainless steel package built for daily commercial kitchen demands.
Key Features of the KIN27UCF-HC
Every feature on the KIN27UCF-HC is designed for space efficiency, effortless maintenance, and consistent freeze performance in tight commercial kitchen environments.
R290 Eco-Friendly Refrigerant
Operates on R290 hydrocarbon refrigerant — a low-GWP, environmentally responsible option that delivers efficient, consistent freezing performance from -8°F to 0°F.
Auto Defrost & Auto Evaporation
Fully automatic defrost cycle eliminates manual defrost maintenance, and built-in auto evaporation handles condensation — so the unit runs efficiently with zero operator intervention.
Digital LED Thermostat
Electronic thermostat with a clear digital LED display lets staff read and adjust temperatures at a glance — keeping frozen product at the correct holding temperature every service.
Triple-Grade Stainless Construction
430 stainless steel exterior, 201 stainless interior, and a 304 stainless interior floor — each grade chosen for where it matters most, delivering durability and easy cleaning throughout.
Tool-Free Magnetic Door Gasket
The magnetic door gasket pops out and back in without any tools — making routine seal inspections and replacements a quick, tool-free task that any staff member can handle.
Removable Condenser Access Board
A removable installation board makes it easy to access the rear-mounted condenser coil for cleaning and service — protecting long-term efficiency with minimal maintenance effort.
Counter-Ready Height: At 35.2" tall, the KIN27UCF-HC is designed to fit under standard commercial countertops, freeing up valuable workspace above while adding frozen storage directly where you need it.
Ideal Applications
The KIN27UCF-HC's compact, counter-height design makes it the go-to undercounter freezer solution across a wide range of commercial foodservice environments.
KIN27UCF-HC Specifications
| Model | KIN27UCF-HC |
|---|---|
| Type | Undercounter Reach-In Freezer, One Section |
| Doors | 1 — Hinged Solid |
| Shelves | 1 Adjustable Heavy-Duty Epoxy Coated Wire Shelf |
| Exterior Dimensions | 27" W × 29.5" D × 35.2" H |
| Interior Dimensions | 22.4" W × 19.8" D × 23.5" H |
| Temperature Range | -8°F to 0°F (-22°C to -18°C) |
| Refrigerant | R290 |
| Refrigeration System | Rear-Mount Self-Contained |
| Defrost | Automatic |
| Condensation | Auto Evaporation |
| Compressor | 3/7 HP |
| Electrical | 115V / 60Hz / 1-Phase |
| Amperage | 3.6 A |
| Casters | 4 × 4" (Front 2 Locking) |
| Exterior Material | 430 Stainless Steel |
| Interior Material | 201 Stainless Steel |
| Interior Floor | 304 Stainless Steel |
| Shipping Weight | 176 lbs |
| Certifications | cETLus, ETL-Sanitation |
Frequently Asked Questions
What temperature does the KIN27UCF-HC maintain?
The KIN27UCF-HC holds a temperature range of -8°F to 0°F (-22°C to -18°C), making it well-suited for storing frozen proteins, prepared frozen meals, ice cream, and other frozen food products in commercial kitchens.
Does this unit require manual defrosting?
No — the KIN27UCF-HC features fully automatic defrost and auto evaporation of condensation water. There is no manual defrost maintenance required, reducing operator workload and keeping the unit running at peak efficiency.
Will the KIN27UCF-HC fit under a standard commercial counter?
Yes. At 35.2" in height, the KIN27UCF-HC is specifically designed to fit beneath standard commercial kitchen countertops, allowing you to add frozen storage capacity without sacrificing counter workspace above.
What refrigerant does this undercounter freezer use?
The KIN27UCF-HC uses R290, a natural hydrocarbon refrigerant with a very low Global Warming Potential (GWP). It's one of the most environmentally responsible refrigerant choices available in commercial refrigeration today.
Is the KIN27UCF-HC certified for commercial use?
Yes. The unit carries cETLus certification for electrical safety in the US and Canada, and ETL-Sanitation listing confirming compliance with commercial food safety and sanitation standards — making it approved for health department inspections.
Does it come with casters?
Yes — four 4" casters are included standard, with the two front casters locking so you can reposition the unit easily and then secure it in place under your counter.
