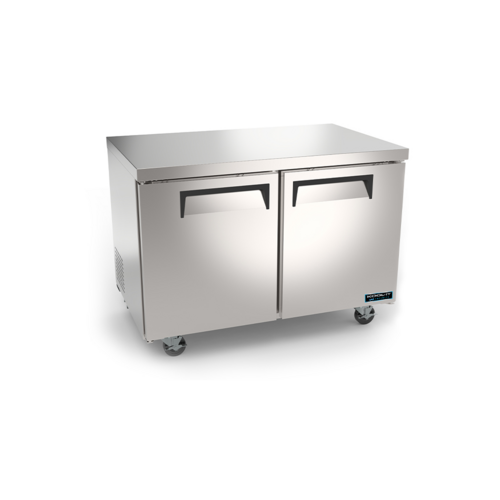

Kool It Signature MVP KIN36UCF-HC 36" Two-Section Undercounter Reach-In Freezer
Kool It Signature MVP KIN36UCF-HC — 36" Two-Section Undercounter Reach-In Freezer
The Kool It Signature MVP KIN36UCF-HC is a two-section, 36" commercial undercounter freezer built to maximize frozen storage capacity beneath your prep or service counter. Two independent storage sections, fully automatic defrost, and eco-friendly R290 refrigerant deliver a reliable -8°F to 0°F temperature range — all in a 35.2" tall, 430 stainless steel cabinet engineered for daily commercial kitchen demands.
Key Features of the KIN36UCF-HC
The KIN36UCF-HC doubles frozen storage capacity under your counter while maintaining the same space-efficient, low-maintenance design as single-section undercounter freezers.
R290 Eco-Friendly Refrigerant
Operates on R290 hydrocarbon refrigerant — a natural, low-GWP option that maintains a consistent -8°F to 0°F freeze range while reducing the unit's environmental impact.
Auto Defrost & Auto Evaporation
Fully automatic defrost cycle and built-in condensate evaporation mean zero manual maintenance — keeping both sections running efficiently throughout service without any staff intervention.
Digital LED Thermostat
Electronic thermostat with a front-facing digital LED display gives instant, accurate temperature visibility — so staff can verify freeze integrity at a glance during every shift.
Triple-Grade Stainless Construction
430 stainless exterior, 201 stainless interior, and 304 stainless interior floor — each grade selected for where durability and cleaning resistance matter most in a commercial undercounter freezer.
Tool-Free Magnetic Door Gaskets
Both door gaskets can be removed and replaced without any tools — making routine seal maintenance a fast, floor-level task anyone on your team can handle.
Removable Condenser Access Board
A removable installation board on the rear-mount condenser coil allows fast, unobstructed access for routine cleaning and service — protecting long-term efficiency with minimal downtime.
Counter-Ready at 35.2": The KIN36UCF-HC is designed to fit under standard commercial countertops at 35.2" tall — doubling your undercounter frozen storage capacity without adding any counter height or floor footprint.
Ideal Applications
The KIN36UCF-HC is the right choice when a single-section undercounter freezer isn't enough — giving you double the capacity in the same counter-height profile.
KIN36UCF-HC Specifications
| Model | KIN36UCF-HC |
|---|---|
| Type | Undercounter Reach-In Freezer, Two Section |
| Doors | 2 — Hinged Solid |
| Shelves | 2 × 1 Adjustable Heavy-Duty Epoxy Coated Wire Shelf (per door) |
| Exterior Dimensions | 36.2" W × 29.5" D × 35.2" H |
| Interior Dimensions | 33" W × 19.8" D × 23.5" H |
| Temperature Range | -8°F to 0°F (-22°C to -18°C) |
| Refrigerant | R290 |
| Refrigeration System | Rear-Mount Self-Contained |
| Defrost | Automatic |
| Condensation | Auto Evaporation |
| Compressor | 1/2 HP |
| Electrical | 115V / 60Hz / 1-Phase |
| Amperage | 4.1 A |
| Casters | 4 × 4" (Front 2 Locking) |
| Exterior Material | 430 Stainless Steel |
| Interior Material | 201 Stainless Steel |
| Interior Floor | 304 Stainless Steel |
| Shipping Weight | 218 lbs |
| Certifications | cETLus, ETL-Sanitation |
Frequently Asked Questions
What temperature does the KIN36UCF-HC maintain?
The KIN36UCF-HC holds a temperature range of -8°F to 0°F (-22°C to -18°C), suitable for storing frozen proteins, ice cream, prepared frozen meals, and other frozen food products in a commercial kitchen environment.
Does the KIN36UCF-HC require manual defrosting?
No — the unit has fully automatic defrost and auto evaporation of condensation water. No manual defrost maintenance is required, keeping both sections operating efficiently without any operator intervention.
Will the KIN36UCF-HC fit under a standard commercial counter?
Yes. At 35.2" in height, the KIN36UCF-HC is designed to fit beneath standard commercial kitchen countertops, adding two-section frozen storage under your workspace without consuming counter surface or additional floor space.
What refrigerant does the KIN36UCF-HC use?
The KIN36UCF-HC uses R290, a natural hydrocarbon refrigerant with a very low Global Warming Potential (GWP) — one of the most environmentally responsible refrigerant choices available for commercial undercounter freezers.
Is the KIN36UCF-HC cETLus certified?
Yes. The unit carries cETLus certification for electrical safety in the US and Canada, and ETL-Sanitation listing confirming compliance with commercial food safety and sanitation standards.
What is the difference between the KIN36UCF-HC and the KIN27UCF-HC?
The KIN36UCF-HC is a 36.2" wide two-section unit with two doors and approximately 33" of interior width, while the KIN27UCF-HC is a 27" single-section unit with one door. The KIN36UCF-HC provides roughly 47% more interior width and two independent storage sections for better organization.
