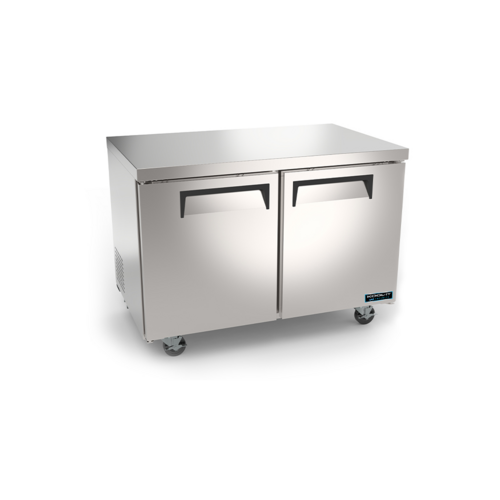

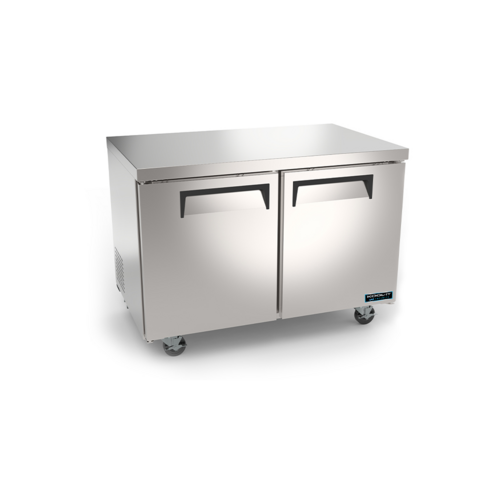

Kool It Signature MVP KIN48UCF-HC 48" Two-Section Undercounter Reach-In Freezer
Kool It Signature MVP KIN48UCF-HC — 48" Two-Section Undercounter Reach-In Freezer
The Kool It Signature MVP KIN48UCF-HC is a 48" two-section commercial undercounter freezer that maximizes frozen storage capacity under your prep or service counter without adding counter height. Powered by eco-friendly R290 refrigerant and fully automatic defrost, it maintains a reliable -8°F to 0°F across two independent sections — all in a 35.2" tall, 430 stainless steel cabinet with 42.6" of interior width for organized, high-capacity undercounter frozen storage.
Key Features of the KIN48UCF-HC
The KIN48UCF-HC delivers more undercounter frozen storage than any standard single-door unit — with the same proven low-maintenance R290 platform in a wider two-section format.
R290 Eco-Friendly Refrigerant
Runs on R290 hydrocarbon refrigerant with very low GWP — maintaining a steady -8°F to 0°F across both sections while cutting environmental impact vs. conventional refrigerants.
Auto Defrost & Auto Evaporation
Fully automatic defrost and built-in condensate evaporation run without any staff involvement — keeping both sections operating efficiently with zero manual maintenance required.
Digital LED Thermostat
Front-facing electronic thermostat with a digital LED display lets staff confirm freeze integrity at a glance — ensuring both sections stay within the safe -8°F to 0°F operating range.
Triple-Grade Stainless Construction
430 stainless exterior, 201 stainless interior, 304 stainless interior floor — each grade chosen to maximize durability and cleanability where commercial kitchen demands are highest.
Tool-Free Magnetic Door Gaskets
Both door gaskets snap out and reinstall without any tools — making routine seal maintenance a fast, floor-level task that doesn't require a service call.
Self-Closing, 90° Stay-Open Doors
Both doors auto-close to protect frozen product, but stay open at 90° during loading — giving staff hands-free access while stocking or pulling frozen ingredients.
Counter-Ready at 35.2": At 35.2" tall, the KIN48UCF-HC fits under standard commercial countertops — providing 42.6" of interior frozen storage width without adding counter height or consuming additional floor space.
Ideal Applications
The KIN48UCF-HC suits operations that need significant undercounter frozen storage capacity organized across two independently accessible sections.
KIN48UCF-HC Specifications
| Model | KIN48UCF-HC |
|---|---|
| Type | Undercounter Reach-In Freezer, Two Section |
| Doors | 2 — Hinged Solid |
| Shelves | 2 × 1 Adjustable Heavy-Duty Epoxy Coated Wire Shelf |
| Exterior Dimensions | 47.2" W × 29.5" D × 35.2" H |
| Interior Dimensions | 42.6" W × 19.8" D × 23.5" H |
| Temperature Range | -8°F to 0°F (-22°C to -18°C) |
| Refrigerant | R290 |
| Refrigeration System | Rear-Mount Self-Contained |
| Defrost | Automatic |
| Condensation | Auto Evaporation |
| Compressor | 1/2 HP |
| Electrical | 115V / 60Hz / 1-Phase |
| Amperage | 4.5 A |
| Casters | 4 × 4" (Front 2 Locking) |
| Exterior Material | 430 Stainless Steel |
| Interior Material | 201 Stainless Steel |
| Interior Floor | 304 Stainless Steel |
| Shipping Weight | 266 lbs |
| Certifications | cETLus, ETL-Sanitation |
Frequently Asked Questions
What temperature does the KIN48UCF-HC maintain?
The KIN48UCF-HC holds -8°F to 0°F (-22°C to -18°C) across both sections, suitable for storing frozen proteins, ice cream, and prepared frozen items in a commercial kitchen environment.
Does the KIN48UCF-HC require manual defrosting?
No — the unit has fully automatic defrost and auto evaporation of condensation water. Both sections operate at peak efficiency without any manual defrost maintenance.
Will the KIN48UCF-HC fit under a standard commercial counter?
Yes. At 35.2" tall, the KIN48UCF-HC is designed to fit beneath standard commercial kitchen countertops, providing two-section undercounter frozen storage without adding counter height or consuming extra floor space.
What refrigerant does the KIN48UCF-HC use?
The KIN48UCF-HC uses R290 — a natural hydrocarbon refrigerant with very low Global Warming Potential, making it one of the more environmentally responsible choices in commercial undercounter freezers.
Is the KIN48UCF-HC cETLus certified?
Yes. The unit carries cETLus certification for electrical safety in the US and Canada and ETL-Sanitation listing confirming compliance with commercial food safety and sanitation standards.
How does the KIN48UCF-HC compare to the KIN36UCF-HC?
The KIN48UCF-HC is 47.2" wide with 42.6" of interior width, while the KIN36UCF-HC is 36.2" wide with 33" of interior width. The 48" model provides significantly more undercounter frozen storage capacity in the same counter-height profile.
| Brand | Kool It Signature MVP |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | KIN48UCF-HC |
| Brand | Kool It Signature MVP |
| Weight | 266.00 lbs |
| Dimensions (HxWxD) | 38.70 x 47.20 x 29.50 inches |
| Height | 38.70 |
| Width | 47.20 |
| Depth | 29.50 |
| Size | 2 section |
| Width | 48"- 59" |
| Compressor HP | 1/2 HP |
| Exterior Finish | all stainless steel exterior |
| Refrigeration | self-contained, rear mounted |
| Doors | solid door(s) |
| Access Type | doors |
|
