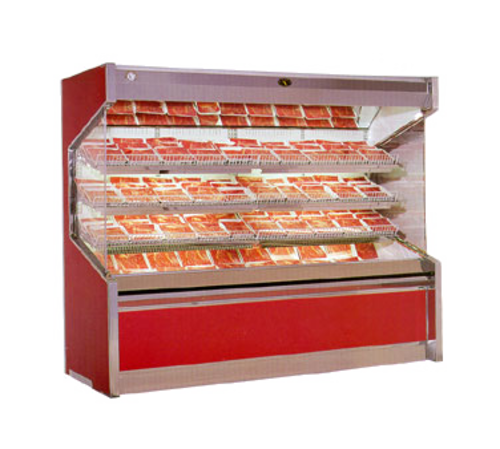

Marc Refrigeration OM-12R Open Refrigerated Display 12-Foot Merchandiser

Marc Refrigeration OM-12R Merchandiser, Open Refrigerated Display

The Marc Refrigeration OM-12R is an open refrigerated display designed to offer high product visibility and efficiency in commercial food service operations. This model is particularly suited for environments such as supermarkets, delis, and butcher shops where displaying red meat and deli products prominently is essential. The OM-12R's open design allows customers easy access to products, making it an excellent choice for high-traffic areas where quick and convenient product selection is a priority.

Constructed with a focus on durability and visibility, the OM-12R features a stainless steel deck and three levels of mirror-finish stainless steel shelving. The unit's exterior is complemented by decorator color sides, which can be selected from Marc's extensive inventory to match any store's interior design. The display is equipped with a full-length mirror to further enhance product visibility and is fitted with a PVC front bumper to protect against shopping cart impacts. The side panels are made of 1/4" Plexiglas, providing maximum visibility and safety. The insulation is a full-density, solid-core urethane, ensuring efficient temperature maintenance.

Performance-wise, the OM-12R is designed for remote refrigeration and operates on a 115/1/60 electrical system, drawing 14.5 amps. It is recommended for use with a 4-5 horsepower condenser unit, though the exact specifications should be determined by a qualified refrigeration mechanic based on the specific installation conditions. The unit's air defrost system utilizes store air for defrosting, offering cost savings by eliminating the need for electric heaters or hot gas controls. The OM-12R is designed to maintain even temperature distribution, crucial for preserving the quality of displayed products. It is important to note that the unit is intended for use in environments where the temperature does not exceed 75°F and relative humidity remains below 55%.

Specifications

• Exterior Dimensions: 138.50 x 79.50 x 34.50 inches
• Weight: 1,065 lbs
• Voltage: 115/1/60
• Amperage: 14.5 amps
• Refrigeration: Remote, 4-5 HP recommended
• Shelf Material: Mirror finish stainless steel
• Insulation: Full density, solid core urethane
• Drain Connection: 1" pipe thread

Applications

• Supermarkets can use the OM-12R to display fresh meat and deli products, enhancing customer accessibility and product visibility.
• Delis can benefit from the unit's open design, allowing quick and easy access to a variety of cold cuts and cheeses.
• Butcher shops can utilize the OM-12R to showcase premium cuts of meat, maintaining freshness with its efficient temperature control.
• Convenience stores can employ this display for ready-to-eat meals and snacks, encouraging impulse purchases through its open layout.
• Grocery stores can integrate the OM-12R into their layout to highlight seasonal or promotional items, drawing customer attention with its enhanced lighting.

Warranty

The Marc Refrigeration OM-12R comes with a one-year parts warranty. Labor coverage is not included, and there is no extended warranty on the compressor for this remote model.

From The Manufacturer
