Marc Refrigeration PD-6 S/C Display Case for Produce

Marc Refrigeration PD-6 S/C Display Case, Produce

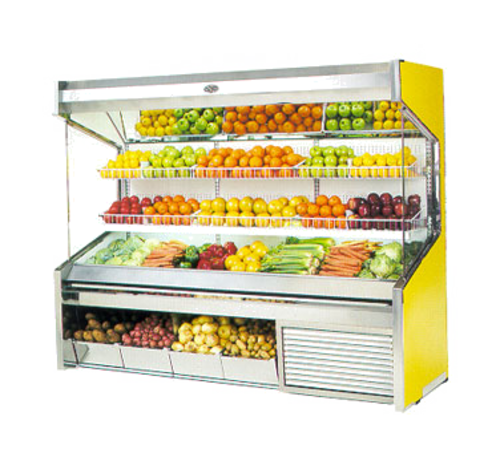

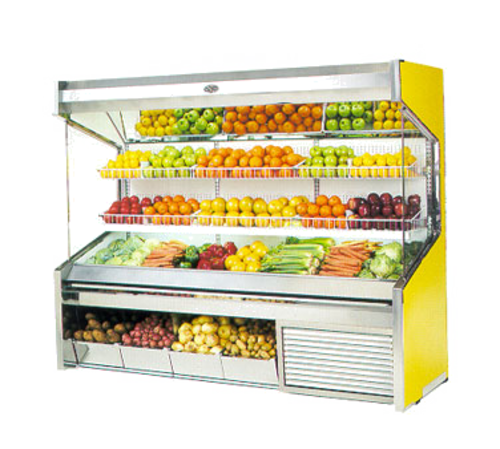

The Marc Refrigeration PD-6 S/C is a Produce Display Case designed to enhance the presentation and preservation of fresh produce in commercial food service environments. This self-contained unit is essential for grocery stores, supermarkets, and food service operations that require a reliable and visually appealing way to display fruits and vegetables. With its open design, the PD-6 S/C allows customers easy access to produce, making it an ideal choice for self-service areas.

Constructed with durability and functionality in mind, the PD-6 S/C features a robust cabinet with mirror-finish stainless steel trim and caps. The sides of the display case are available in decorator colors, allowing for customization to match store aesthetics. The unit is equipped with a full-length mirror to enhance product visibility and is built with solid core urethane insulation for efficient temperature maintenance. The display case includes two levels of white epoxy-coated wire baskets and a dry storage bin in the lower front, providing ample space for organizing produce. Plexiglass end panels ensure maximum visibility and safety, while the front bumper made of high-density PVC protects against shopping cart impacts.

In terms of performance, the PD-6 S/C operates with a self-contained refrigeration system powered by a 1 horsepower compressor. It runs on a 115/1/60 electrical configuration with an amperage of 6.4 amps, and an additional 10.5 amps for the compressor. The unit is designed for environments with air conditioning where the temperature does not exceed 75°F and relative humidity remains below 55%. The display case includes a dial thermometer for accurate temperature readings and night shades to lock in refrigeration overnight, ensuring produce stays fresh. Enhanced lighting from the top canopy and under the lower level of wire baskets highlights the produce, making it more appealing to customers.

Specifications

• Exterior Dimensions: 72.50 x 78.50 x 34.50 inches
• Weight: 775 lbs
• Electrical: 115/1/60, 6.4 amps
• Compressor: 1 HP, 230/208-60-1, 10.5 amps
• Insulation: Solid core urethane
• Wire Baskets: 2 levels, white epoxy-coated
• Drain: 1" pipe thread connection required
• Front Bumper: High-density PVC

Applications

• Supermarkets can use the PD-6 S/C to display fresh fruits and vegetables in an inviting manner, encouraging customer purchases.
• Grocery stores benefit from the open design, allowing customers to easily access produce while maintaining optimal freshness.
• Convenience stores can utilize this display case to showcase ready-to-eat produce options, enhancing their fresh food offerings.
• Hotel banquet operations can use the PD-6 S/C to present a variety of fresh produce during events, ensuring easy access for guests.
• School cafeterias can display healthy fruit and vegetable options, promoting nutritious choices among students.
