Miele PFD 408 U MasterLine HygienePro 24 Inch Undercounter Commercial Dishwasher 240V 3 Phase NSF 3 185F Final Rinse Stainless Steel

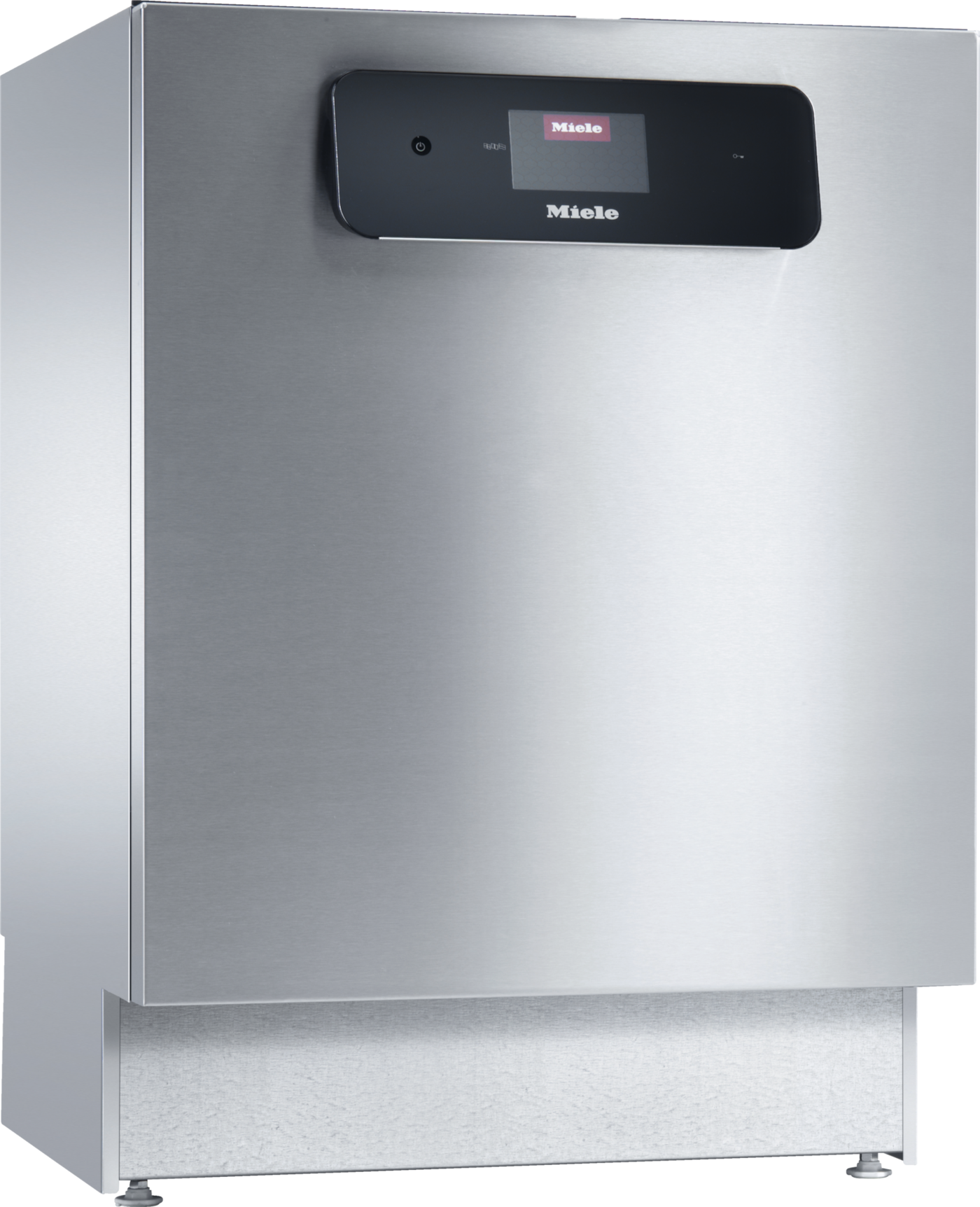

Miele PFD 408 U — 24" MasterLine HygienePro Undercounter Dishwasher, 240V 3-Phase
The Miele PFD 408 U is the HygienePro model of Miele's MasterLine range and the only one in the series classified to NSF/ANSI 3, the standard US health inspectors look for on commercial sanitizing dishwashers. Every cycle finishes with a 185°F (85°C) final rinse, the shortest program runs in 15 minutes on hot fill, and two full wash levels clean up to 152 plates or 8 baskets per hour using about 4.6 gallons of fresh water per cycle. It adds AutoOpen drying, AutoClose, a code-protectable door lock, and an aerosol steam condenser, and is built for a 28,000-cycle service life. This version runs on 240V / 60 Hz three phase, 20 A with a NEMA L15-20 twist-lock plug.
Key Features of the PFD 408 U
The PFD 408 U trades the PFD 401 U's 6-minute speed for longer, fully sanitizing cycles and NSF/ANSI 3 classification on the same 24-inch MasterLine platform.
NSF/ANSI 3 Classified
Classified to NSF/ANSI 3 for commercial sanitizing dishwashers, and also ETL listed and ADA compliant, for kitchens that must satisfy US health code inspections.
185°F Final Rinse Every Cycle
Each program ends with a 185°F (85°C) final rinse held for 1 minute, driven by a 5.4 kW heater, with adjustable rinse temperature and holding time.
Two Wash Levels, 3 Spray Arms
Three spray arms clean two full levels at once, taking wire or plastic commercial baskets for up to 152 plates or 8 baskets per hour.
AutoOpen Drying & Steam Condenser
AutoOpen assisted drying opens the door at the end of the cycle, while the aerosol steam condenser limits steam released into the room.
AutoClose & Code-Protected Lock
AutoClose pulls the door shut once it is pushed near closed, and the door lock can be code-protected so the cycle cannot be interrupted.
Fresh Water, Softener & Wi-Fi
Fresh water on every cycle with filter monitoring, an integrated softener for water up to 62.6 gpg, M Touch Flex controls, a 24-hour delay start, and Wi-Fi.
PFD 408 U Program Overview & Cycle Times
Miele's published cycle times for the PFD 408 U main programs, shown for a hot water connection and a cold water connection. Cold/Pre-wash and Reactivation programs are also included.
| Normal | 15 min hot | 25 min cold |
|---|---|
| Normal Plus | 24 min hot | 30 min cold |
| Intensive | 26 min hot | 36 min cold |
Electrical & water: This version requires a 240V / 60 Hz three-phase, 20 A circuit with a NEMA L15-20 twist-lock receptacle and a 6 ft cord. Connect both a hot and a cold water line to get the hot-fill cycle times; required flow pressure is 14.5 to 145 psi. Miele specifies the PFD 408 U for commercial (industrial) use. A 208V three-phase version (PFD 408 U 208V) is also available.
Ideal Applications
Miele lists the PFD 408 U for food service and care settings where a sanitizing, NSF/ANSI 3 classified machine is required.
PFD 408 U 240V Specifications
| Model | Miele PFD 408 U [240V] (material no. 12066610) |
|---|---|
| Range | MasterLine, HygienePro |
| Type | Built-under fresh water front loader, 2 wash levels, 3 spray arms |
| Finish | Stainless steel front and wash cabinet |
| Capacity | Up to 152 plates/hr or 8 baskets/hr |
| Service Life | 28,000 wash cycles |
| Programs | 4; shortest 15 min (Normal, hot fill) |
| Final Rinse Temperature | 185°F (85°C), 1-minute holding time; adjustable |
| Controls | M Touch Flex, 24-hour delay start |
| Door | AutoClose; door lock, code-protected if required |
| Electrical | 240V / 60 Hz / 3 ph, 20 A; heater 5.4 kW, total connected load 5.8 kW |
| Plug & Cord | NEMA L15-20 twist-lock, 6 ft (1.9 m) cord |
| Water Connections | 1 hot, 1 cold; flow pressure 14.5–145 psi (1–10 bar) |
| Water Consumption | 4.6 gal (17.5 L) per cycle |
| Hoses & Drain | 67" (170 cm) inlet hose; 59 1/8" (150 cm) drain hose, DN 22; drain pump head up to 39 3/8" (100 cm) |
| Water Softener | Integrated, up to 62.6 gpg (10.7 mmol/l); in-door salt container |
| Drying | AutoOpen assisted drying; aerosol steam condenser |
| Dimensions (W x H x D) | 23 9/16" x 32 5/16" x 23 7/16" (598 x 820 x 595 mm) |
| Required Niche Width | 23 5/8" (600 mm) |
| Usable Wash Cabinet | 22 1/16" W x 21 1/8" H; upper basket depth 18 11/16", lower 20 3/8" |
| In-Feed Height | 8 9/16" (216 mm) above floor |
| Weight | 188 lbs (85 kg) shipping |
| Noise Level | 45 dB(A) |
| Connectivity | Wi-Fi |
| Approvals | NSF/ANSI 3; ETL; ADA compliant; DIN 10512; DIN EN 17735; IPX1 splash protection |
Included Baskets & Optional Accessories
The PFD 408 U ships with Miele's MasterLine basket set; additional baskets are sold separately.

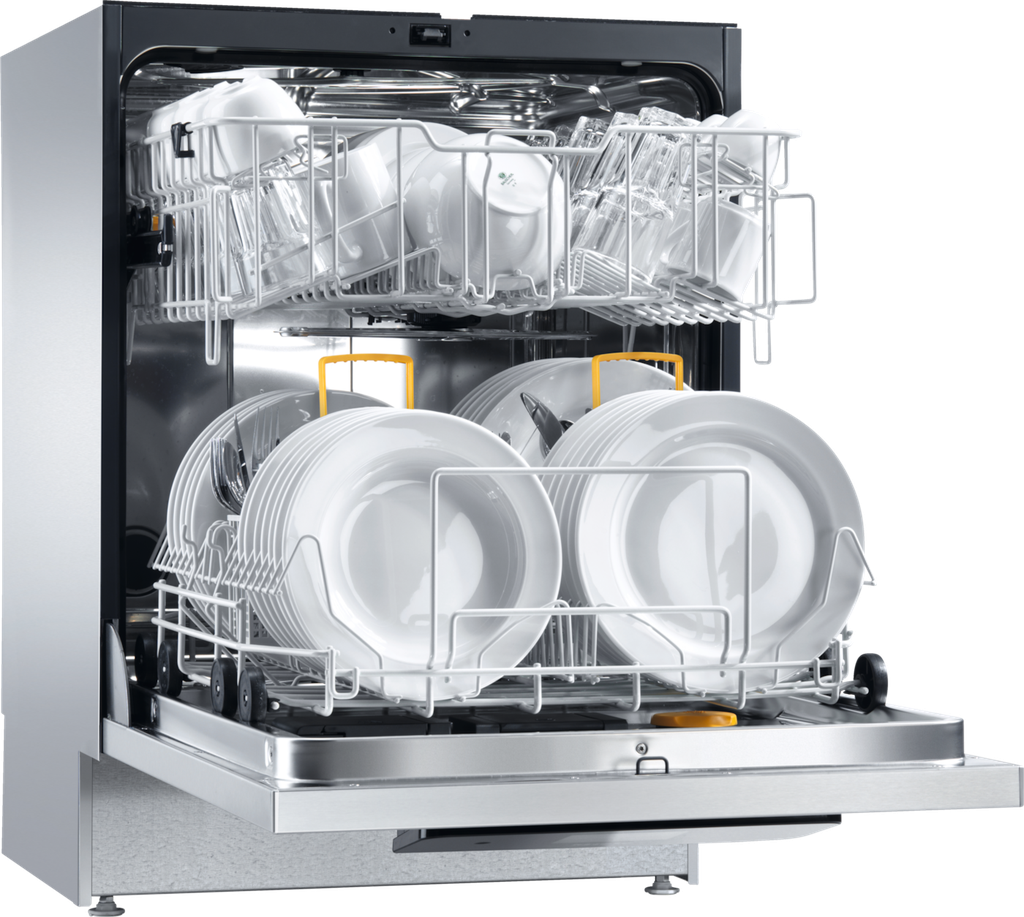

| Included: APFD 215 upper basket | With APFD 415 insert and 2 cup racks; holds 18 bowls, 32 saucers or 18 dessert plates and 20 cups; height adjustable in 2 positions by 2" |
|---|---|
| Included: APFD 220 lower basket | With 2 x E 816 plate inserts and 2 x APFD 420 cutlery inserts; holds 38 plates, or 32 plates and cutlery; loading height up to 13" |
| Optional: APFD 214 | Upper basket without inserts |
| Optional: O 892 | Upper basket with E 812 insert and 2 support rails for glassware |
| Optional: APFD 210 | Bottle basket |
Frequently Asked Questions
Is the Miele PFD 408 U NSF certified?
Yes. The PFD 408 U is classified to NSF/ANSI 3 for commercial sanitizing dishwashers, and is also ETL listed and ADA compliant.
What final rinse temperature does the PFD 408 U reach?
Every cycle finishes with a final rinse at 185°F (85°C) held for 1 minute, from a 5.4 kW heater.
What electrical supply does the PFD 408 U 240V need?
It needs a 240V / 60 Hz three-phase, 20 A circuit with a NEMA L15-20 twist-lock receptacle. Total connected load is 5.8 kW and the cord is 6 ft long.
How long is a cycle on the PFD 408 U?
Normal takes 15 minutes on hot fill and 25 on cold; Normal Plus 24 or 30 minutes; Intensive 26 or 36 minutes. Throughput is up to 152 plates or 8 baskets per hour.
How is the PFD 408 U different from the PFD 404 U?
The PFD 408 U is NSF/ANSI 3 classified and runs on three-phase power, with a 185°F final rinse on every cycle; the PFD 404 U is single phase, has faster 6-minute programs, and is not NSF classified.
What baskets come with the PFD 408 U?
It includes an APFD 215 upper basket with an APFD 415 insert and 2 cup racks, and an APFD 220 lower basket with 2 x E 816 plate inserts and 2 x APFD 420 cutlery inserts.
| Brand | Miele USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | PFD 408 U 240V |
| Brand | Miele USA |
| Weight | 188.00 lbs |
| Dimensions (HxWxD) | 32.30 x 23.60 x 23.40 inches |
| Height | 32.30 |
| Width | 23.60 |
| Depth | 23.40 |
| Type | Undercounter fresh water sanitizing dishwasher |
| Construction | stainless steel front and wash cabinet |
| Temperature | 185°F (85°C) final rinse, built-in heater |
| Voltage | 240V/60Hz/3-ph, 20 amps, NEMA L15-20P |
| Rack Capacity | up to 8 baskets/hour (152 plates/hour) |
| Programs | 4 (shortest 15 min) |
| Water Connection | 1 hot, 1 cold |
| Water Softener | integrated |
| Noise Level | 45 dB(A) |
| ADA Compliant | yes |
| Certifications | NSF/ANSI 3, ETL |
|
