Randell Custom & Serving 9505 Ice & Water Unit Drop-In

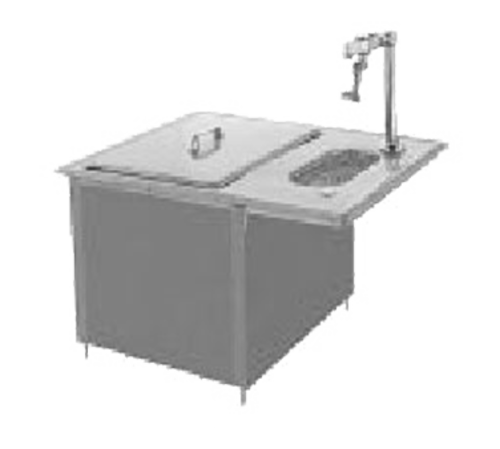

Randell 9505 Ice & Water Unit, Drop-In

The Randell Custom & Serving 9505 Ice & Water Unit is a versatile piece of equipment designed for efficient beverage service in commercial kitchens and food service operations. This drop-in unit combines the functionality of an ice bin and water station, making it an essential asset for environments such as restaurants, hotels, and institutional kitchens where quick access to ice and water is crucial. Its compact design and robust construction make it suitable for operators looking to optimize space without sacrificing performance.

This unit is constructed with a one-piece die-formed 20-gauge stainless steel top, ensuring durability and ease of cleaning. The interior features a coved corner stainless steel liner with a 1-inch drain, promoting efficient water and ice management. The outer body is made of corrosion-resistant steel, enhancing longevity in demanding kitchen environments. Key components include a glass filler with a 1/2-inch IPS connection, a stamped water trough with a 5/8-inch drain connection, and a removable stainless steel cover with a handle, all contributing to its user-friendly design.

With a capacity to hold up to 44 pounds of ice, the Randell 9505 Ice & Water Unit is insulated with foamed-in-place polyurethane, ensuring optimal ice preservation. The unit's dimensions are 23.75 inches in width, 23.38 inches in depth, and 20 inches in height, making it a compact yet efficient solution for beverage service. The water supply and drain lines are strategically located outside of the ice bin to prevent contamination and ensure smooth operation. Certified by NSF, this unit meets stringent sanitation standards, making it a reliable choice for any food service operation.

Specifications

• Exterior Dimensions: 23.75" W x 23.38" D x 20" H
• Ice Capacity: 44 lbs
• Weight: 38 lbs
• Top Material: 20-gauge stainless steel
• Interior Liner: Coved corner stainless steel
• Insulation: Foamed-in-place polyurethane
• Drain Connection: 1" ice bin drain, 5/8" water trough drain
• Glass Filler Connection: 1/2" IPS

Applications

• In full-service restaurants, this unit provides quick access to ice and water, streamlining beverage service during peak hours.
• Hotel banquet operations benefit from its compact design, allowing for efficient setup and service in limited space.
• Hospital kitchens use this unit to ensure hygienic and efficient ice and water distribution for patient meals.
• School cafeterias rely on its robust construction to handle high-volume usage during lunch periods.
• Catering services appreciate its portability and ease of integration into temporary service stations.

Warranty

The Randell 9505 Ice & Water Unit comes with a 1-year parts and labor warranty, covering any defects in material or workmanship. For additional support, contact the Unified Brands technical service hotline.
