Rockford RGI-750 Gravity Grease Interceptor – 750 Gallon, 3,780 lb, 400 GPM, H20 Rated
Rockford RGI-750 — Gravity Grease Interceptor, 750 Gallon / 3,780 lb / 400 GPM

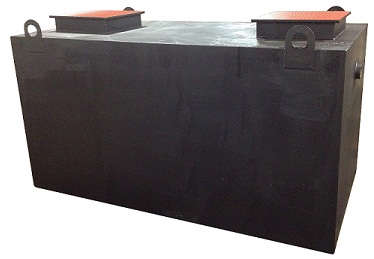

The Rockford Separators RGI-750 is a heavy-duty, two-compartment, all-welded steel gravity grease interceptor engineered for the highest-volume commercial and institutional food service facilities. With a 750-gallon liquid holding volume, 3,780 lb greasy sludge capacity, and a cover rated for H20 heavy truck traffic, the RGI-750 handles up to 400 GPM intermittent flow. The two-chamber design — accessed via two independent 6" manways — allows compartment-by-compartment inspection and service without disrupting the entire unit. All-welded steel with bituminous exterior coating. Built to IAPMO/ANSI Z1001-2014. Custom-built to order in Rockford, IL — non-returnable.
Key Features of the Rockford RGI-750
Custom-Built to Order — Non-Returnable: The RGI-750 is fabricated to order. Confirm capacity, manway height, pipe configuration, and local plumbing code requirements with your engineer or plumbing inspector before placing your order. Returns are not accepted on custom units.
RGI-750 Specifications
| Model | RGI-750 |
|---|---|
| Series | RGI — Gravity Grease Interceptor |
| Liquid Holding Capacity | 750 Gallons |
| Greasy Sludge Capacity | 3,780 lb |
| Flow Rate (Intermittent) | 400 GPM |
| Inlet / Outlet Connection | 4" Threaded |
| Vent Connection | 3" (Dual) |
| Manways | Two 6" Tall (Standard — Custom Height Available) |
| Width (Front to Back) | 48" |
| Length (Side to Side) | 84" |
| Height (Floor to Top) | 60" |
| Top to Center of Inlet | 16" |
| Top to Center of Outlet | 18" |
| Bottom to Center of Inlet | 50" |
| Bottom to Center of Outlet | 48" |
| Approx. Ship Weight | 1,900 lb |
| Body Construction | All-Welded Steel, Bituminous Coating (Exterior) |
| Cover | 3/8" Nonskid Diamond Treadplate, Stainless Flat-Head Screws |
| Gasket | Heavy-Duty Leak-Proof |
| Load Rating | H20 — Heavy Truck Traffic |
| Lifting | 4 Lifting Lugs Supplied |
| Construction Standard | IAPMO/ANSI Z1001-2014 |
| Installation | Flush-with-Grade or Above-Ground |
| Order Notes | Custom-Built to Order — Non-Returnable |
| Manufacturer | Rockford Separators, Rockford, IL |
Frequently Asked Questions
Why does the RGI-750 have two manways?
The RGI-750 is a two-compartment interceptor. The inlet chamber captures the bulk of grease and solids; the second chamber provides additional clarification before discharge. Each compartment has its own 6" manway so maintenance crews can inspect and service each chamber independently without disturbing the entire unit.
What is the greasy sludge capacity of the RGI-750?
The RGI-750 holds 3,780 lb of greasy sludge across its 750-gallon two-compartment liquid volume — designed for extended service intervals in very high-volume commercial food service operations.
Can the RGI-750 handle heavy truck traffic?
Yes. The 3/8" nonskid diamond treadplate cover is H20 load rated — rated for commercial and highway truck traffic. The unit can be installed flush with grade in parking lots, loading areas, and service drives where vehicles cross the cover.
Is the RGI-750 returnable?
No. The RGI-750 is custom-built to order and non-returnable. Confirm capacity, manway height, pipe sizes, and local plumbing code requirements with your engineer or plumbing inspector before ordering.
Can the manway height be customized?
Yes. The standard RGI-750 ships with 6" tall manways. If the unit will be buried deeper or installed under a paved overlay, specify the required manway height at time of order. Both manways can be set to the same custom height.
What construction standard does the RGI-750 meet?
The RGI-750 is built to IAPMO/ANSI Z1001-2014 — the nationally recognized construction standard for fabricated gravity grease interceptors, referenced by commercial plumbing codes across the United States.
