Compact Grease Interceptor

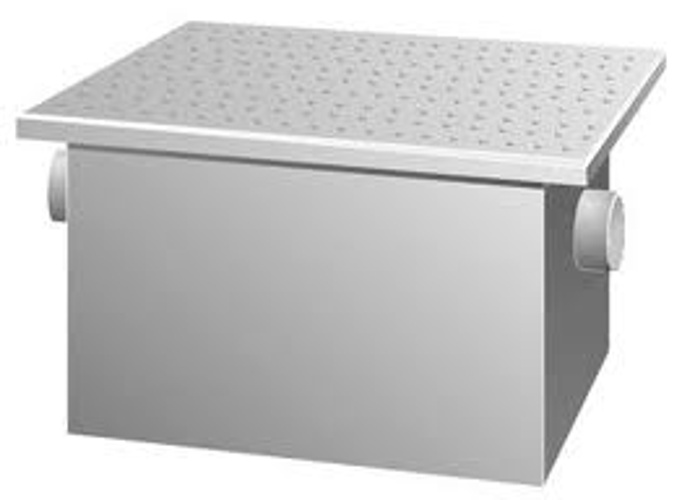

Rockford RP-10 — Compact Steel Grease Interceptor for Small Commercial Kitchens

The Rockford RP-10 is a compact all-welded steel grease interceptor built for small commercial food-service operations requiring dependable FOG (fats, oils, and grease) control. Rated at 10 GPM intermittent flow with 20 lb grease capacity and a 7.5-gallon static holding volume, it serves small cafes, juice bars, sandwich shops, and light-duty kitchen sink installations. Certified to PDI-G101 and manufactured in Rockford, IL.

20 lb
Grease / Sludge Capacity
10 GPM
Intermittent Flow Rate
7.5 gal
Static Holding Capacity
2"
No-Hub Inlet / Outlet

Key Features of the Rockford RP-10

All-Welded Steel ConstructionFully welded body with no bolted joints — built to withstand continuous exposure to hot wastewater, fatty acids, and cleaning chemicals without leaks or structural failure.
Dual Installation ModesSupports both on-the-floor and flush-with-the-floor installation, providing flexibility for new construction and retrofit projects in tight kitchen spaces.
3/16" Diamond Tread CoverPedestrian-rated removable cover secured with stainless steel flat-head screws — safe for walk-over traffic and easy to lift for routine service and cleanout.
Heavy-Duty Leak-Proof GasketPrecision gasket seals the cover to the body — blocking grease odors, preventing pest intrusion, and stopping floor seepage in compact kitchen installations.
Enamel Coating Inside & OutInterior and exterior enamel coating protects the steel from corrosive kitchen wastewater chemistry, extending service life in demanding commercial environments.
PDI-G101 CertifiedCertified to the Plumbing & Drainage Institute PDI-G101 standard — ensuring acceptance by municipal plumbing authorities and health departments across the United States.

RP-10 Specifications

ModelRP-10
Grease / Sludge Capacity20 lb
Flow Rate (Intermittent)10 GPM
Static Holding Capacity7.5 Gallons
Inlet / Outlet2" No-Hub
Width (Front to Back)15"
Length (Side to Side)20"
Height (Floor to Top)13"
Bottom to Center of Inlet9.5"
Unit Weight54 lb
Cover Material3/16" Nonskid Diamond Tread Plate
Body ConstructionAll-Welded Steel
CoatingEnamel (Interior & Exterior)
Compliance StandardPDI-G101
Installation TypeOn-Floor or Flush-with-Floor
ManufacturerRockford Separators, Rockford, IL

Frequently Asked Questions

What is the grease capacity of the Rockford RP-10?

The RP-10 holds 20 lb of grease and sludge with a 7.5-gallon static liquid holding capacity. It is designed for small commercial kitchens including cafes, juice bars, sandwich shops, and light-duty sink applications.

What flow rate does the RP-10 support?

The RP-10 is rated for 10 GPM intermittent flow with 2" no-hub inlet and outlet connections and an integrated flow control device that maximizes grease separation efficiency.

Can the RP-10 be installed flush with the floor?

Yes. The RP-10 supports both on-the-floor and flush-with-the-floor installation. The 3/16" diamond tread plate cover is pedestrian-rated and secured with stainless steel flat-head screws for safe walk-over traffic.

Is the RP-10 PDI-G101 certified?

Confirmed. The RP-10 is certified to the Plumbing & Drainage Institute PDI-G101 standard — ensuring code acceptance with most local plumbing and health authorities across the United States.

What size connections does the RP-10 use?

The RP-10 uses 2" no-hub inlet and outlet connections, suitable for small commercial sink installations and low-to-moderate flow plumbing configurations.

What optional upgrades are available for the RP-10?

Rockford offers factory upgrades at additional cost: anchor flange, epoxy coating, stainless steel construction, integral extension, alternate inlet/outlet sizing, aluminum cover, and threaded connections. Contact us for a custom quote.
