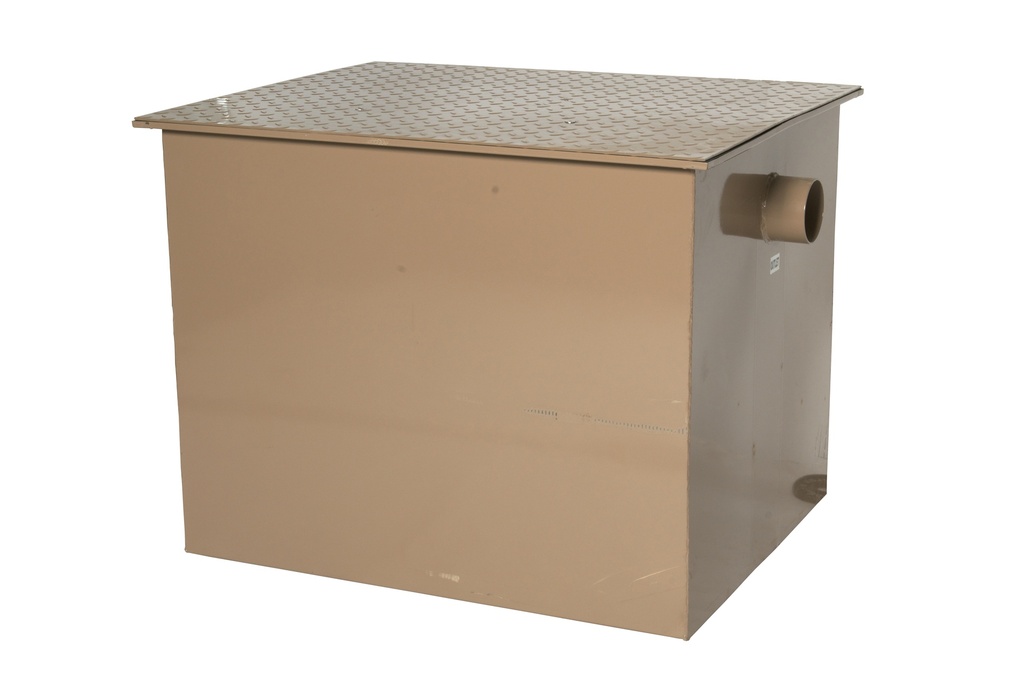

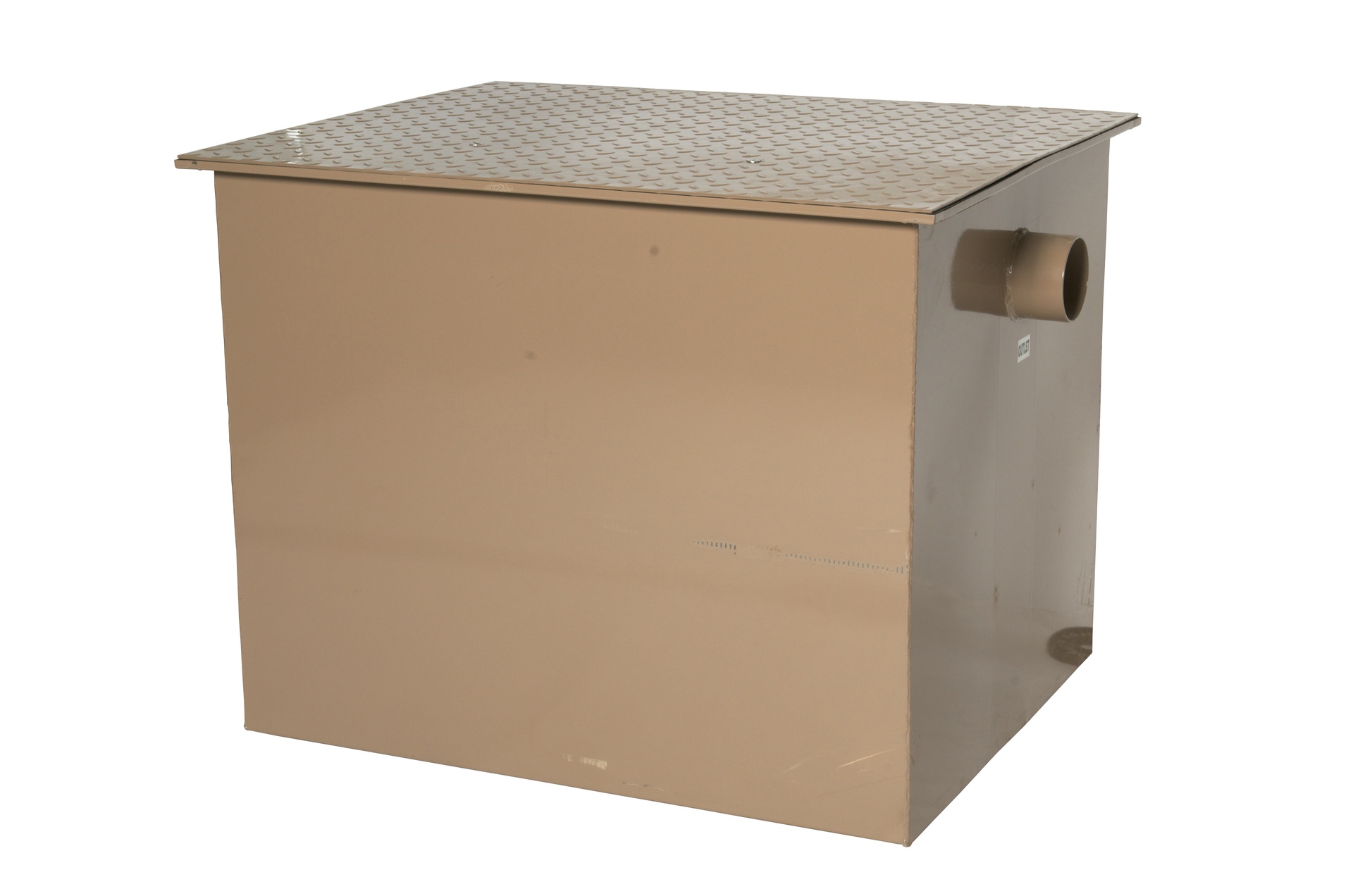

Rockford RP-100 Grease Interceptor – 200 lb Capacity, 100 GPM, 4" No-Hub
Rockford RP-100 — High-Capacity Steel Grease Interceptor for Commercial Kitchens
The Rockford RP-100 is a heavy-duty, all-welded steel grease interceptor engineered for high-volume food-service operations. Rated at 100 GPM intermittent flow and 200 lb grease capacity, it keeps drain lines clear, ensures compliance with local plumbing codes, and installs either flush with the floor or on the floor — giving you maximum placement flexibility. Built to PDI-G101 standards and manufactured in Rockford, IL, the RP-100 is the go-to choice for restaurants, cafeterias, and institutional kitchens that demand lasting grease management performance.
Key Features of the Rockford RP-100
Six engineering decisions that make the RP-100 the trusted choice for busy commercial kitchens worldwide.
All-Welded Steel Construction
Every seam is fully welded — no bolted panels that can work loose over time. The robust steel shell resists corrosion from harsh kitchen effluent and supports decades of service in demanding environments.
Dual Installation Modes
Designed for both on-the-floor and flush-with-the-floor installations, the RP-100 adapts to your facility layout without requiring special fittings or structural modifications.
Nonskid Diamond Tread Cover
The removable 3/16" diamond tread plate cover is rated for pedestrian traffic and secured with stainless steel flat-head screws, allowing safe walk-over access and quick cleanout without tools.
Heavy-Duty Leak-Proof Gasket
A precision-engineered gasket seals the cover to the body, preventing odors, vermin intrusion, and any grease seepage — maintaining a sanitary kitchen floor regardless of water pressure fluctuations.
Enamel Coating Inside & Out
A durable enamel finish coats both the interior and exterior surfaces, protecting the steel from the grease, detergents, and acidic waste typical in commercial kitchen wastewater streams.
PDI-G101 Compliant
Manufactured to the specifications of the Plumbing & Drainage Institute PDI-G101 standard, ensuring the RP-100 meets or exceeds municipal health, plumbing, and environmental requirements across the United States.
Optional Upgrade Features: The RP-100 is available with optional add-ons at additional cost — including an anchor flange, epoxy coating upgrade, full stainless steel construction, integral extension, alternate inlet/outlet sizing, aluminum cover, and threaded connections. Contact us to configure your unit.
Ideal Applications for the RP-100
At 100 GPM and 200 lb grease capacity, the RP-100 handles the grease load of high-throughput food-service environments with ease.
RP-100 Specifications
| Model | RP-100 |
|---|---|
| Grease Capacity | 200 lb |
| Flow Rate (Intermittent) | 100 GPM |
| Static Holding Capacity | 125 Gallons |
| Inlet / Outlet | 4" No-Hub |
| Width (Front to Back) | 34" |
| Length (Side to Side) | 42" |
| Height (Floor to Top) | 32" |
| Bottom to Center of Inlet | 26" |
| Unit Weight | 320 lb |
| Cover Material | 3/16" Nonskid Diamond Tread Plate |
| Body Construction | All-Welded Steel |
| Coating | Enamel (Interior & Exterior) |
| Compliance Standard | PDI-G101 |
| Installation Type | On-Floor or Flush-with-Floor |
| Manufacturer | Rockford Separators, Rockford, IL |
Frequently Asked Questions
What is the grease capacity of the Rockford RP-100?
The RP-100 holds up to 200 lb of grease and has a 125-gallon static liquid holding capacity. This combination makes it well-suited for high-volume kitchens that generate significant amounts of fats, oils, and grease during peak service periods.
Can the RP-100 be installed flush with the floor?
Yes. The RP-100 is specifically designed for both on-the-floor and flush-with-the-floor installation. Its removable diamond tread plate cover is pedestrian-safe in either configuration, making it ideal for busy kitchen floors with heavy foot traffic.
What size are the inlet and outlet connections?
The RP-100 features 4" no-hub inlet and outlet connections, which are standard for commercial plumbing systems. A flow control device is included to regulate intermittent flow and optimize grease separation efficiency.
Is the Rockford RP-100 PDI-G101 compliant?
Yes. The RP-100 is manufactured to meet the specifications of the Plumbing & Drainage Institute PDI-G101 standard — the recognized industry benchmark for grease interceptor performance in the United States. This ensures acceptance by most local plumbing inspectors and health authorities.
What optional upgrades are available for the RP-100?
Rockford offers several factory options at additional cost: anchor flange, epoxy coating, full stainless steel construction, integral extension, alternate inlet/outlet sizing, aluminum cover, and threaded connections. If you need a specific configuration, contact our team for a custom quote.
How is the cover secured and removed for cleanout?
The 3/16" diamond tread plate cover is secured with stainless steel flat-head screws, which resist corrosion in wet kitchen environments. Removal for routine cleanout is straightforward with a standard screwdriver, keeping maintenance downtime to a minimum.
