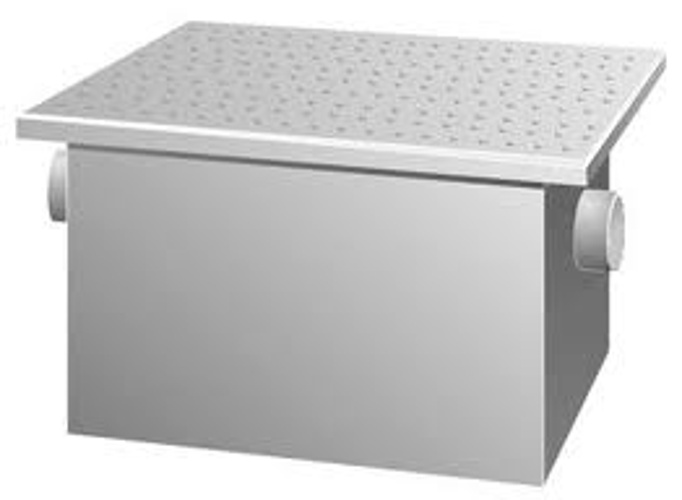

Rockford RP-20 Grease Interceptor – 40 lb Capacity, 20 GPM, 3" No-Hub
Rockford RP-20 — Steel Grease Interceptor for Mid-Size Commercial Kitchen Applications
The Rockford RP-20 is an all-welded steel grease interceptor engineered for mid-size commercial food-service operations with moderate FOG (fats, oils, and grease) discharge. Rated at 20 GPM intermittent flow with 40 lb grease capacity and a 13-gallon static holding volume, it is ideal for restaurants, diners, school kitchens, and multi-fixture sink configurations. Features 3" no-hub inlet and outlet connections — stepping up from the 2" connections of smaller RP models. Certified to PDI-G101 and manufactured in Rockford, IL.
Key Features of the Rockford RP-20
RP-20 Specifications
| Model | RP-20 |
|---|---|
| Grease / Sludge Capacity | 40 lb |
| Flow Rate (Intermittent) | 20 GPM |
| Static Holding Capacity | 13 Gallons |
| Inlet / Outlet | 3" No-Hub |
| Width (Front to Back) | 18.75" |
| Length (Side to Side) | 27" |
| Height (Floor to Top) | 13" |
| Bottom to Center of Inlet | 9.5" |
| Unit Weight | 80 lb |
| Cover Material | 3/16" Nonskid Diamond Tread Plate |
| Body Construction | All-Welded Steel |
| Coating | Enamel (Interior & Exterior) |
| Compliance Standard | PDI-G101 |
| Installation Type | On-Floor or Flush-with-Floor |
| Manufacturer | Rockford Separators, Rockford, IL |
Frequently Asked Questions
What is the grease capacity of the Rockford RP-20?
The RP-20 holds 40 lb of grease and sludge with a 13-gallon static liquid holding capacity. It is designed for mid-size commercial kitchens including restaurants, diners, school kitchens, and multi-fixture sink configurations.
What flow rate does the RP-20 support?
The RP-20 is rated for 20 GPM intermittent flow with 3" no-hub inlet and outlet connections and an integrated flow control device that maximizes grease separation efficiency.
Can the RP-20 be installed flush with the floor?
Yes. The RP-20 supports both on-the-floor and flush-with-the-floor installation. The 3/16" diamond tread plate cover is pedestrian-rated and secured with stainless steel flat-head screws for safe walk-over traffic.
Is the RP-20 PDI-G101 certified?
Confirmed. The RP-20 is certified to the Plumbing & Drainage Institute PDI-G101 standard — ensuring code acceptance with most local plumbing and health authorities across the United States.
What size connections does the RP-20 use?
The RP-20 uses 3" no-hub inlet and outlet connections — larger than the 2" connections found on smaller RP models — making it suitable for mid-size restaurant kitchens and multi-fixture plumbing setups.
What optional upgrades are available for the RP-20?
Rockford offers factory upgrades at additional cost: anchor flange, epoxy coating, stainless steel construction, integral extension, alternate inlet/outlet sizing, aluminum cover, and threaded connections. Contact us for a custom quote.
