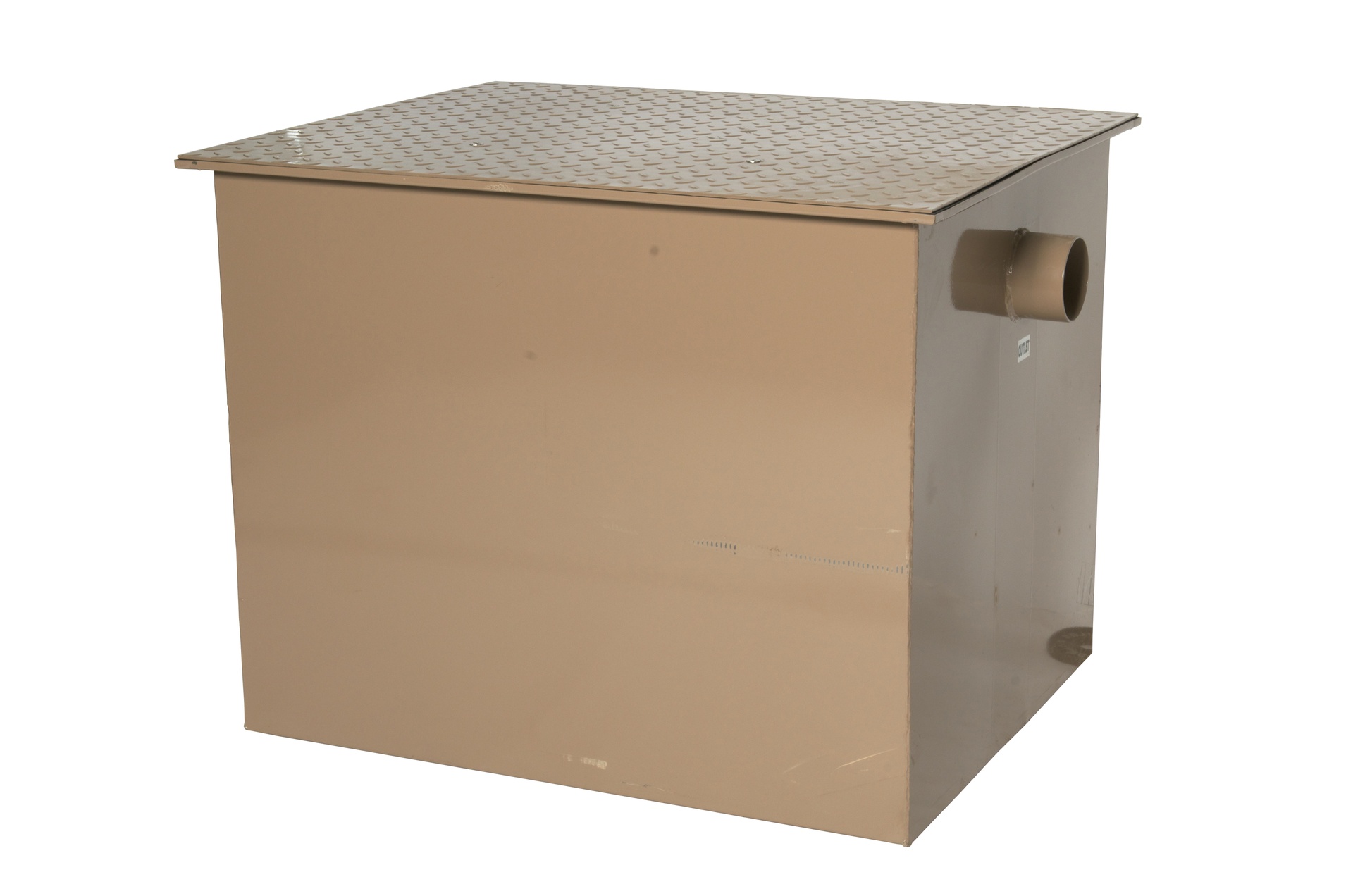

Rockford RP-200 Grease Interceptor – 400 lb Capacity, 200 GPM, 4" No-Hub
Rockford RP-200 — Extra-Large Capacity Steel Grease Interceptor for High-Volume Kitchens
The Rockford RP-200 is a heavy-gauge, all-welded steel grease interceptor built for the most demanding commercial food-service environments. With a 200 GPM intermittent flow rate, 400 lb grease/sludge capacity, and 293-gallon static holding volume, it provides the grease interception power that large restaurants, institutional kitchens, and food processing operations require. Certified to PDI-G101 standards and manufactured in Rockford, IL, the RP-200 installs on-floor or flush with floor — delivering compliance and performance in a single unit.
Key Features of the Rockford RP-200
Six engineering strengths that make the RP-200 the right interceptor when high-volume grease loads demand serious capacity.
All-Welded Steel Construction
Every seam is fully welded — no bolted joints, no flex points. The heavy-gauge steel body handles the weight of 400 lb of accumulated grease and 293 gallons of liquid without distortion or failure.
Dual Installation Modes
The RP-200 is engineered for both on-the-floor and flush-with-the-floor installation, offering flexibility for new builds and retrofit projects without custom fabrication.
Nonskid Diamond Tread Cover
The removable 3/16" diamond tread plate cover is pedestrian-rated and secured with stainless steel flat-head screws, enabling safe walk-over in busy kitchen corridors and simple access for routine cleanout.
Heavy-Duty Leak-Proof Gasket
A precision gasket forms an airtight seal between the cover and the body — blocking grease odors, preventing pest entry, and eliminating seepage that could create slip hazards on the kitchen floor.
Enamel Coating Inside & Out
Interior and exterior enamel coating protects the steel from corrosive kitchen wastewater — fatty acids, detergents, and high-temperature discharge — extending service life well beyond uncoated alternatives.
PDI-G101 Certified
Certified to the Plumbing & Drainage Institute PDI-G101 standard — the recognized benchmark for grease interceptor performance — ensuring code acceptance with most municipal plumbing and health authorities nationwide.
Lift Gate Recommended: The RP-200 ships at approximately 700 lb with pallet. Freight is included in the price, but a lift gate service is required for delivery to most locations and is available as a separate add-on at checkout. Please select lift gate service if your facility does not have a loading dock or forklift access.
Ideal Applications for the RP-200
At 200 GPM and 400 lb grease/sludge capacity, the RP-200 is sized for the highest-output commercial and institutional kitchens.
RP-200 Specifications
| Model | RP-200 |
|---|---|
| Grease / Sludge Capacity | 400 lb |
| Flow Rate (Intermittent) | 200 GPM |
| Static Holding Capacity | 293 Gallons |
| Inlet / Outlet | 4" No-Hub |
| Width (Front to Back) | 42" |
| Length (Side to Side) | 61" |
| Height (Floor to Top) | 40" |
| Bottom to Center of Inlet | 32" |
| Unit Weight | 643 lb |
| Shipping Weight (with pallet) | ~700 lb |
| Cover Material | 3/16" Nonskid Diamond Tread Plate |
| Body Construction | All-Welded Steel |
| Coating | Enamel (Interior & Exterior) |
| Compliance Standard | PDI-G101 |
| Installation Type | On-Floor or Flush-with-Floor |
| Manufacturer | Rockford Separators, Rockford, IL |
Frequently Asked Questions
What is the grease capacity of the Rockford RP-200?
The RP-200 holds 400 lb of grease and sludge with a 293-gallon static liquid holding capacity. This makes it one of the largest on-floor grease interceptors in the Rockford lineup, suitable for the highest-volume commercial kitchens.
Is a lift gate required for delivery of the RP-200?
Yes, a lift gate is strongly recommended. The RP-200 weighs approximately 700 lb with its shipping pallet. Freight is included in the purchase price, but lift gate service must be added separately at checkout. If your facility has a loading dock or forklift, lift gate may not be needed.
Can the RP-200 be installed flush with the floor?
Yes. The RP-200 supports both on-the-floor and flush-with-the-floor installation. The pedestrian-rated diamond tread plate cover is safe for walk-over traffic in either configuration, making it practical for kitchen corridors and service areas.
What size are the inlet and outlet connections?
The RP-200 uses 4" no-hub inlet and outlet connections with an integrated flow control device to regulate the 200 GPM intermittent flow and maximize grease separation efficiency.
What optional upgrades are available for the RP-200?
Rockford offers factory upgrades at additional cost: anchor flange, epoxy coating, full stainless steel construction, integral extension, alternate inlet/outlet sizing, aluminum cover, and threaded connections. Contact us to customize your unit.
Is the RP-200 PDI-G101 certified?
Yes. The RP-200 is certified to the Plumbing & Drainage Institute PDI-G101 standard, the industry benchmark for grease interceptor performance. This certification ensures approval from most local plumbing authorities and health departments across the United States.
