Scotsman Eclipse ECC1410-3 Remote Condenser Unit 208-230V 3 Phase

Free Shipping

Need help with this product?

Mon–Sat 9am–5pm EST

Call us now

Talk to an expert

Quick reply

Description
Specifications

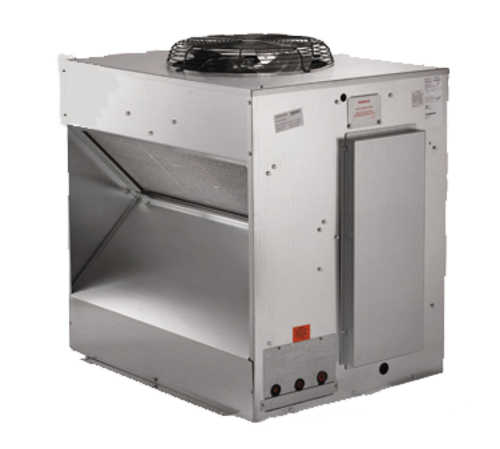

Scotsman ECC1410-3 Remote Condenser Unit

The Scotsman ECC1410-3 is a remote condenser unit designed for use with Prodigy® Eclipse® Ice Makers. It is constructed to efficiently dissipate heat away from the ice machine, which aids in maintaining optimal ice production. The unit is built to operate quietly, making it suitable for dining and working environments. It is capable of functioning in a wide range of outdoor temperatures, from -20°F to 120°F.

Specifications

Weight: 332 lbs
Dimensions: 39.09 x 27.00 x 32.06 inches
Electrical: 208-230/60/3
Maximum Fuse Size: 20 amps
Production Capacity: Up to 1425 lbs/24 hours

-20°F to 120°F Operating Temperature Range

827/375 24 hr Production (90° Air/70° Water)

1030/468 24 hr Production (70° Air/50° Water)

Applications

Supporting ice production in restaurant kitchens
Maintaining ice supply in commercial food service operations
Providing ice for beverage service in bars and cafes
Enhancing ice availability in hotel and hospitality environments

Certifications

cULus Listed

This product has been certified by UL to meet applicable safety standards required for use in the United States and Canada.

From The Manufacturer

Remote Condensing unit for Prodigy® Eclipse® Ice Maker, up to 1425 lb/24 hours production, 208-230/60/3-ph, 9.1 amps, cULus
