Scotsman ERC311-6 Remote Condenser Unit 208-230V

Need help with this product?

Mon–Sat 9am–5pm EST

Description
Specifications

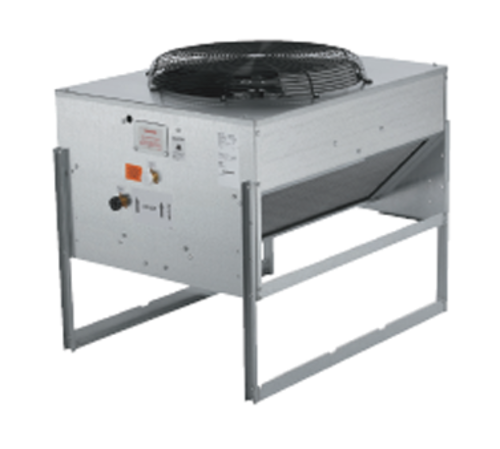

Scotsman ERC311-6 Remote Condenser Unit

The Scotsman ERC311-6 is a remote condenser unit designed for outdoor installation. It operates efficiently within a wide temperature range of -20°F to 120°F. Constructed with heavy gauge galvanized steel, it offers corrosion resistance and durability. The unit features thermally protected fan motors and direct drive fan blades, which help dissipate heat away from the ice machine, minimizing the air conditioning load.

Specifications

Weight: 130.00 lbs
Dimensions: 30.00 x 39.00 x 29.00 in
Voltage: 208-230/60/1
Amperage: 1.25 amps
Material: Galvanized steel

-20°F to 120°F Temperature Range

Thermally Protected Fan Motors

Galvanized Steel Construction Material

Applications

Supporting ice production in commercial kitchens
Maintaining optimal temperatures in food service operations
Reducing heat load in restaurant environments
Outdoor installation for ice machine systems

From The Manufacturer

Condenser Unit, Remote Refrigeration, designed for outdoor installation, temperature range -20°F to 120°F, galvanized finish, 230v/50/1-ph, 2.6 amps, use with MC1030SR & C1030SR (Export Model, 50hz version)
