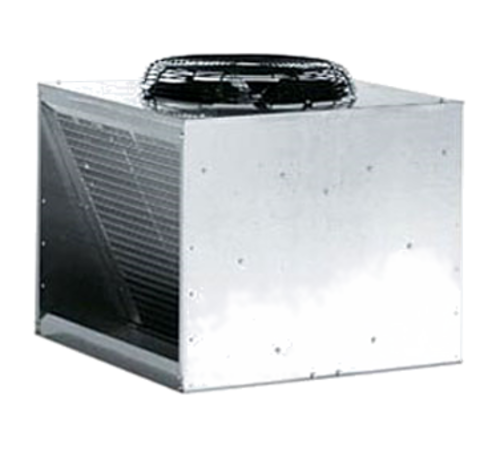

Scotsman ERC611-32 Remote Condenser Unit

The Scotsman ERC611-32 is a remote condenser unit designed for outdoor installation. It operates efficiently within a wide temperature range of -20°F to 120°F. Constructed with heavy gauge galvanized steel, it offers corrosion resistance and durability. The unit features thermally protected fan motors and direct drive fan blades, which help dissipate heat away from the connected ice machine, minimizing the load on air conditioning systems.

Specifications

Weight: 140.00 lbs
Dimensions: 30.00 x 39.00 x 38.00 in
Voltage: 208-230v/60/1-ph
Amperage: 3.8 amps
Discharge Line Connection: 5/8”

Operates in a wide outdoor temperature range from -20°F to 120°F.

Applications

Supporting ice production in restaurant kitchens
Cooling systems for commercial food service operations
Outdoor installation for large-scale ice machines

Certifications

cULus Listed

This product has been certified by UL to meet applicable safety standards required for use in the United States and Canada.

From The Manufacturer

Condenser Unit, Remote Refrigeration, designed for outdoor installation, temperature range -20°F to 120°F, galvanized finish, 208-230v/60/1-ph, 3.8 amps, use with MC1848xR, MC2148xR, C1848xR, C2148xR, F2330R, & N2030R, cULus
