Manitowoc SFA292 Touchless Ice and Water Dispenser 180 lb Storage for 22" or 30" Ice Machines ADA Compliant Ice Machine Sold Separately

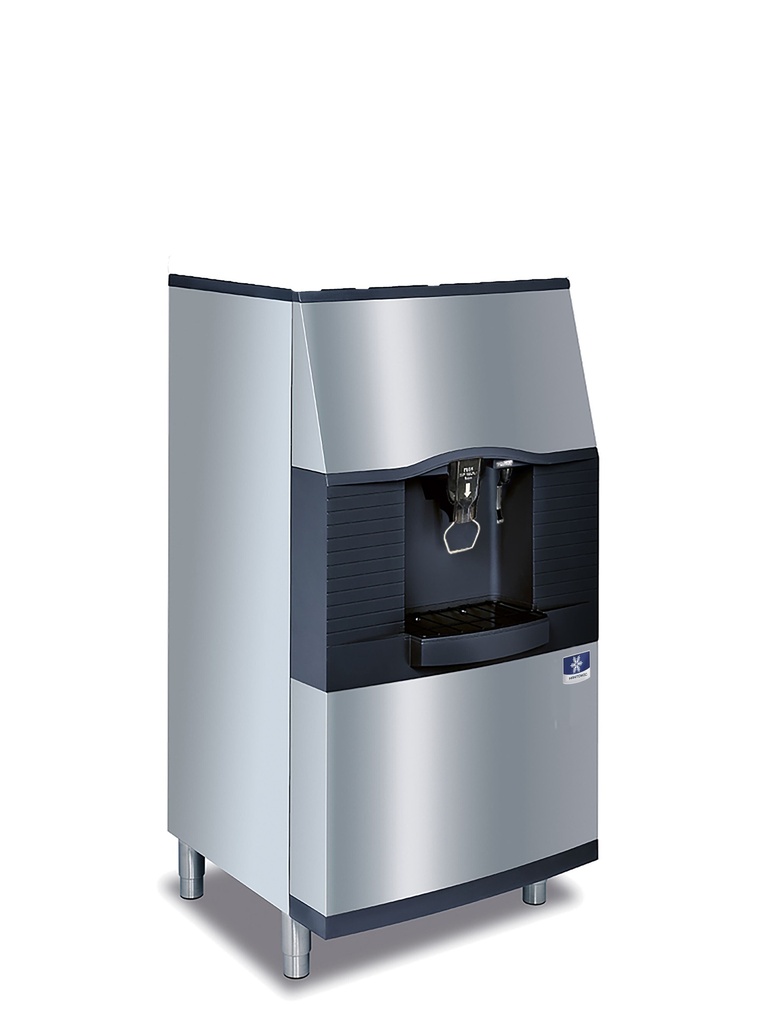

Manitowoc SFA292 — 180 lb Touchless Ice & Water Dispenser for 22" or 30" Ice Machines
The Manitowoc SFA292 is the 30"-wide ice-and-water dispenser in Manitowoc's touchless line, built for busy hotels, hospitals and campuses that need both a deep ice supply and drinking water at one self-serve point. It stores 180 lbs. (82 kg) of ice, adds a built-in water valve next to the chute, and accepts a single 22" or 30" wide Manitowoc ice machine on top. Ice is released by a touchless lever that the bucket or glass presses, not a hand, while a built-in agitator delivers 100% dispensing and an oversized drain pan catches overflow. The DuraTech stainless exterior resists fingerprints and corrosion, and the unit is ADA compliant; this listing is for the dispenser only and the ice machine is ordered separately.
Key Features of the SFA292
The SFA292 combines the largest touchless bin in the line with a water valve, so one cabinet replaces a separate ice dispenser and water fountain.
Built-In Water Valve
A water valve beside the ice chute fills glasses and bottles with drinking water at the same station, with its own water inlet on the dispenser.
180 lb Ice Storage
Holds 180 lbs. (82 kg) of ice, 50% more than the 22" SFA192, for busy floors and long evening peaks.
Touchless Lever Activation
The bucket or glass presses the lever to release ice, not a hand, reducing cross-contamination at a shared station.
Accepts 22" or 30" Ice Machines
Recommended with iT0300, iT0450, iT0500 or iT0750 machines; a 22" machine fits with the K-00365 adapter and K-00348 baffle.
Built-In Agitator, 100% Dispensing
A permanently lubricated 1.6-amp agitator motor keeps the full 180 lb. of ice loose so the bin empties completely.
ADA Compliant, DuraTech Built
ADA compliant with 9.5" (24.13 cm) grate-to-chute clearance, in clear-coated DuraTech stainless with an oversized drain pan.
Ice machine not included: the SFA292 is sold as a dispenser only. Order a 22" or 30" wide Manitowoc ice machine separately; a 22" machine on this 30" dispenser also requires the K-00365 adapter and K-00348 baffle. Plan a potable water line to the dispenser's water inlet for the built-in water valve, and follow the clearance requirements of the ice machine being installed.
Ideal Applications
High-traffic self-serve locations that need a large ice supply and drinking water from one station.
Optional Accessories
Manitowoc lists these accessories for the SFA292 and the ice machine it supports; each is sold separately.
SFA292 Specifications
| Model | Manitowoc SFA292 (SFA-292) |
|---|---|
| Type | Floor-model touchless ice dispenser with built-in water valve |
| What's Included | Dispenser only; ice machine sold separately |
| Ice Storage Capacity | 180 lbs. (82 kg) |
| Compatible Ice Machines | Single 22" or 30" wide Manitowoc machine; recommended iT0300, iT0450, iT0500, iT0750 (dice or half-dice) |
| 22" Machine Mounting | Requires K-00365 adapter and K-00348 baffle |
| Width | 30" (76.2 cm) |
| Depth | 32" (81.28 cm) |
| Dispenser Height | 60.5" (54.5" cabinet on 6" legs) |
| Height with Ice Machine | 82" (208.28 cm) with a 21.5" tall machine |
| Grate-to-Chute Clearance | 9.5" (24.13 cm) |
| Activation | Touchless lever for ice; built-in water valve |
| Dispenser Electrical | 115/60/1 (230/50/1 also available) |
| Maximum Fuse Size | 15 amps (HACR-type breakers acceptable) |
| Power Cord | 6', 16-3, NEMA 5-15P plug |
| Agitator Motor | 1.6 amps max, permanently lubricated |
| Drain | 1/2" F.P.T. melting tray pan drain; 13" floor to drain with 6" legs |
| Exterior | DuraTech stainless with clear-coat finish |
| Accessibility | ADA compliant |
| Warranty | 3 years parts & labor on dispenser components |
Frequently Asked Questions
Does the Manitowoc SFA292 come with an ice machine?
No. The SFA292 is the dispenser only. A 22" or 30" wide Manitowoc ice machine is ordered separately and mounted on top.
Does the SFA292 dispense water as well as ice?
Yes. It has a built-in water valve next to the touchless ice chute and needs a potable water connection to the dispenser's water inlet.
Can I put a 22" ice machine on the SFA292?
Yes, but a 22" machine on this 30" dispenser requires the K-00365 adapter and K-00348 baffle, both sold separately.

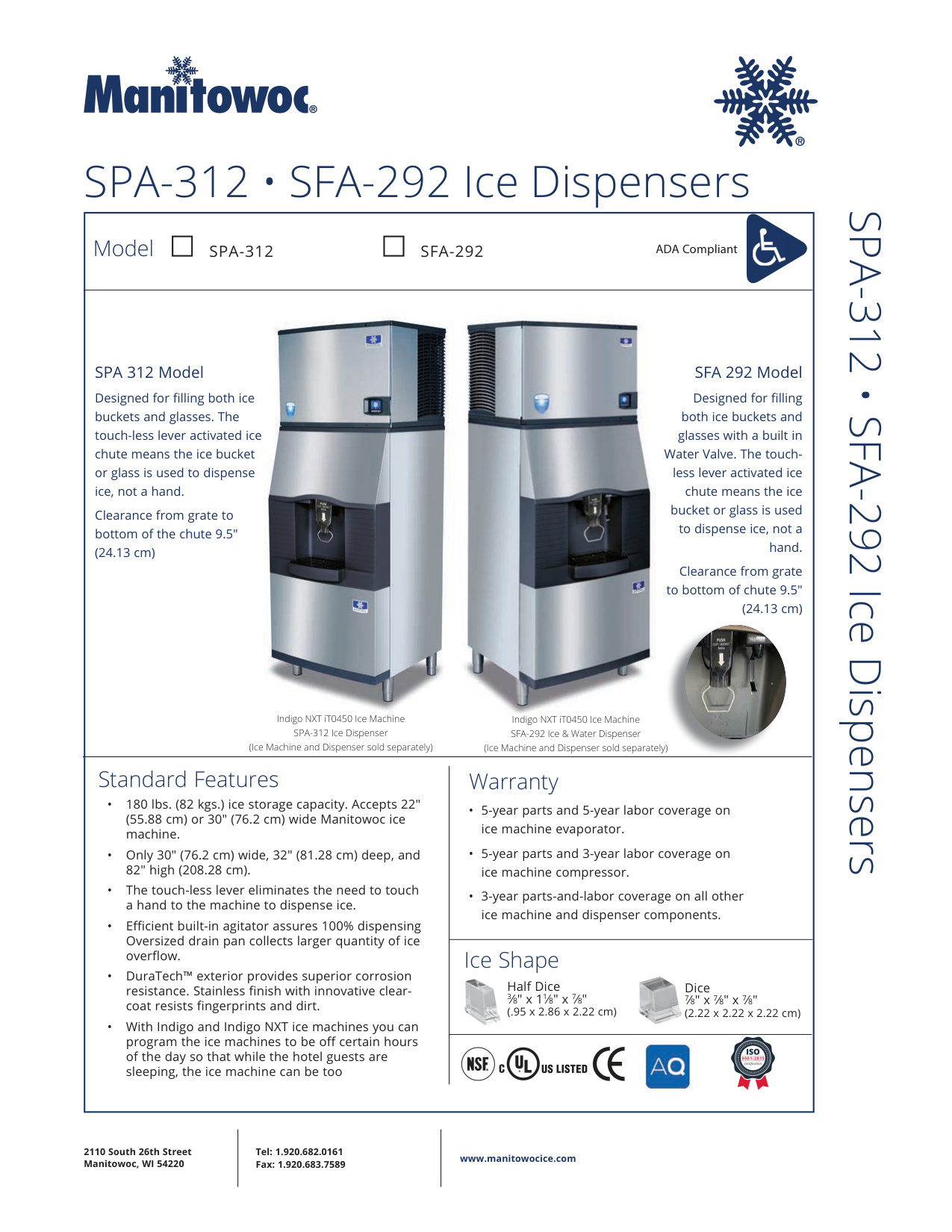

What is the difference between the SFA292 and the SPA312?
Both share the 30" cabinet and 180 lb. of storage. The SPA312 dispenses ice only, while the SFA292 adds the built-in water valve.
How tall is the SFA292 with an ice machine?
The dispenser is 30" wide and 32" deep, and stands 82" (208.28 cm) high with a 21.5" tall ice machine mounted on top.
What electrical connection does the SFA292 need?
The dispenser runs on 115/60/1 with a 15-amp maximum fuse and ships with a 6' cord and NEMA 5-15P plug. The ice machine has its own separate electrical requirements.
